Brake Warning Light Circuit
CIRCUIT DESCRIPTIONThe BRAKE warning light lights up when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

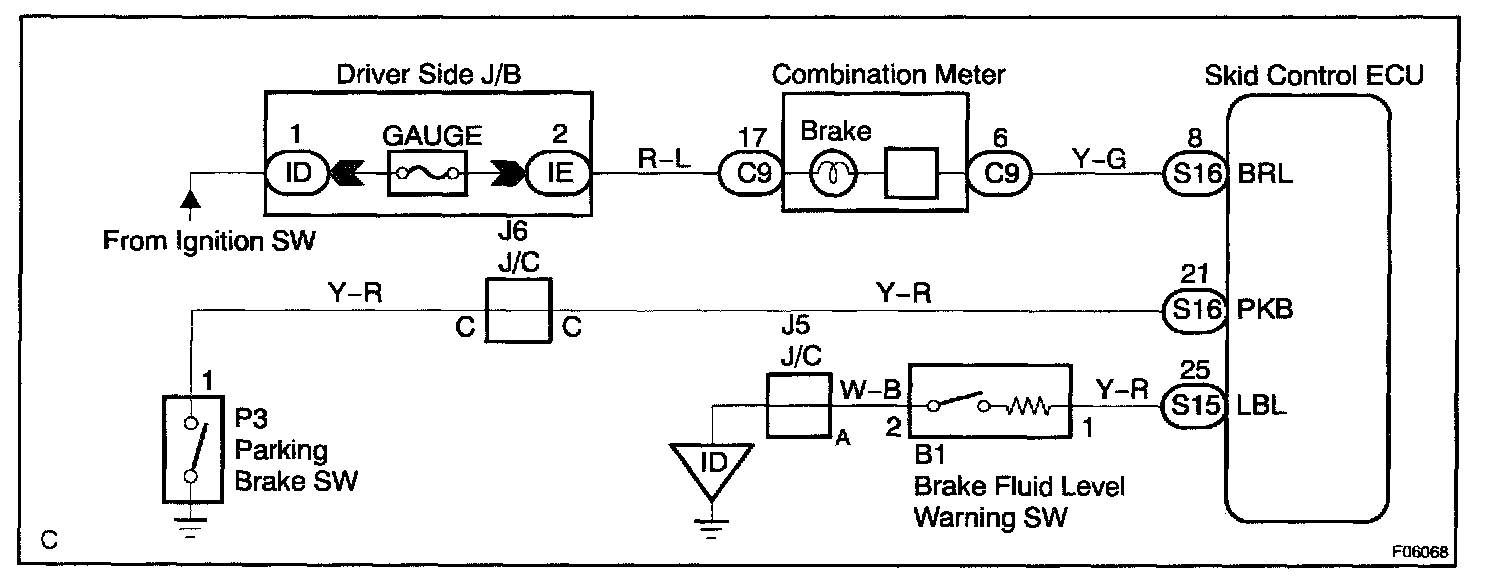

Wiring Diagram:

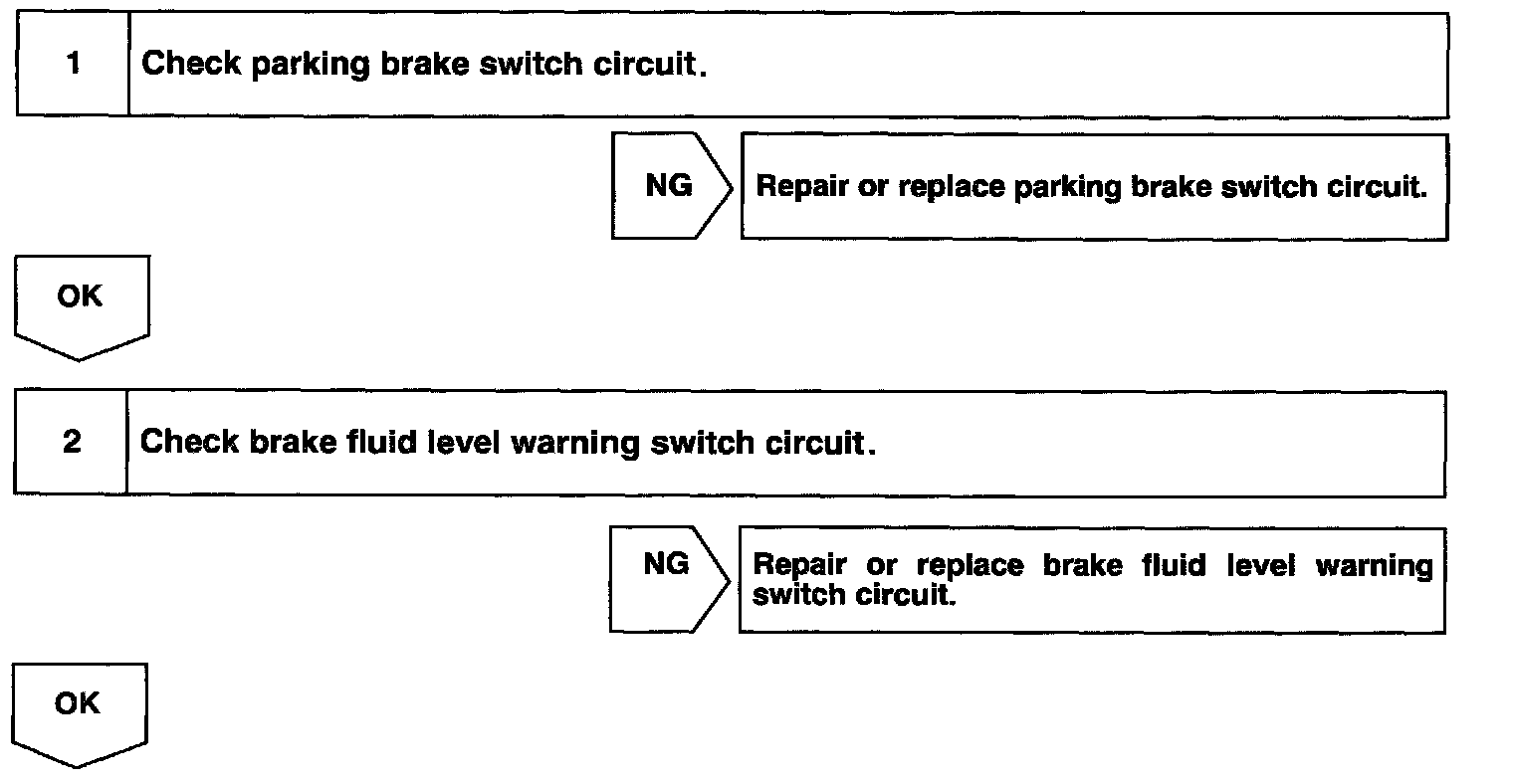

Step 1 - 2:

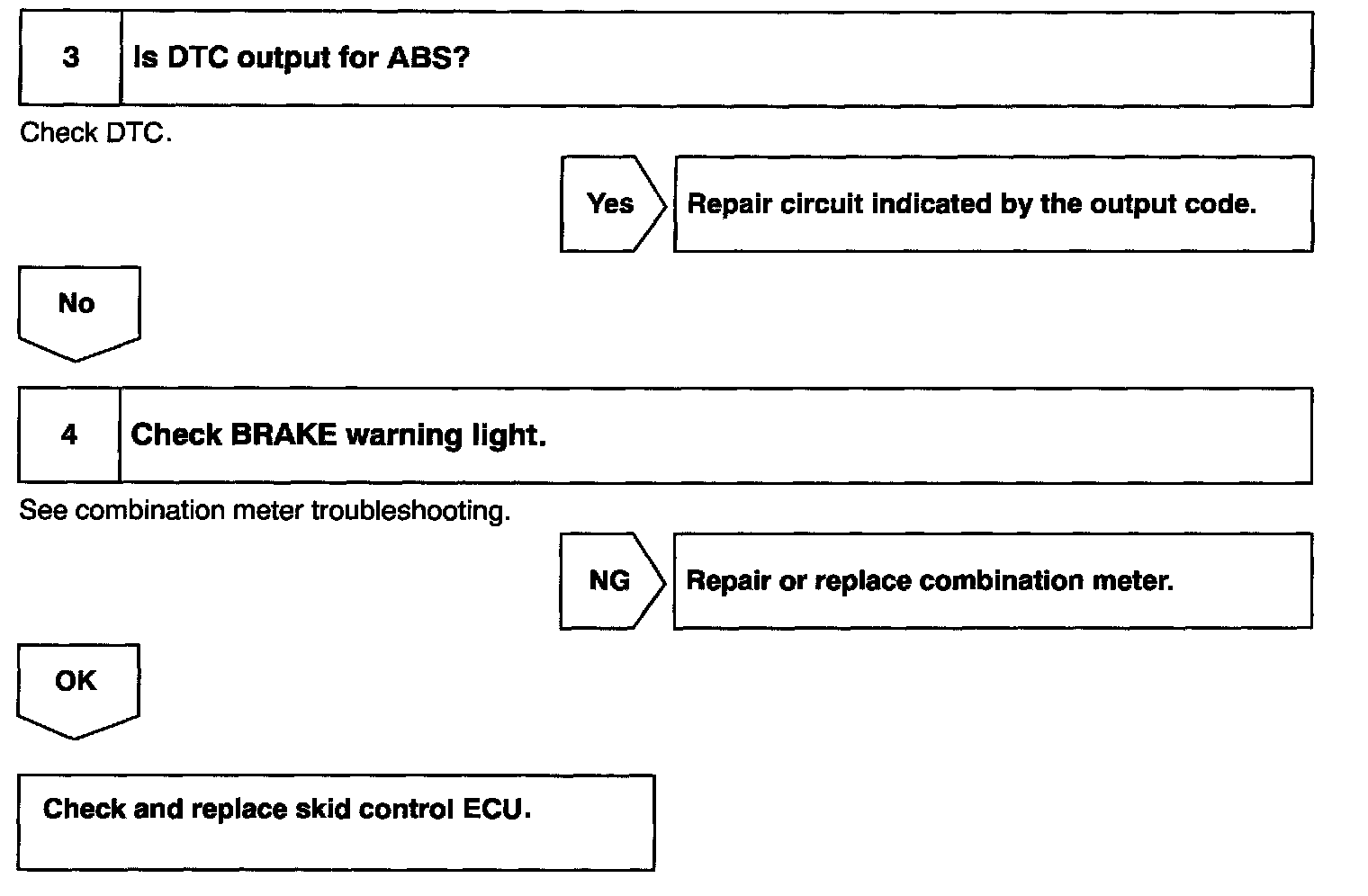

Step 3 - 4:
INSPECTION PROCEDURE
The BRAKE warning light lights up when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.
INSPECTION PROCEDURE
