Back Door Courtesy Switch Circuit

CIRCUIT DESCRIPTION

The back door courtesy switch goes on when back door is opened and goes off when back door is closed.

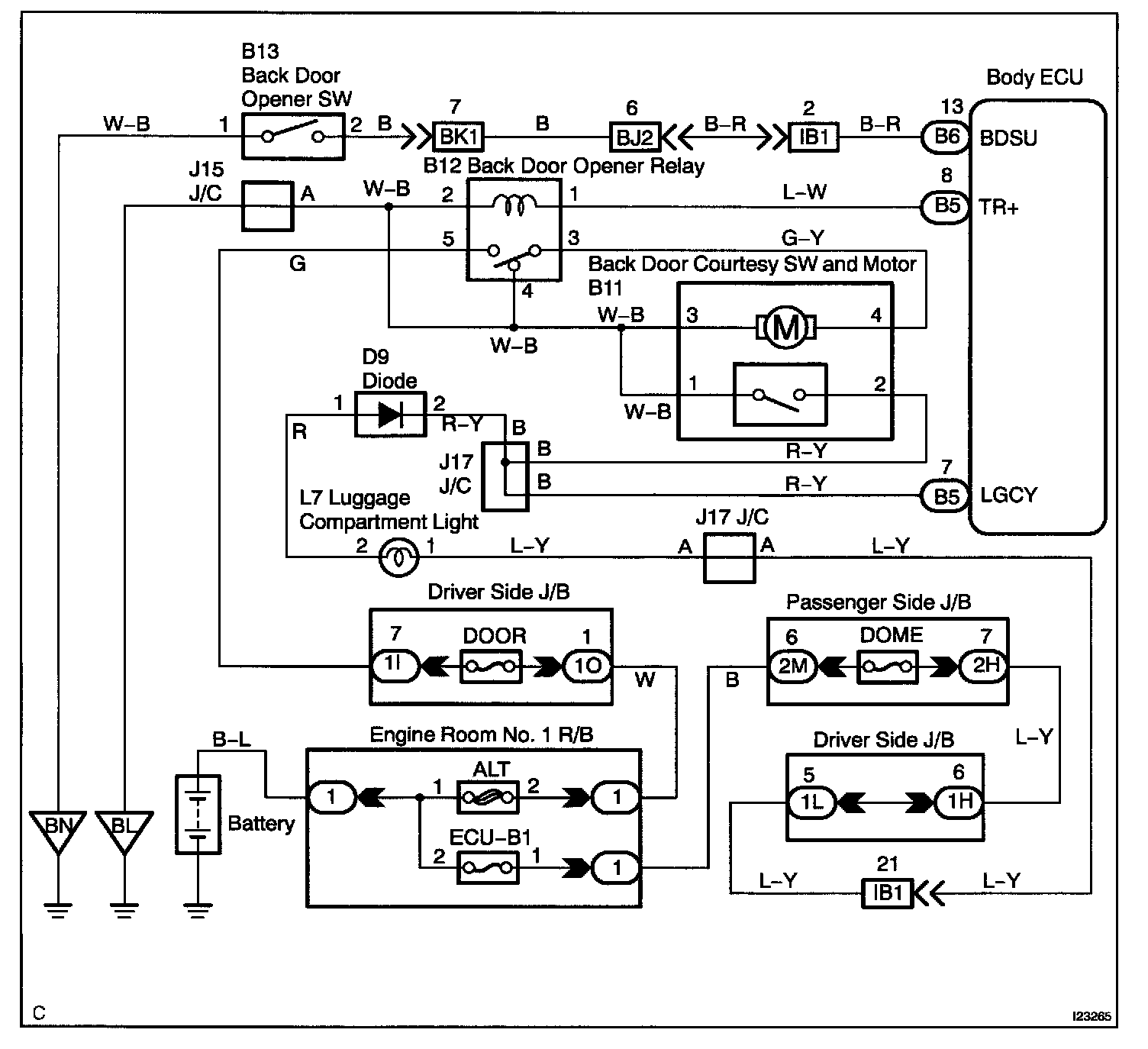

Wiring Diagram:

Step 1 - 3:

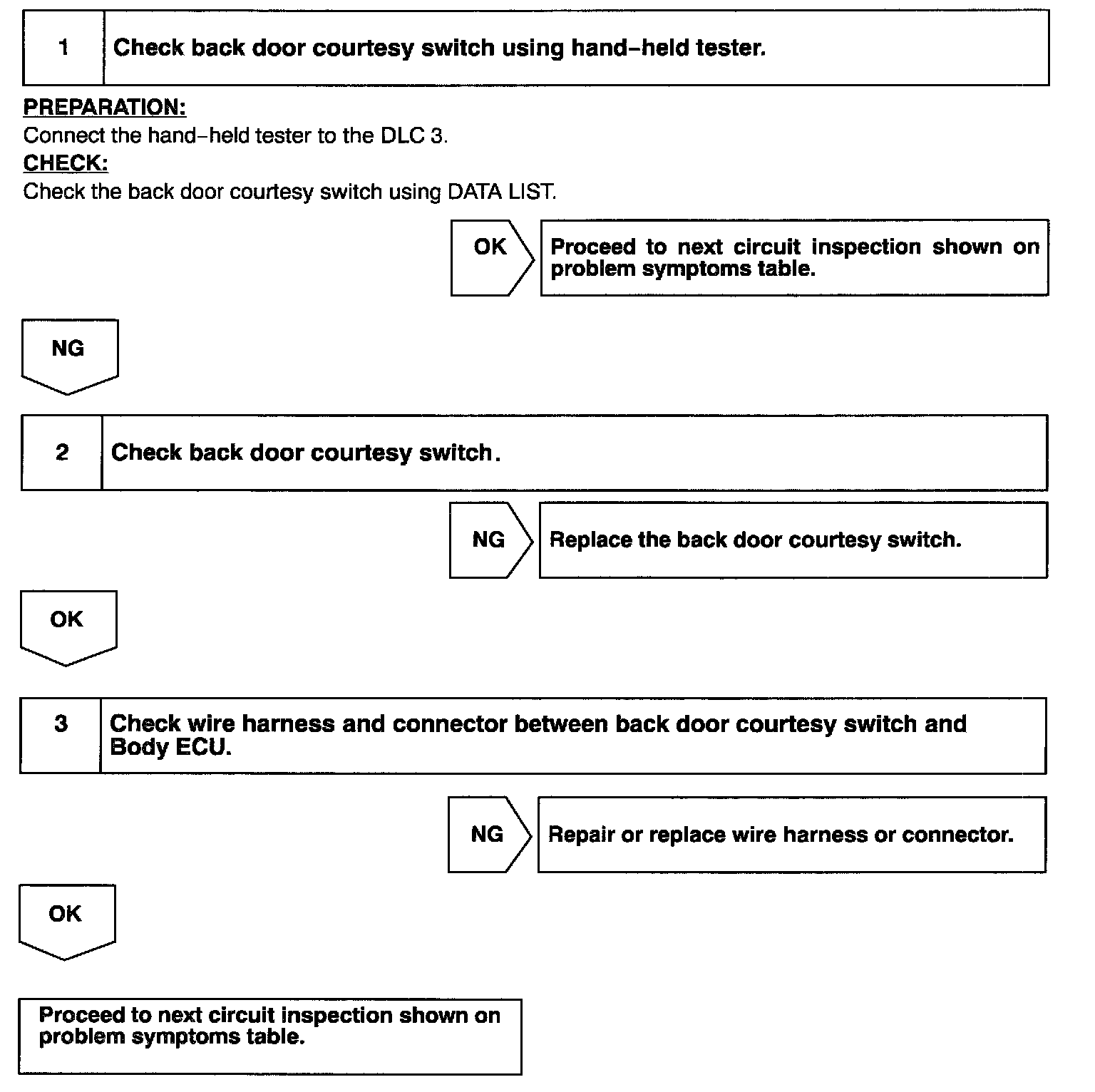

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
