Pinout Values and Diagnostic Parameters

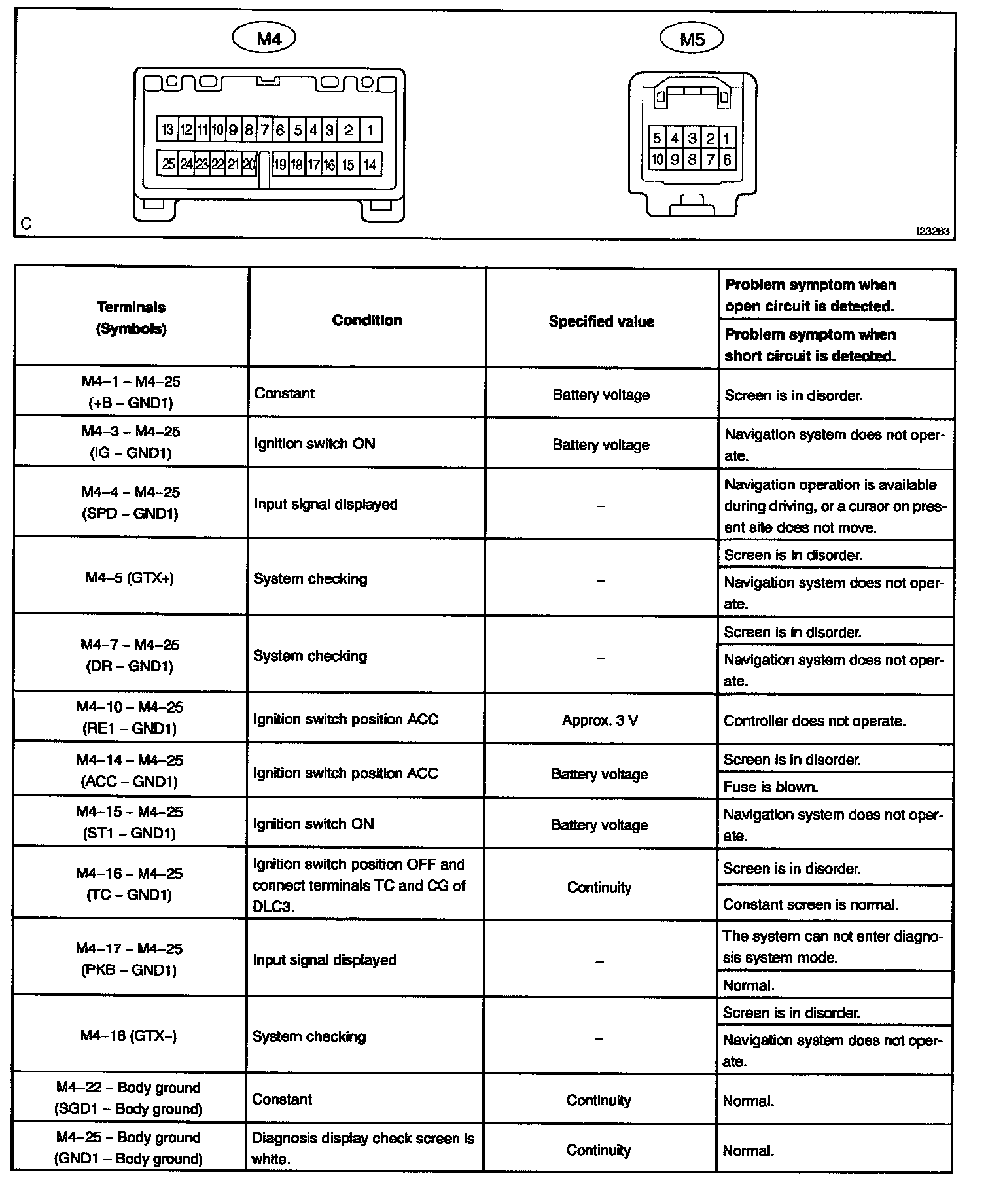

Terminals Of ECU / Pinouts - Multi Display Part 1:

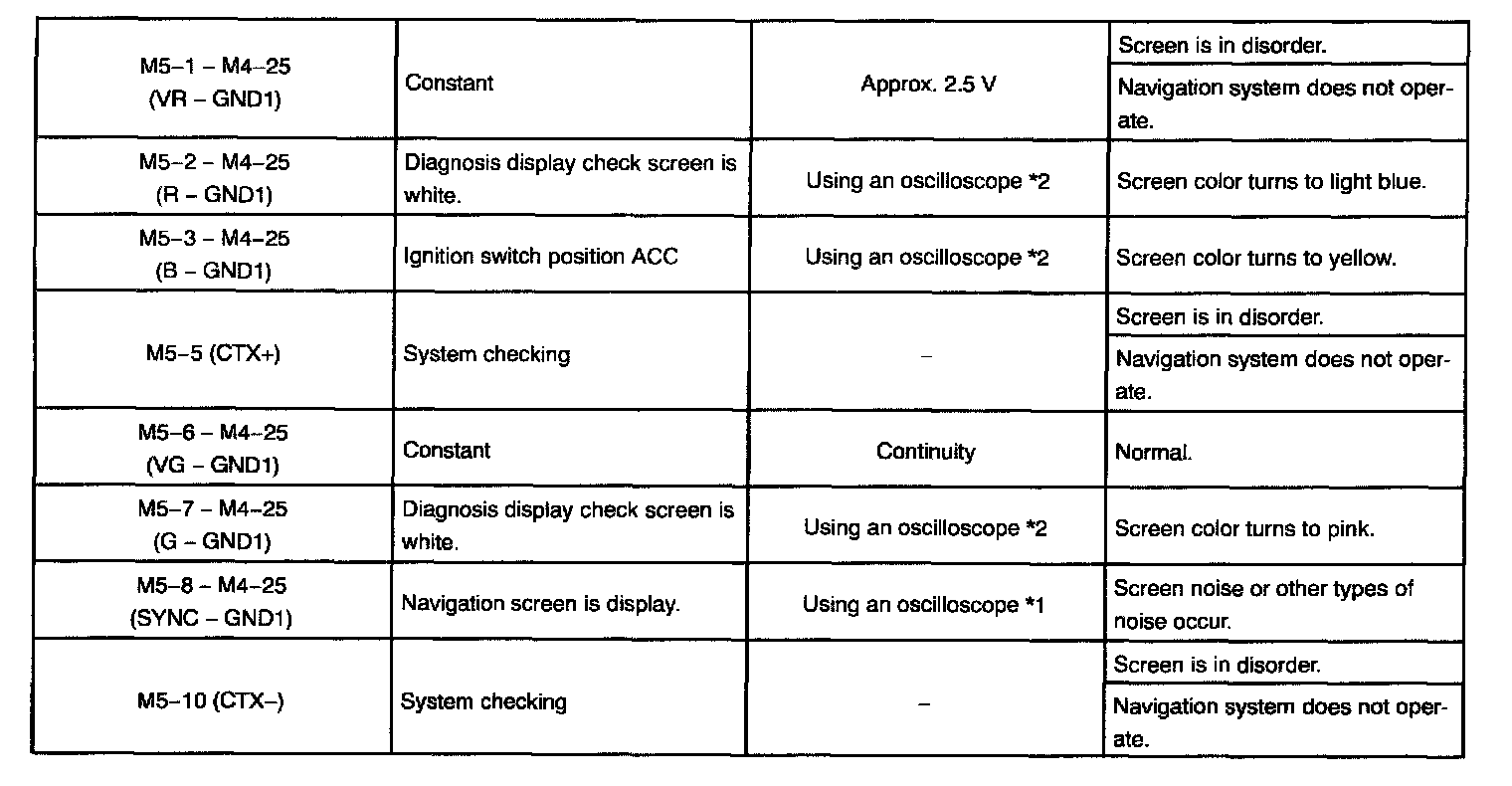

Terminals Of ECU / Pinouts - Multi Display Part 2:

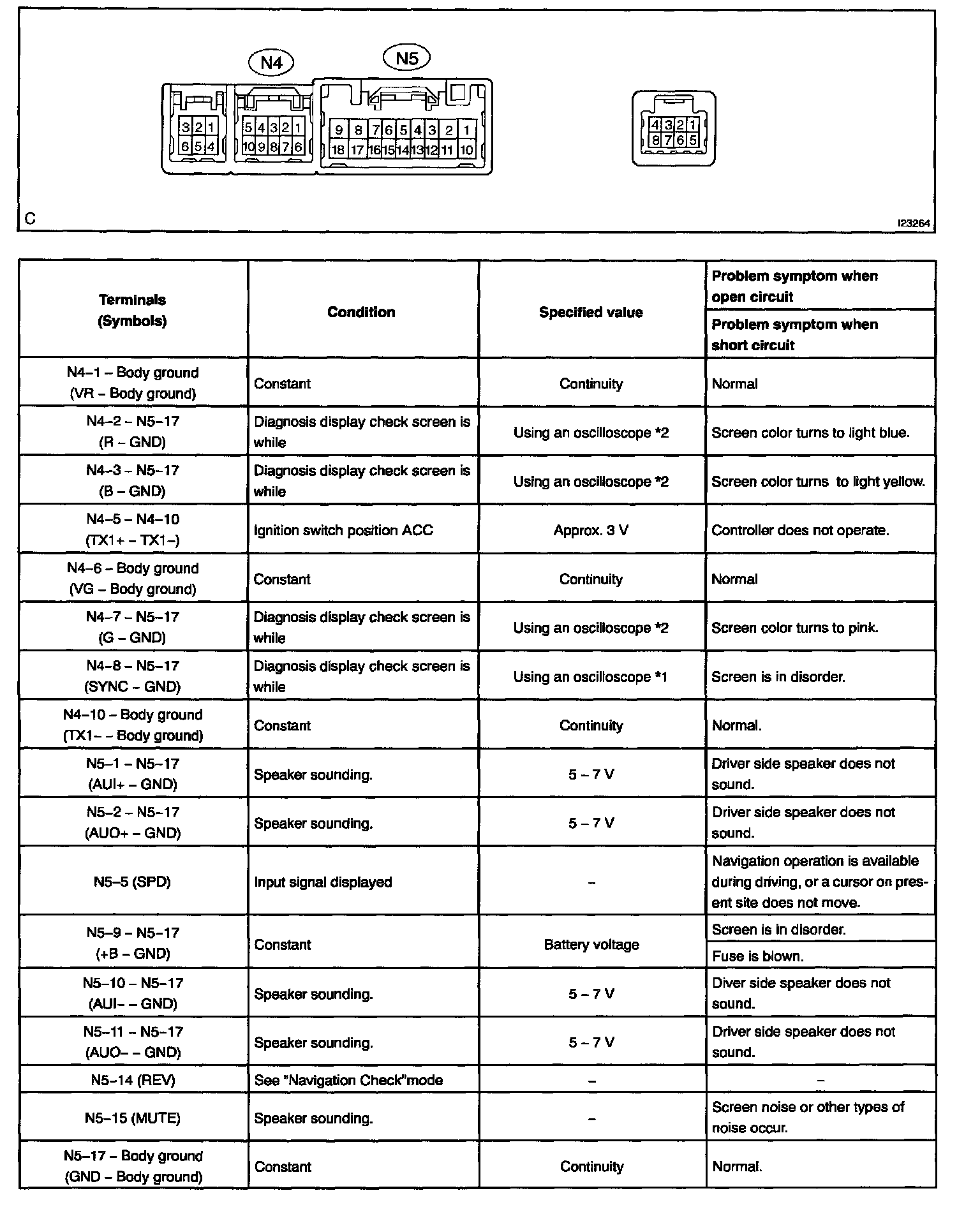

Terminals Of ECU - Navigation ECU Part 1:
