Home >> Lexus >> 2003 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Theft Deterrent System >> Terminals of ECU

Terminals of ECU

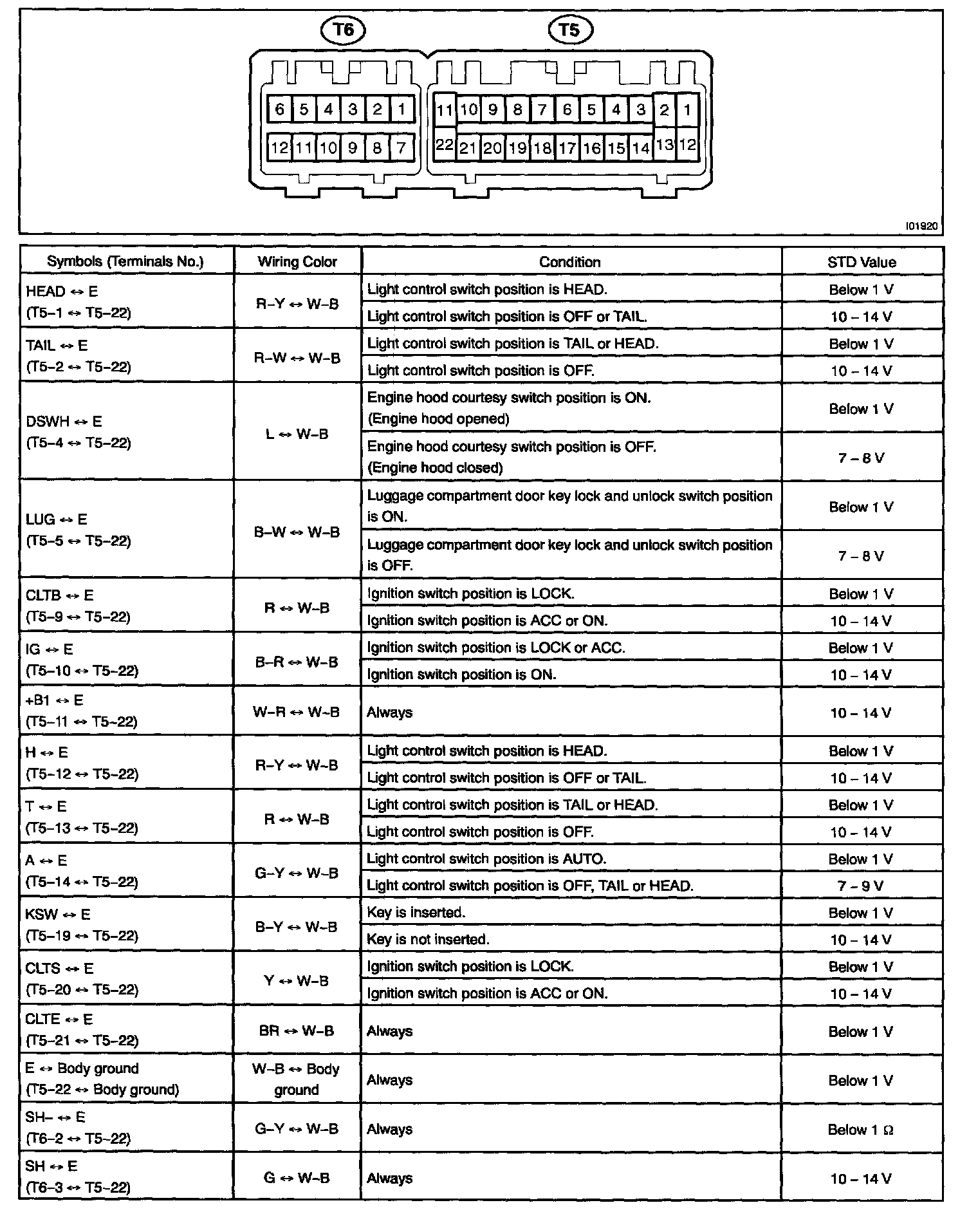

Terminals Of ECU / Pinouts Part 1:

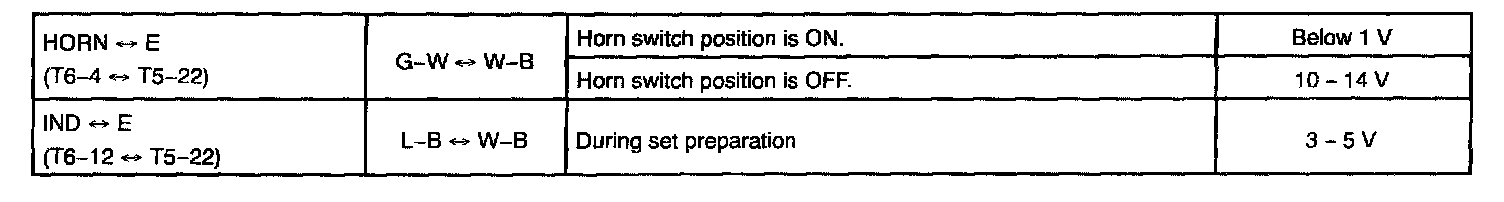

Terminals Of ECU / Pinouts Part 2:
