DTC P0724 Brake Switch "B" Circuit High

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The purpose of this circuit is to prevent the engine from stalling, while driving in lock-up condition, when brakes are suddenly applied.

When the brake pedal is depressed, this switch sends a signal to ECM. Then the ECM cancels operation of the lock-up clutch while braking is in progress.

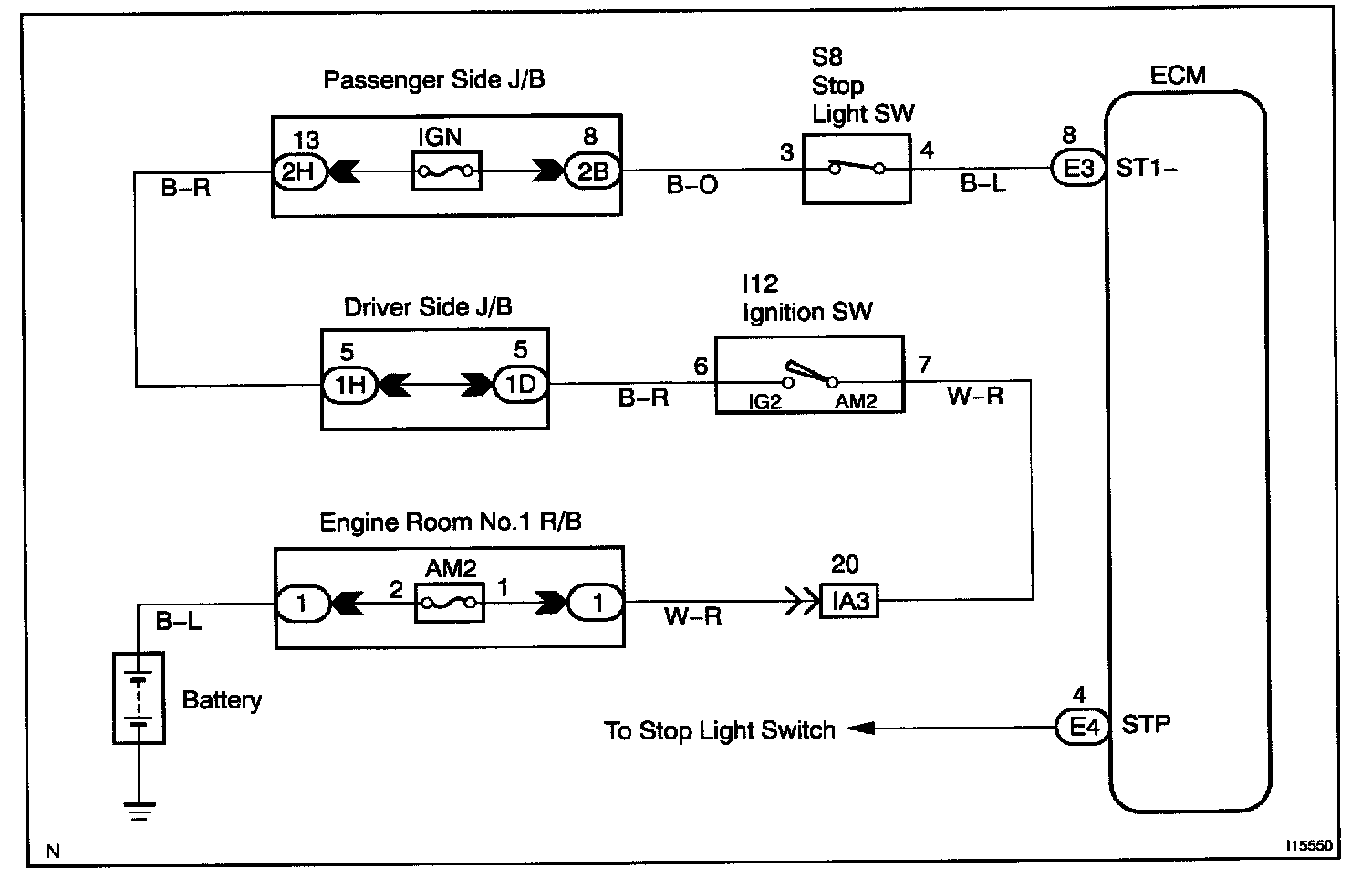

Wiring Diagram:

Step 1 - 2:

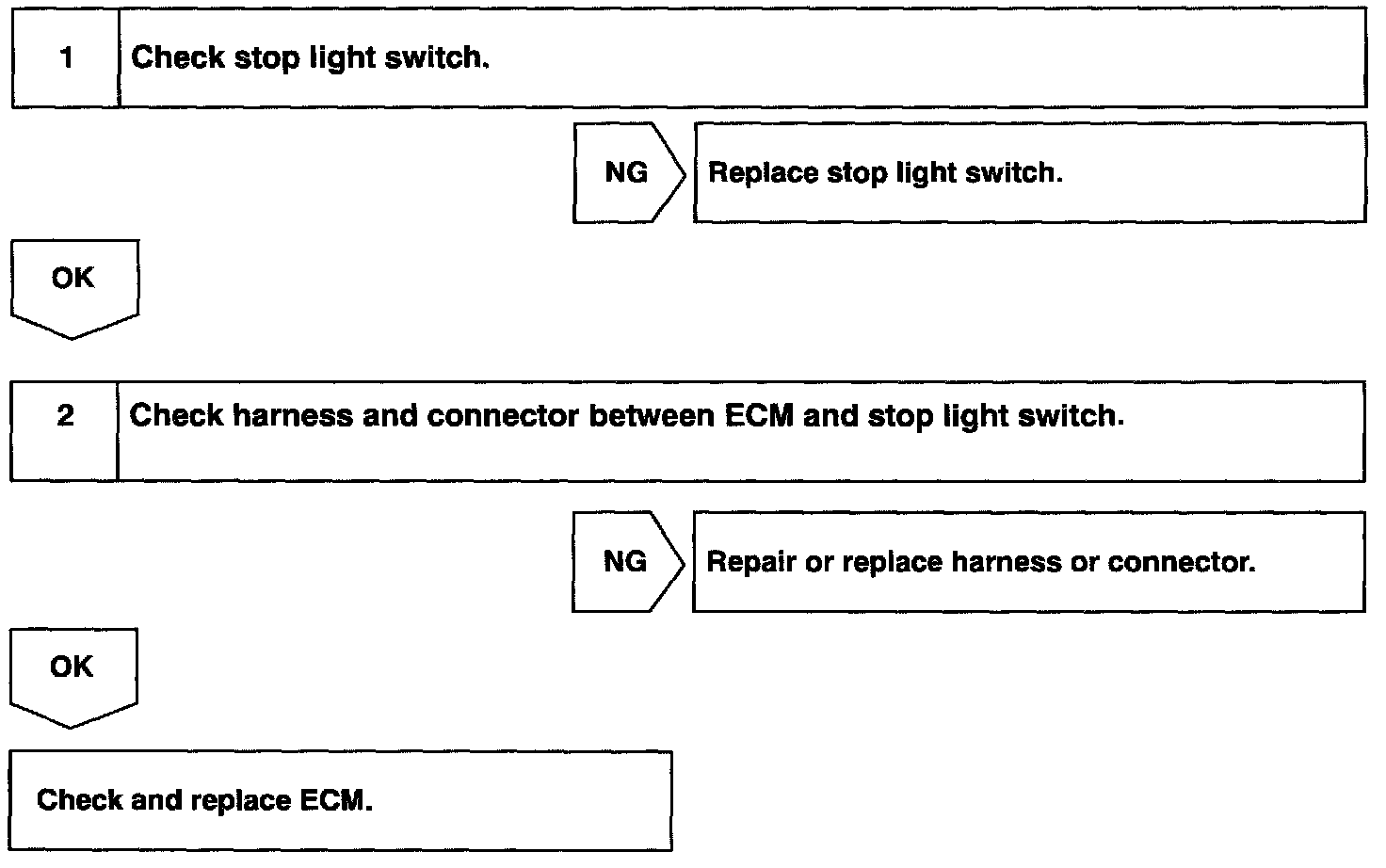

INSPECTION PROCEDURE
