Home >> Lexus >> 2003 >> GS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Specifications >> Electrical Specifications

Electrical Specifications

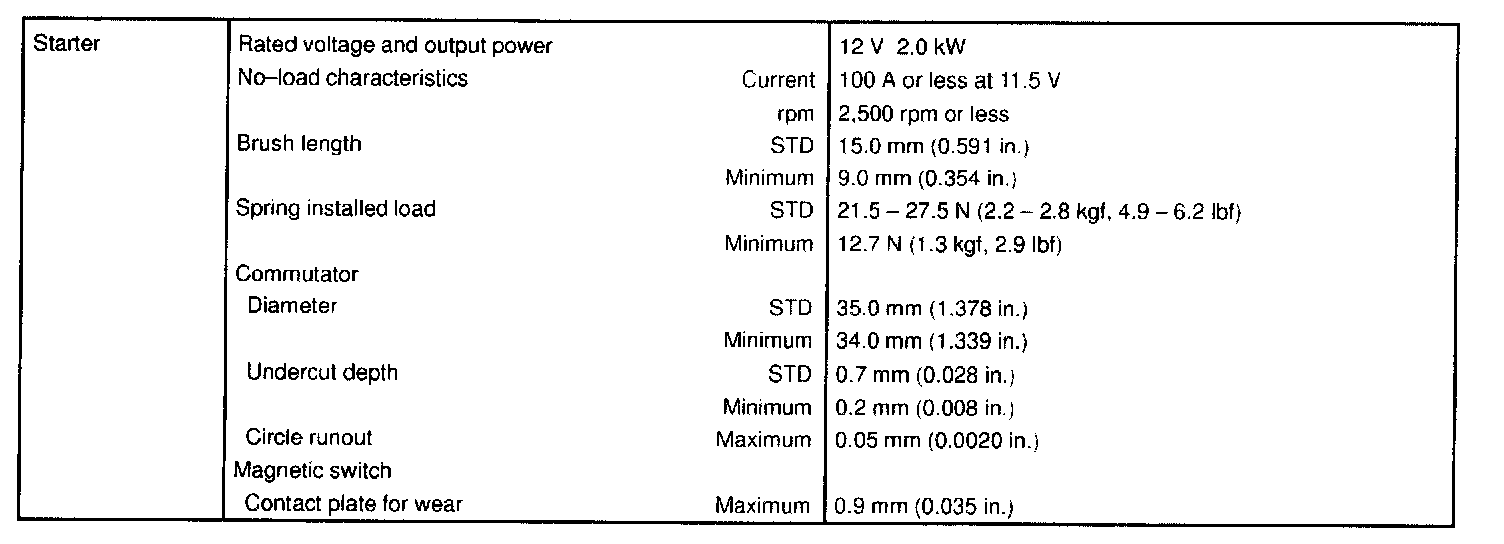

Starting (3UZ-FE) - Service Data:

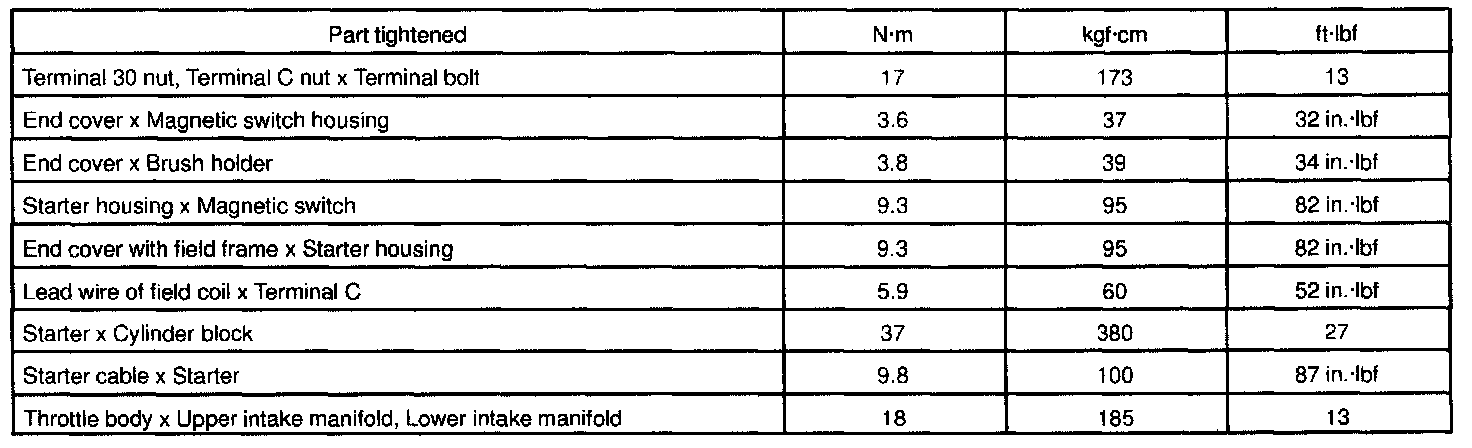

Starting (3UZ-FE) - Torque Specification:
