Transmission Installation

INSTALLATION





1. CHECK TORQUE CONVERTER CLUTCH INSTALLATION

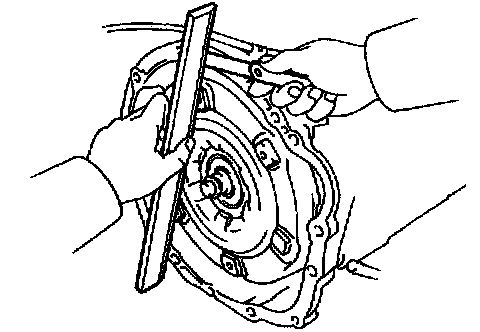

Using calipers and a straight edge, measure from the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.
Correct distance: More than 0.1 mm (0.004 inch)
If the distance is less than the standard, check for an improper installation.
2. INSTALL TRANSMISSION
Installation is in the reverse order of removal.

HINT: After installation, check and inspect items as follows.
^ Adjust the shift lever position.
^ Fill ATF and check fluid level.
^ Do the road test.
