Tilt and Telescopic Manual Switch Circuit

CIRCUIT DESCRIPTION

The different voltage signals which are occurred by operating the manual switch are sent to the tilt and telescopic ECU.

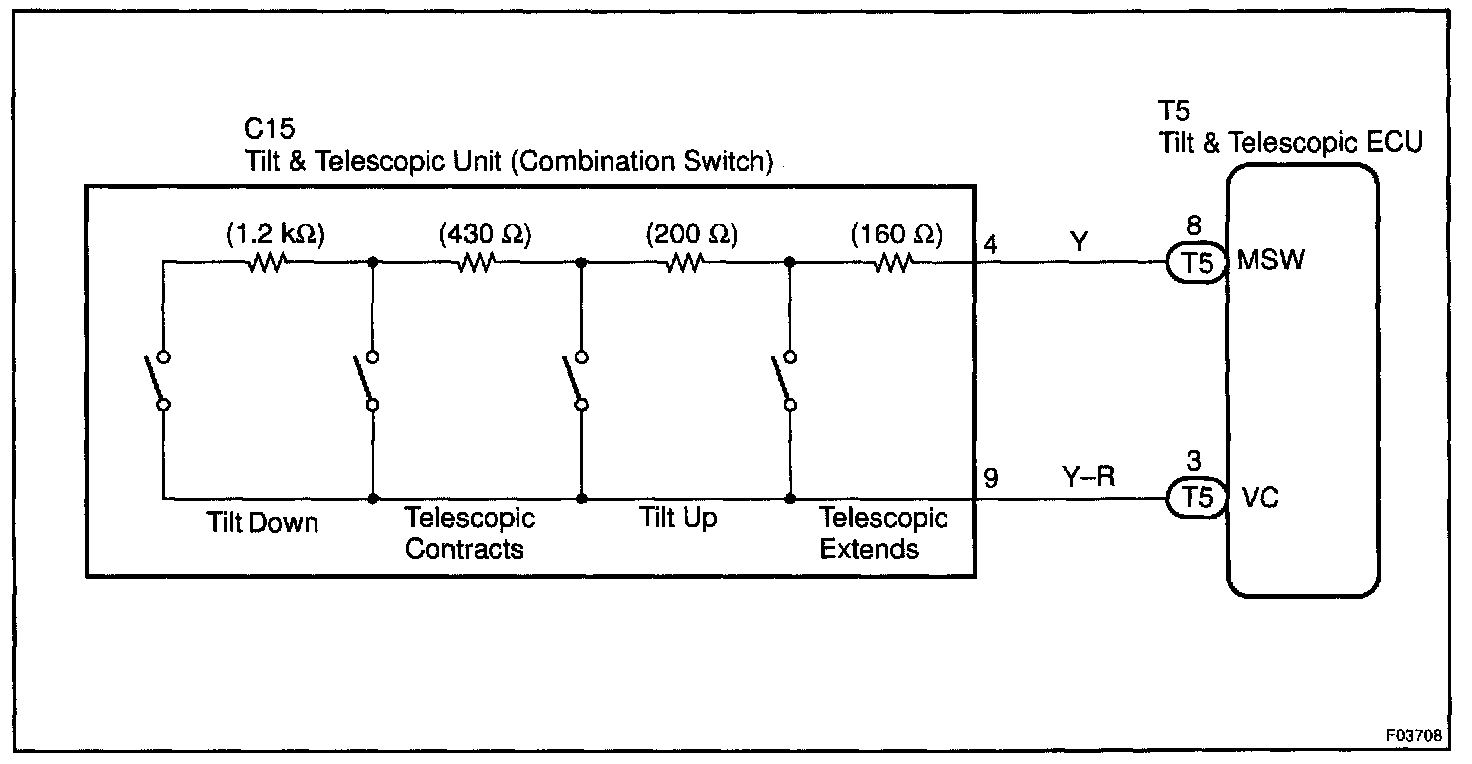

Wiring Diagram:

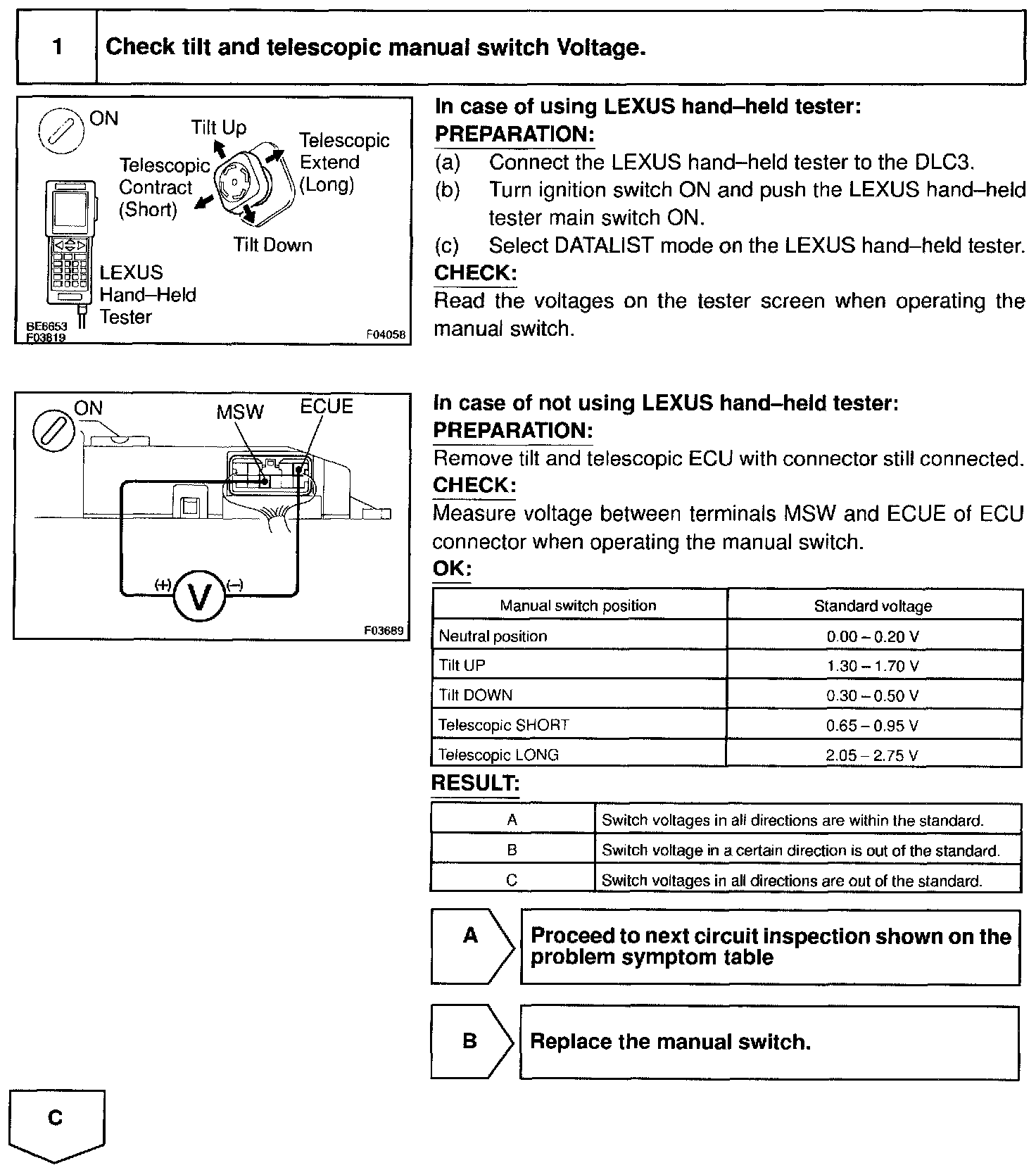

Step 1:

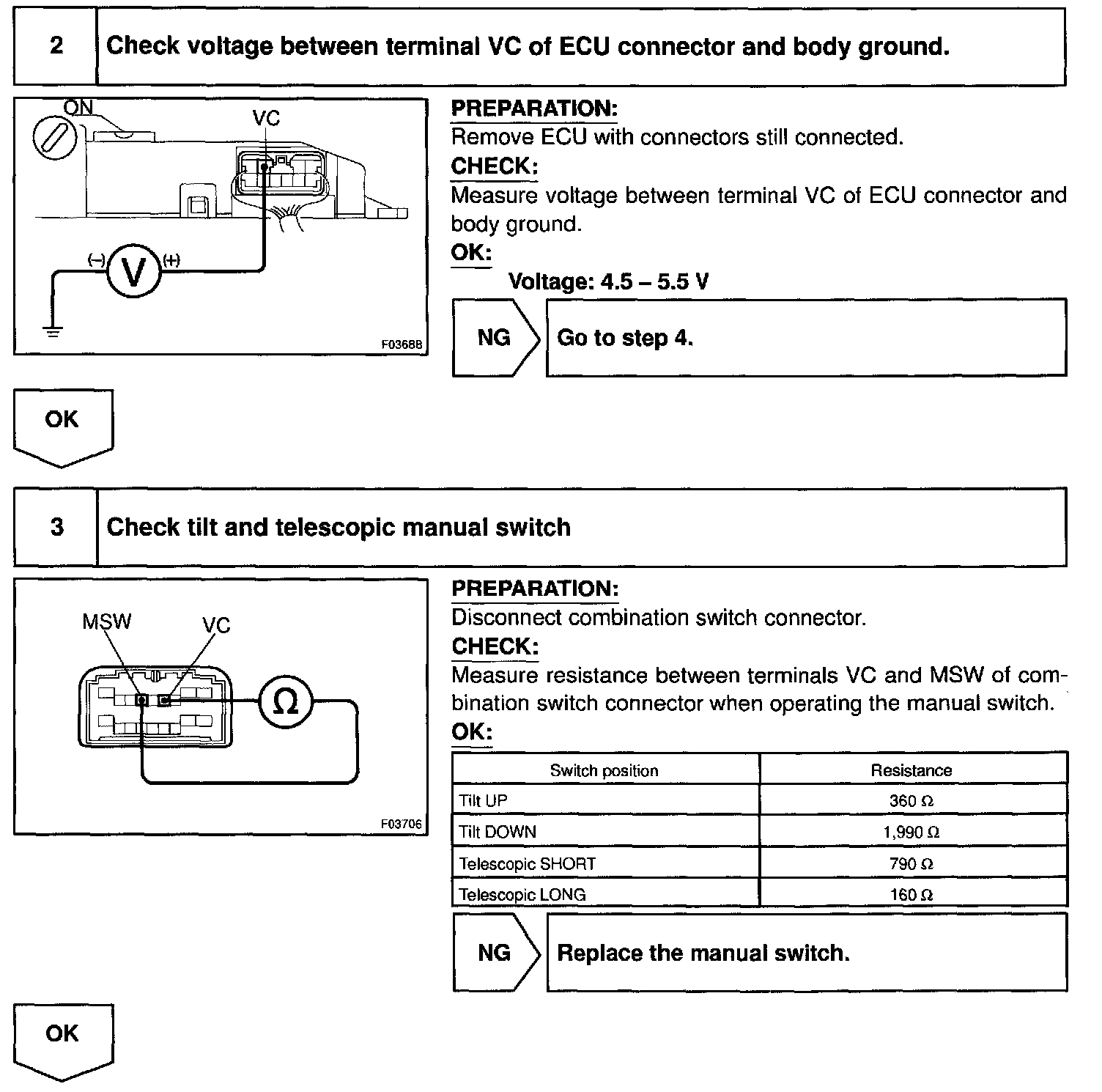

Step 2 - 3:

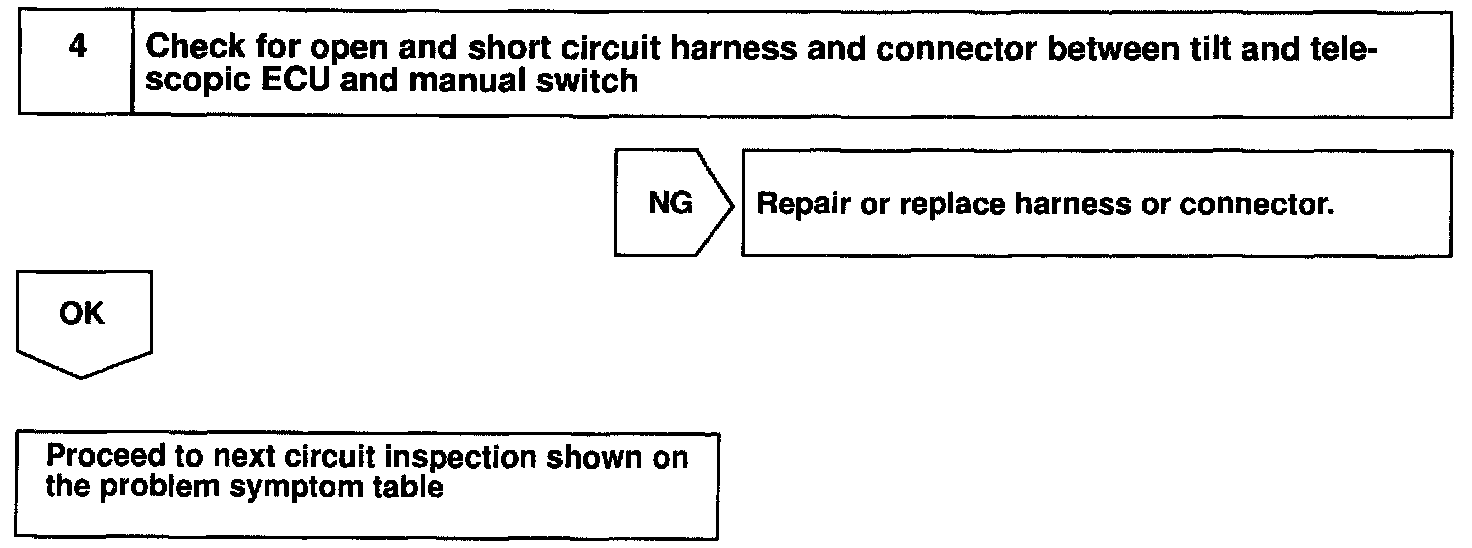

Step 4:

INSPECTION PROCEDURE
