Fuel Line Coupler: Service and Repair

FUEL SUPPLY




a. Observe these precautions when connecting the fuel tube connector (quick type):
1. Check if there is any damage or foreign objects on the connected part of the pipe.

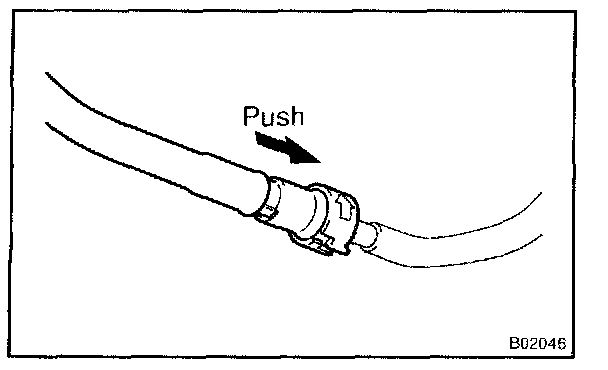

2. Match the axis of the connector with axis of the pipe, and push in the connector until the connector makes a "click" sound. In case the connections is tight, apply little amount of new engine oil on the tip of the pipe.

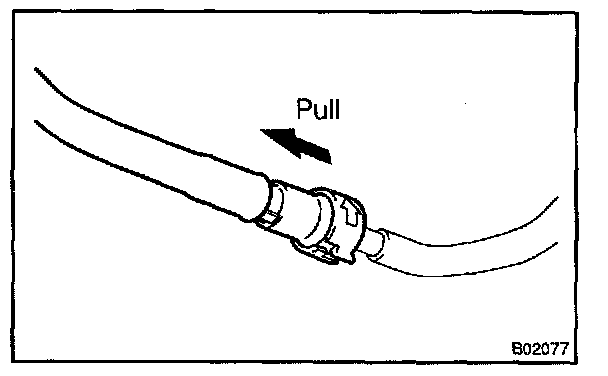

3. After having finished the connection, check if the pipe and the connector are securely connected by pulling them.
4. Check if there is any fuel leakage.

b. Observe these precautions when handling nylon tube.
1. Pay attention not to turn the connected part of the nylon tube and quick connector with force when connecting them.
2. Pay attention not to kink the nylon tube.
3. Do not remove the EPDM protector on the outside of the nylon tube.
4. Must not close the piping with the nylon tube by bending it.
