Active Test

ACTIVE TEST

HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.

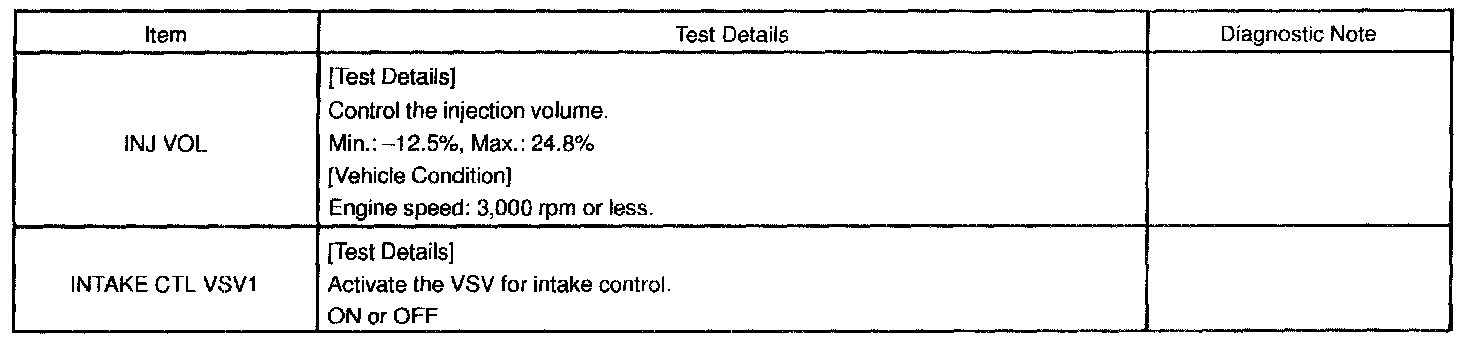

Part 1:

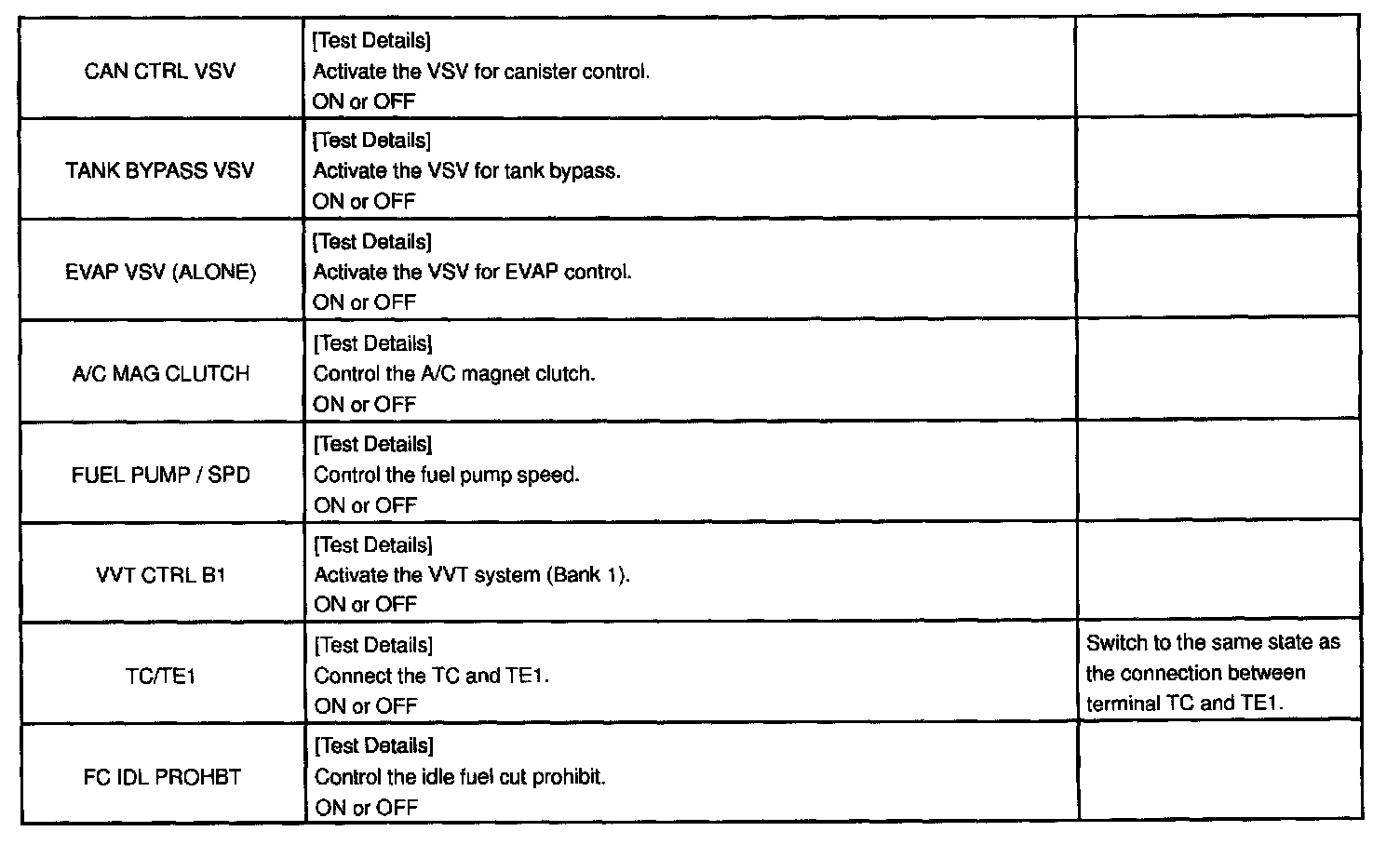

Part 2:

It is possible to display the DATA LIST during the ACTIVE TEST.
a. Warm up the engine.
b. Turn the ignition switch OFF
c. Connect the hand-held tester to the DLC3.
d. Turn the ignition switch ON.
e. According to the display on tester, perform the "ACTIVE TEST".
