Fail-Safe Operation
Fail-Safe Operation
FAIL-SAFE CHART

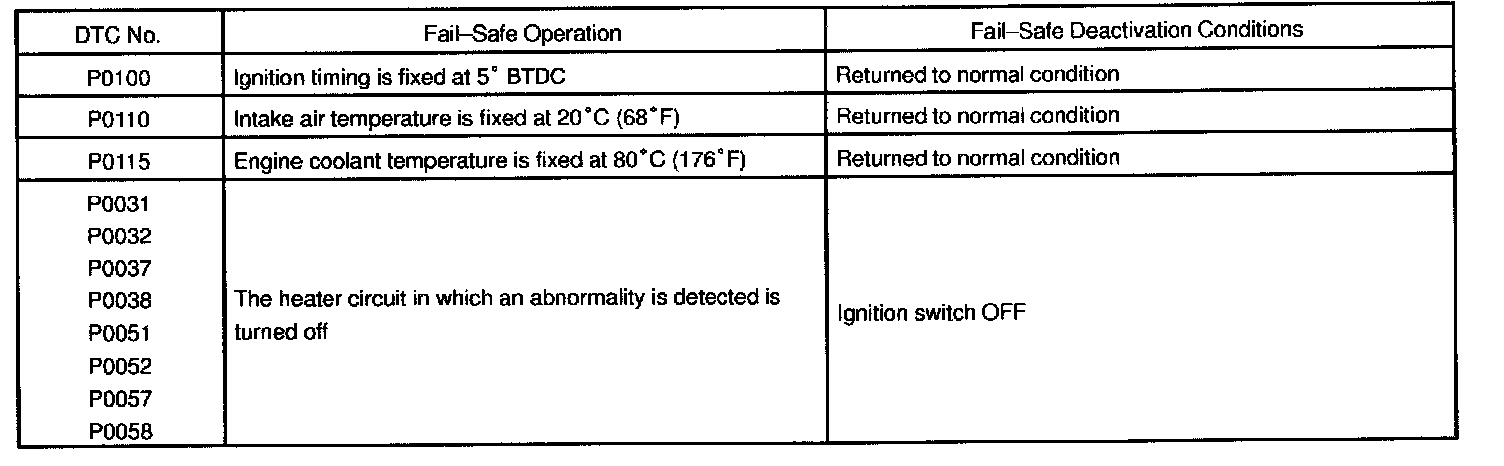

P0100 - P0058:

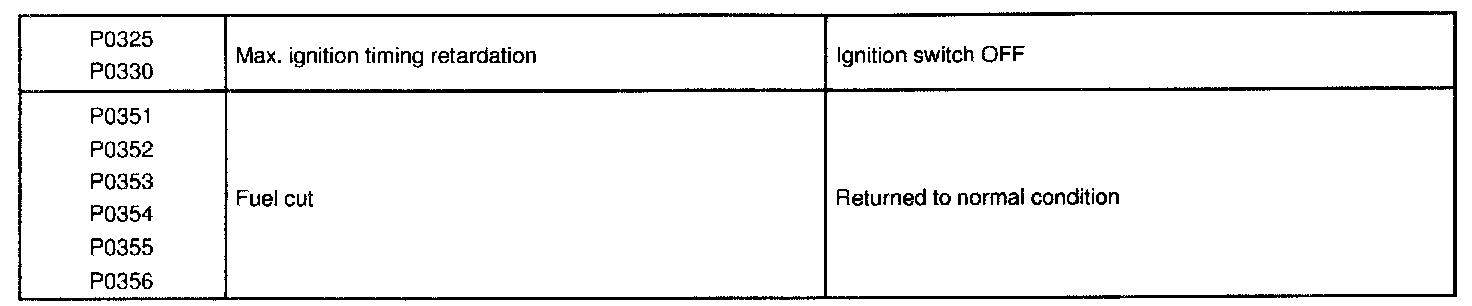

P0325 - P0356:
If any of the codes is recorded, the ECM enters into the fail-safe mode.
