IACV Control Circuit

CIRCUIT DESCRIPTION

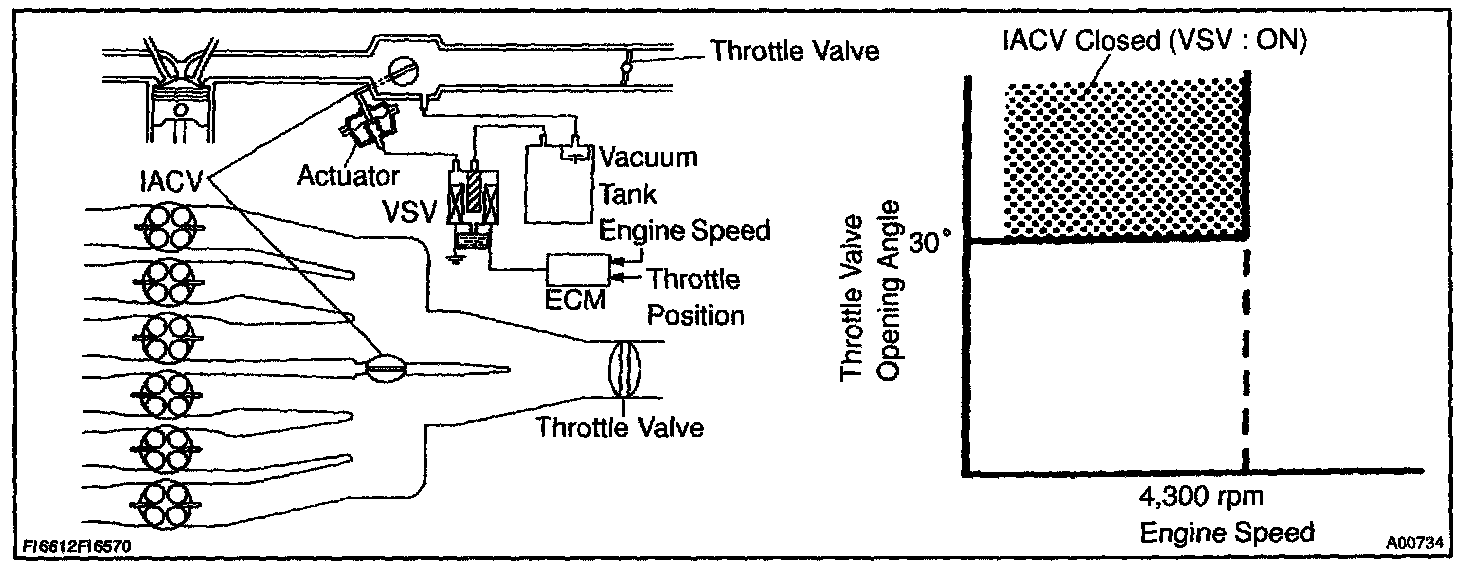

This circuit opens and closes the Intake Air Control Valve (IACV) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).

When the engine speed is 4,300 rpm or less and the throttle valve opening angle is 30° or more, the ECM turns the VSV ON and closes the IACV. At all other times, the VSV is OFF, so the IACV is open.

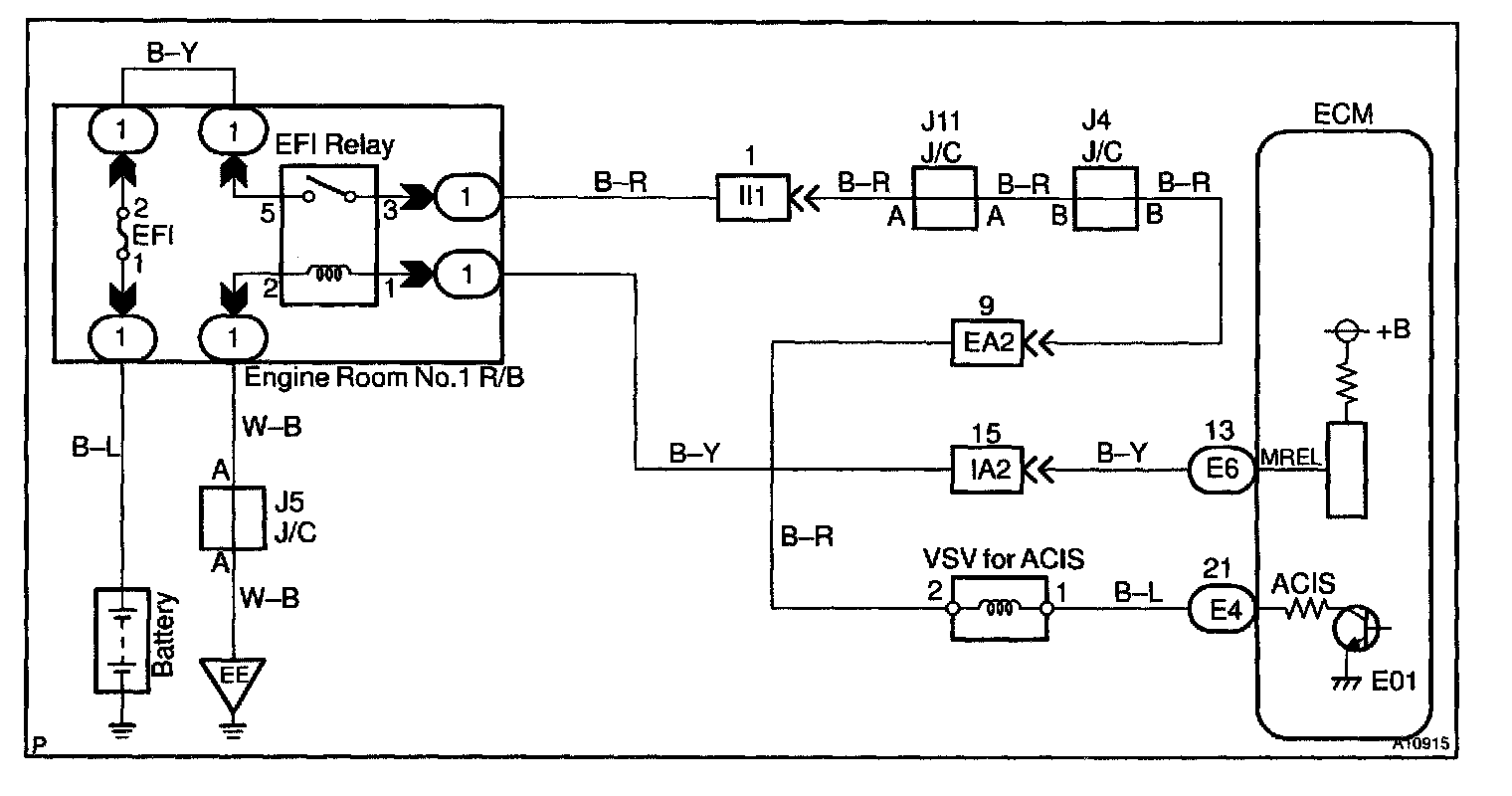

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 3:

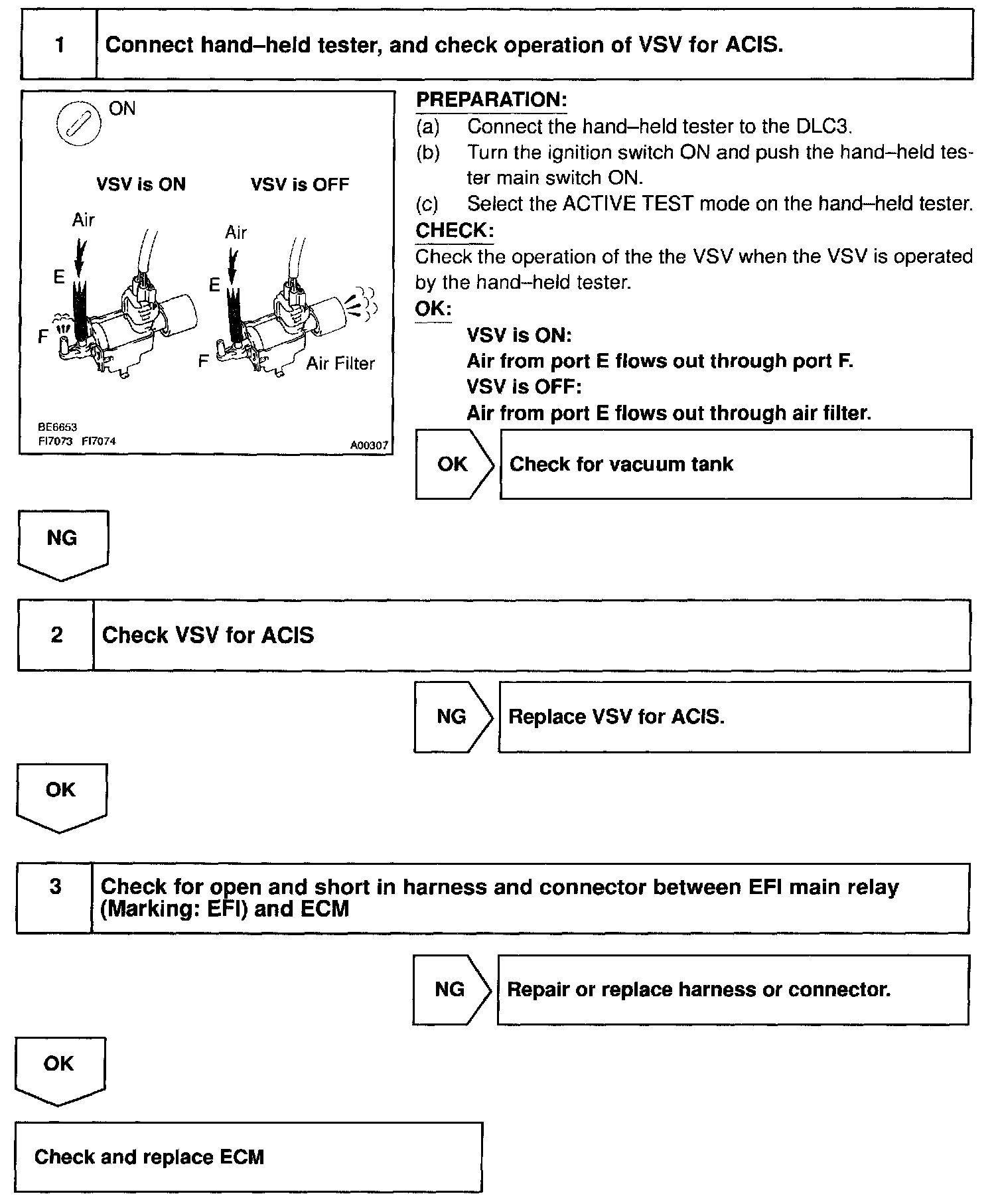

Hand-held tester

Step 1 - 3:

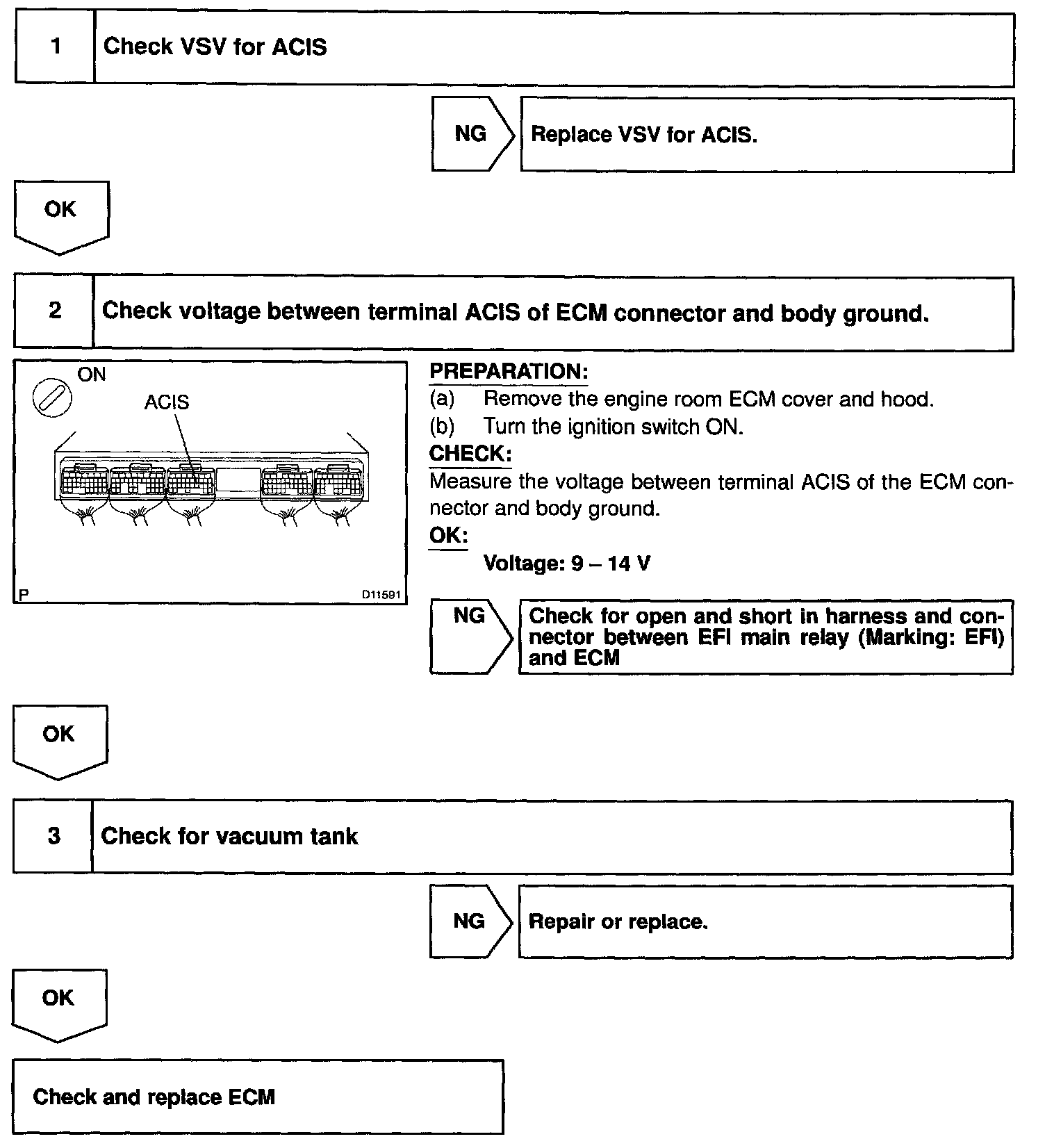

OBD II scan tool (excluding hand-held tester)
