Home >> Lexus >> 2003 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Passenger Side J/B

Passenger Side J/B

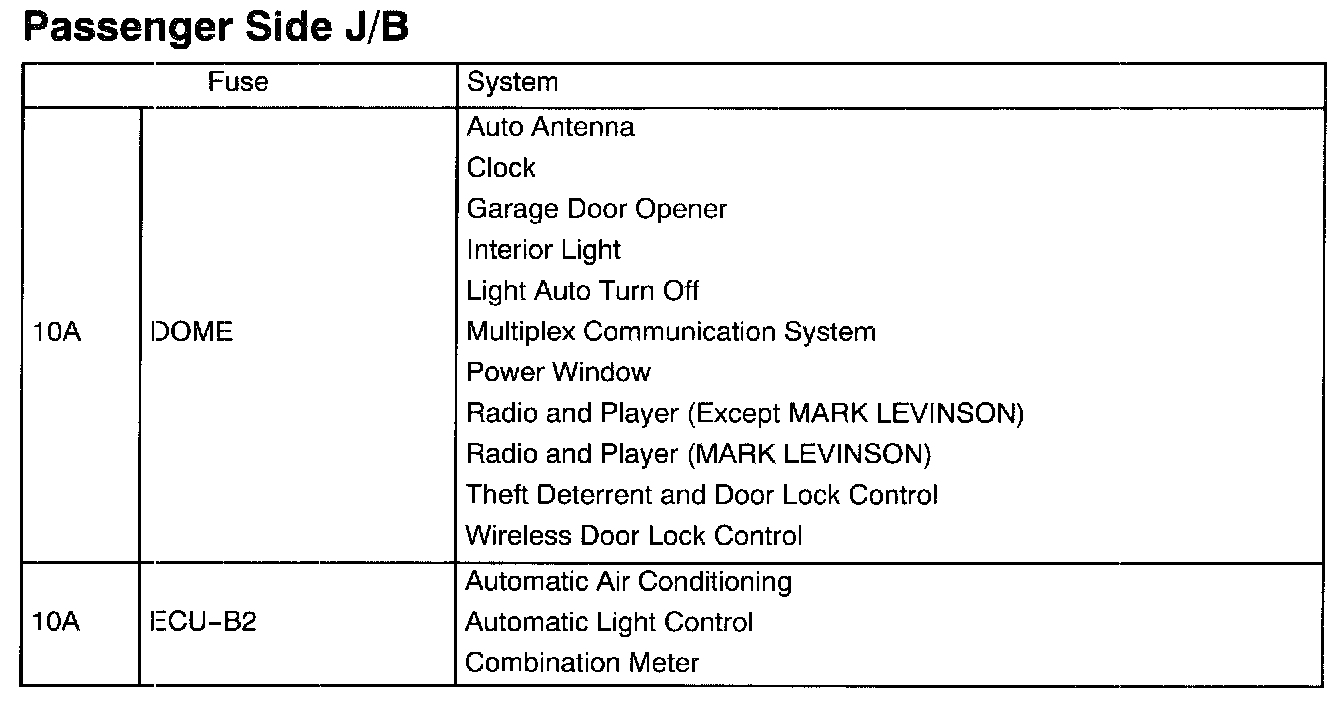

Passenger Side J/B - Part 1:

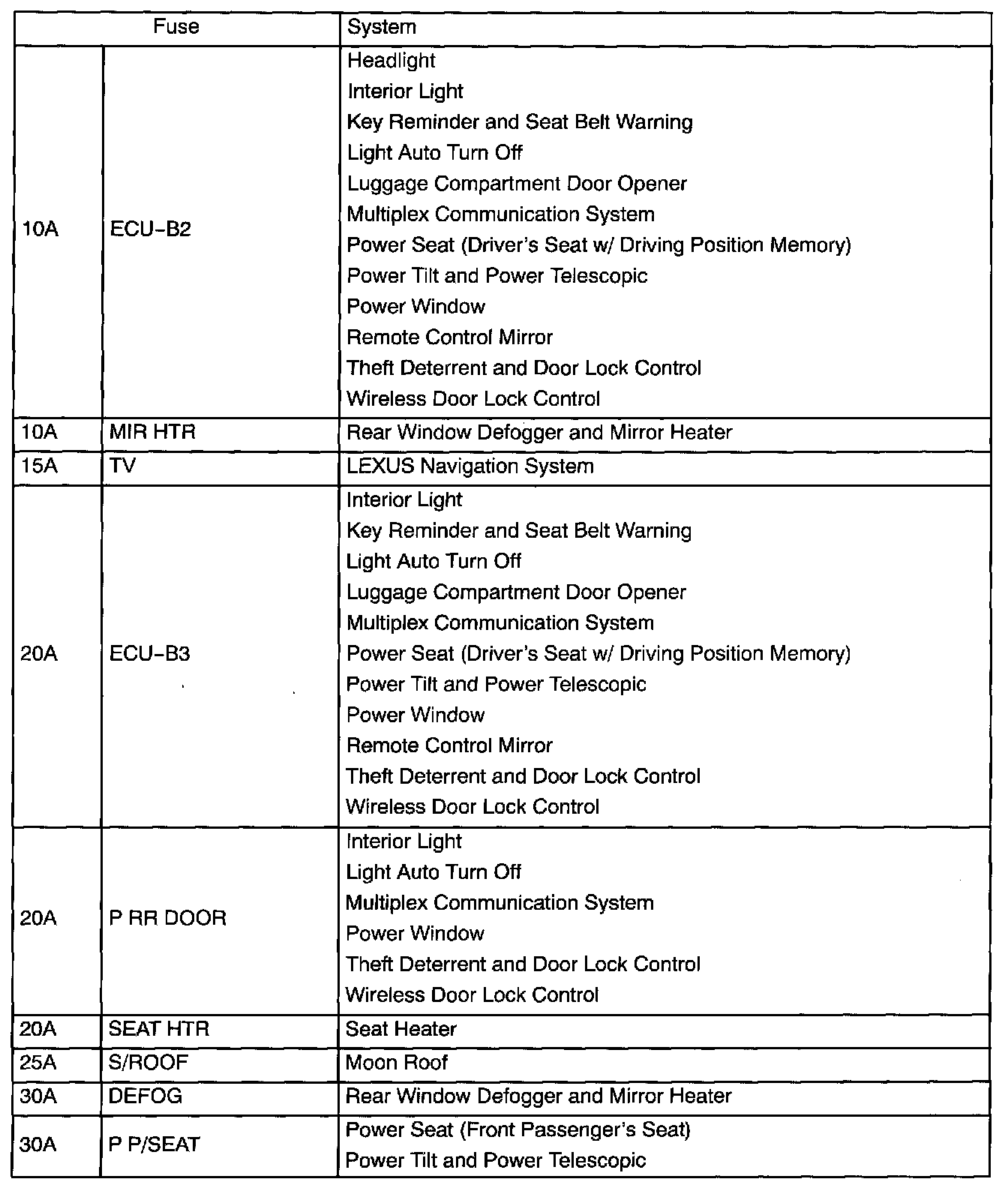

Passenger Side J/B - Part 2:
