Igniter Signal Circuit

INSPECTION PROCEDURE

Step 1 - 2:

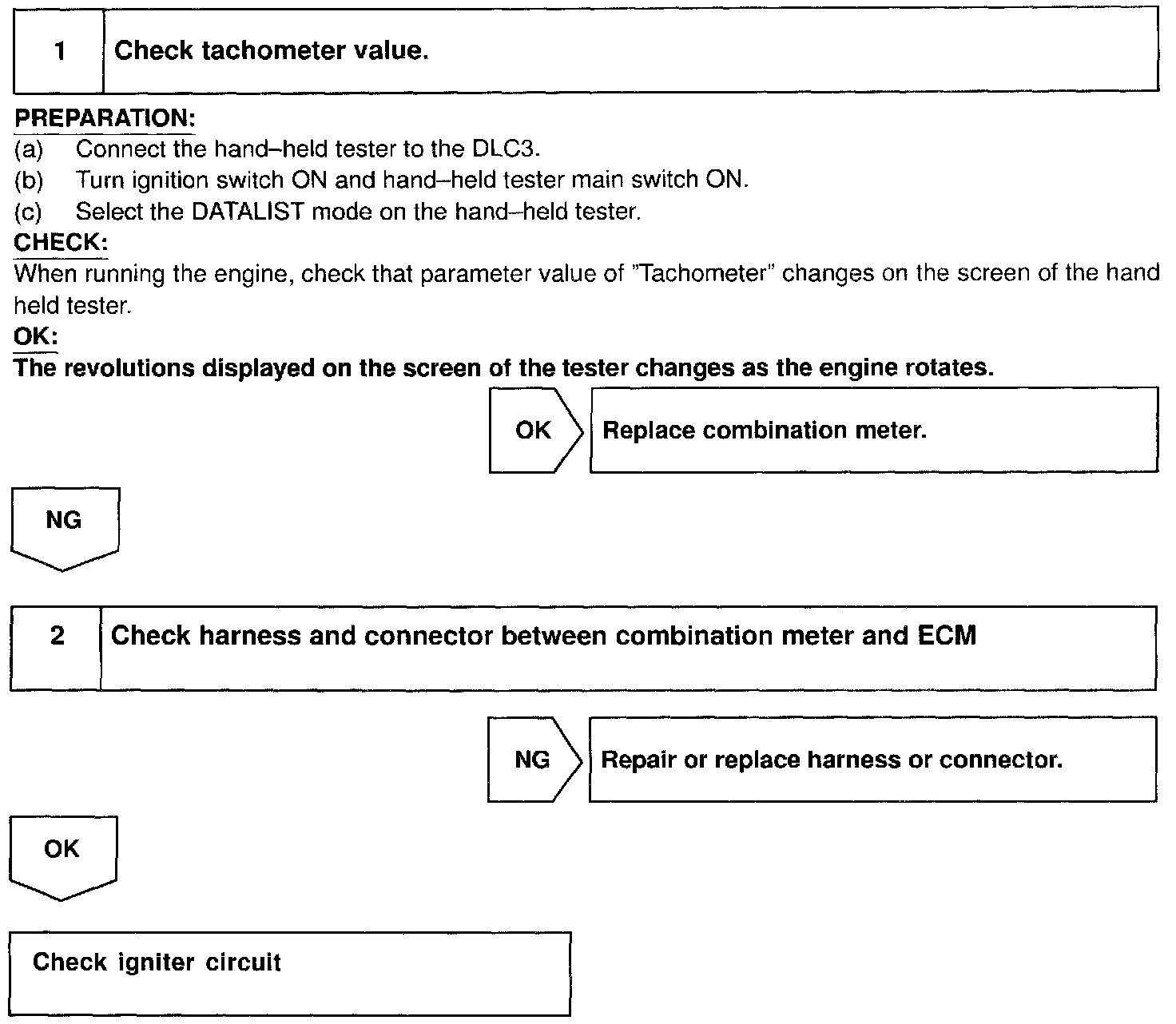

When using hand-held tester

Step 1 - 2:

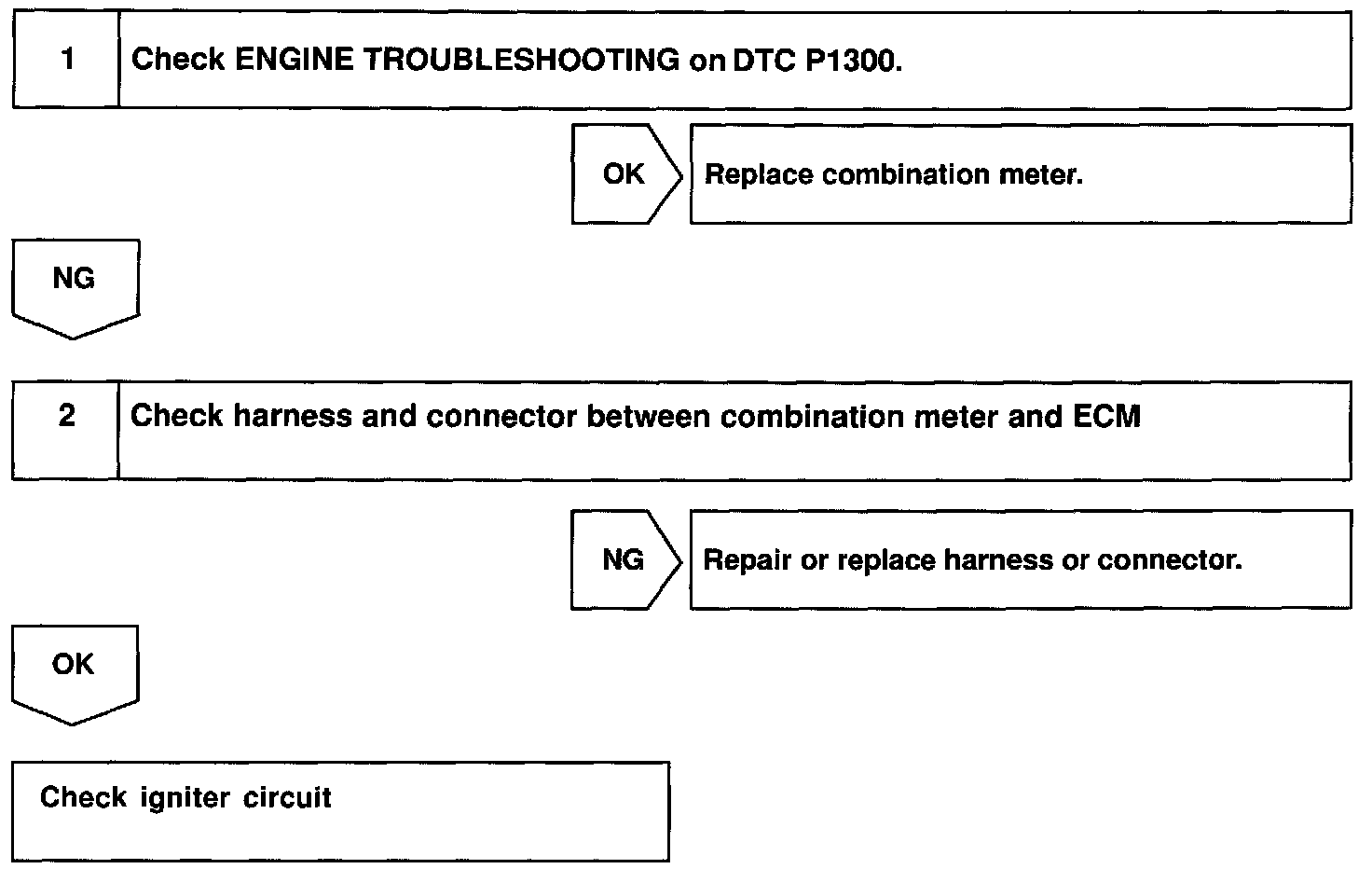

When not using hand-held tester
