Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table:

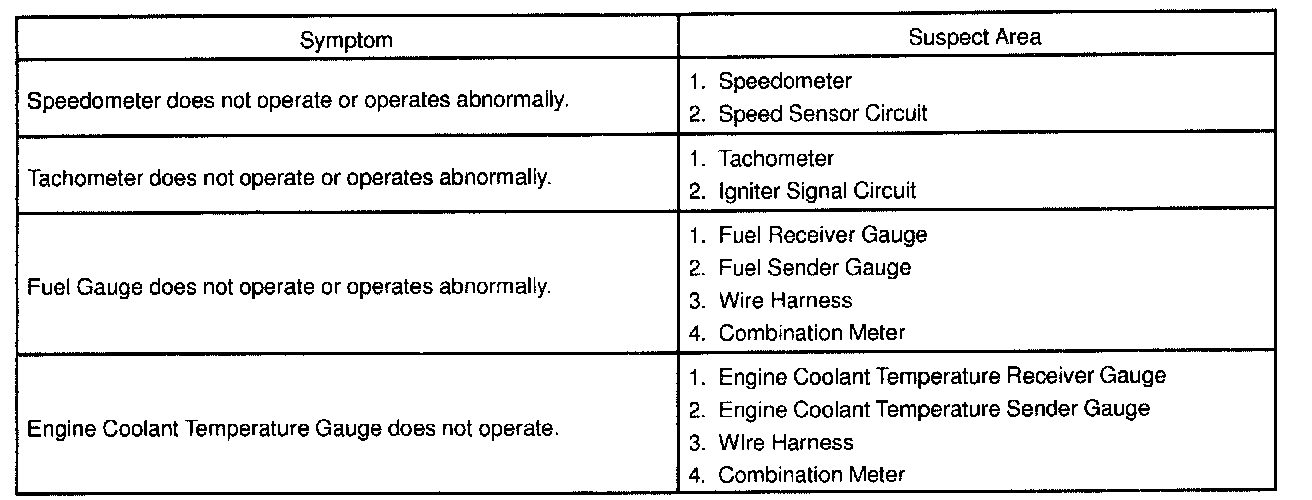

GAUGE

Problem Symptoms Table Part 1:




Problem Symptoms Table Part 2:

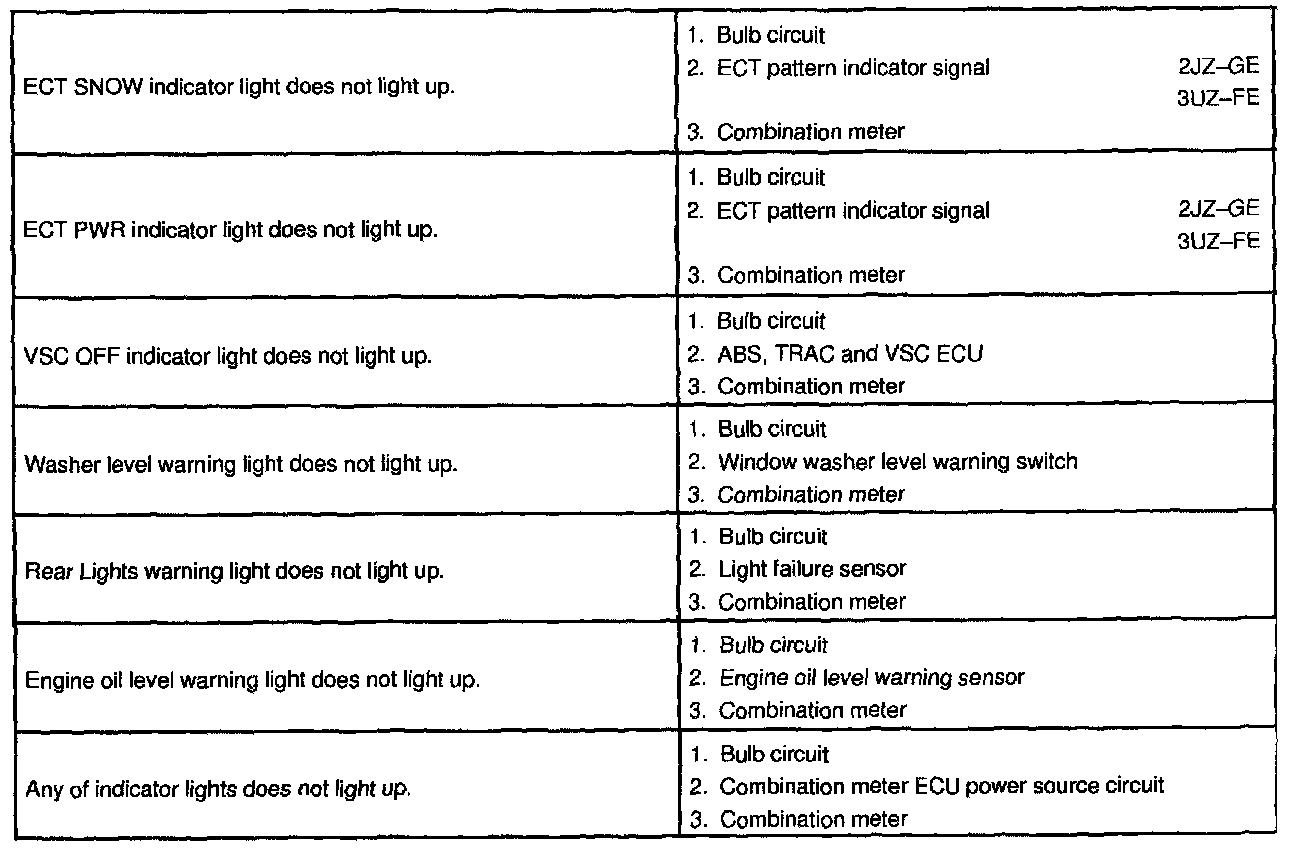

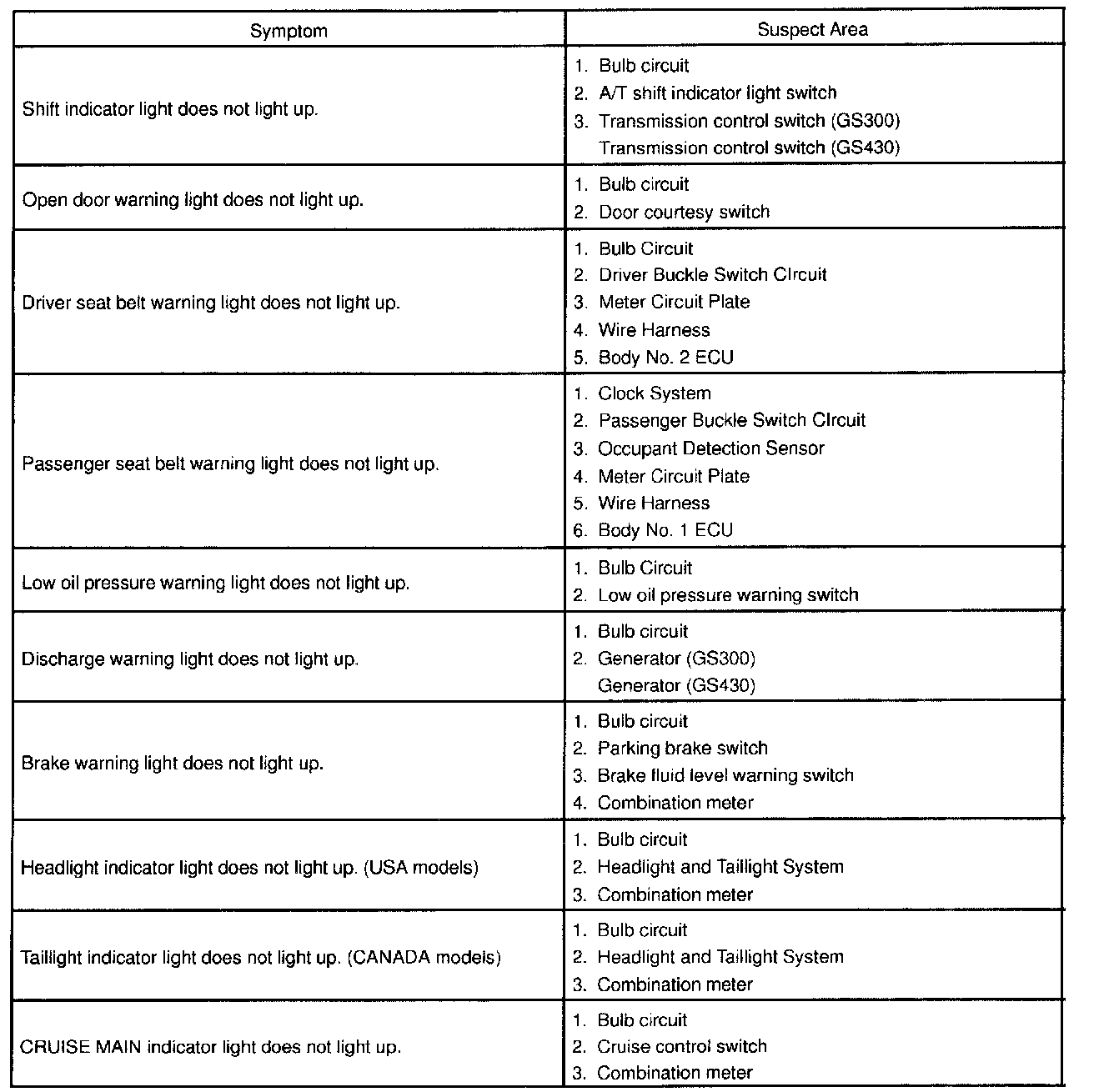

INDICATOR LIGHT AND WARNING LIGHT
