Lexus
>>
2003
>>
GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Clearing Diagnostic Trouble Codes
>>
Without Scan Tool
Without Scan Tool
CLEARING DTC
a.

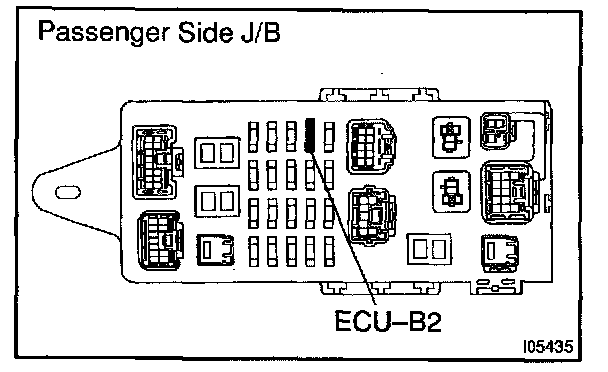

Pull out the ECU-B2 fuse in Passenger Side J/B for
10 sec.
or longer to clear the DTC memory.
b.
After reinserting the fuse, check that the normal code is output.
