Blower Motor Circuit

CIRCUIT DESCRIPTION

This is the power source for the blower motor.

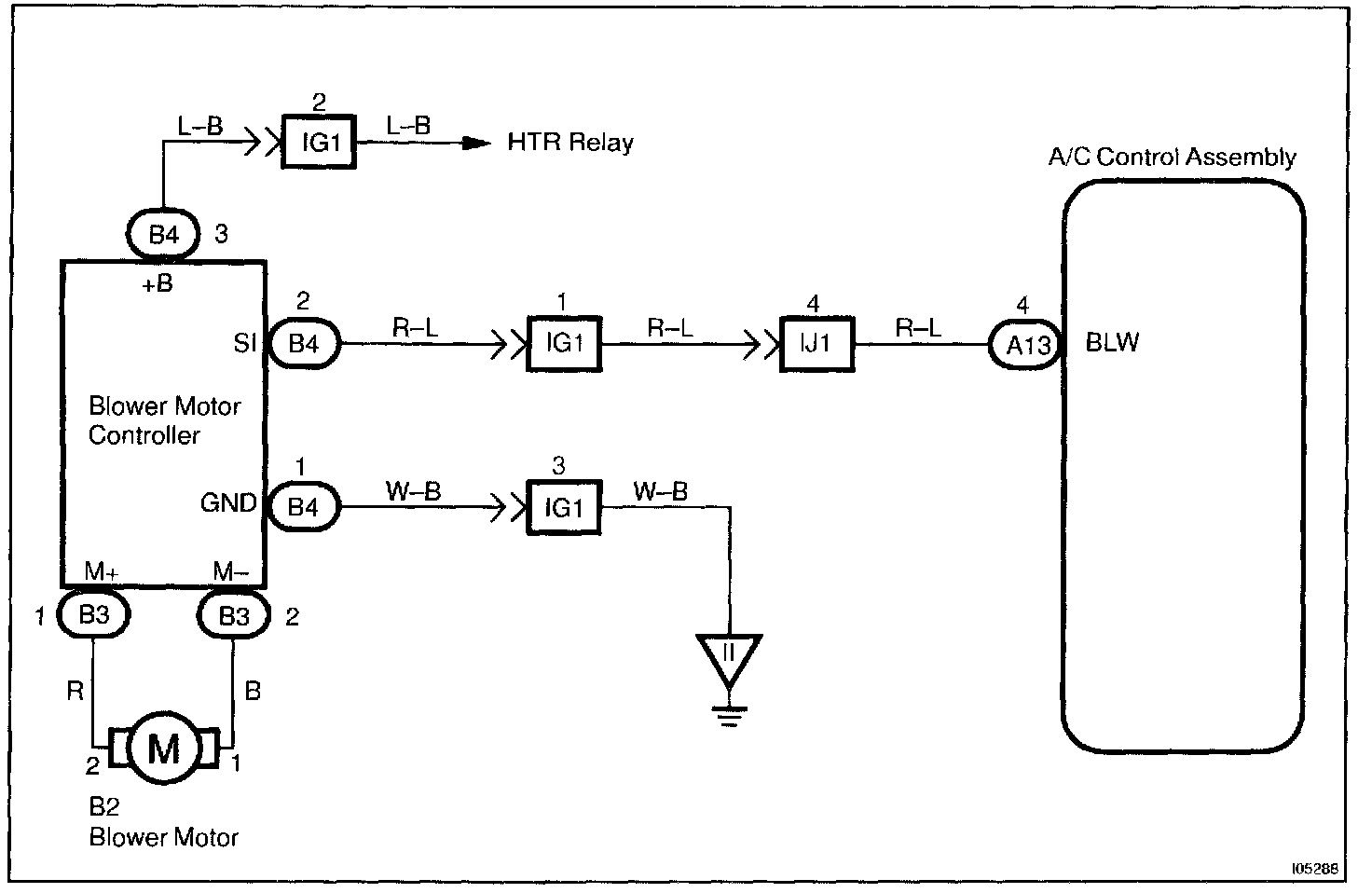

Wiring Diagram:

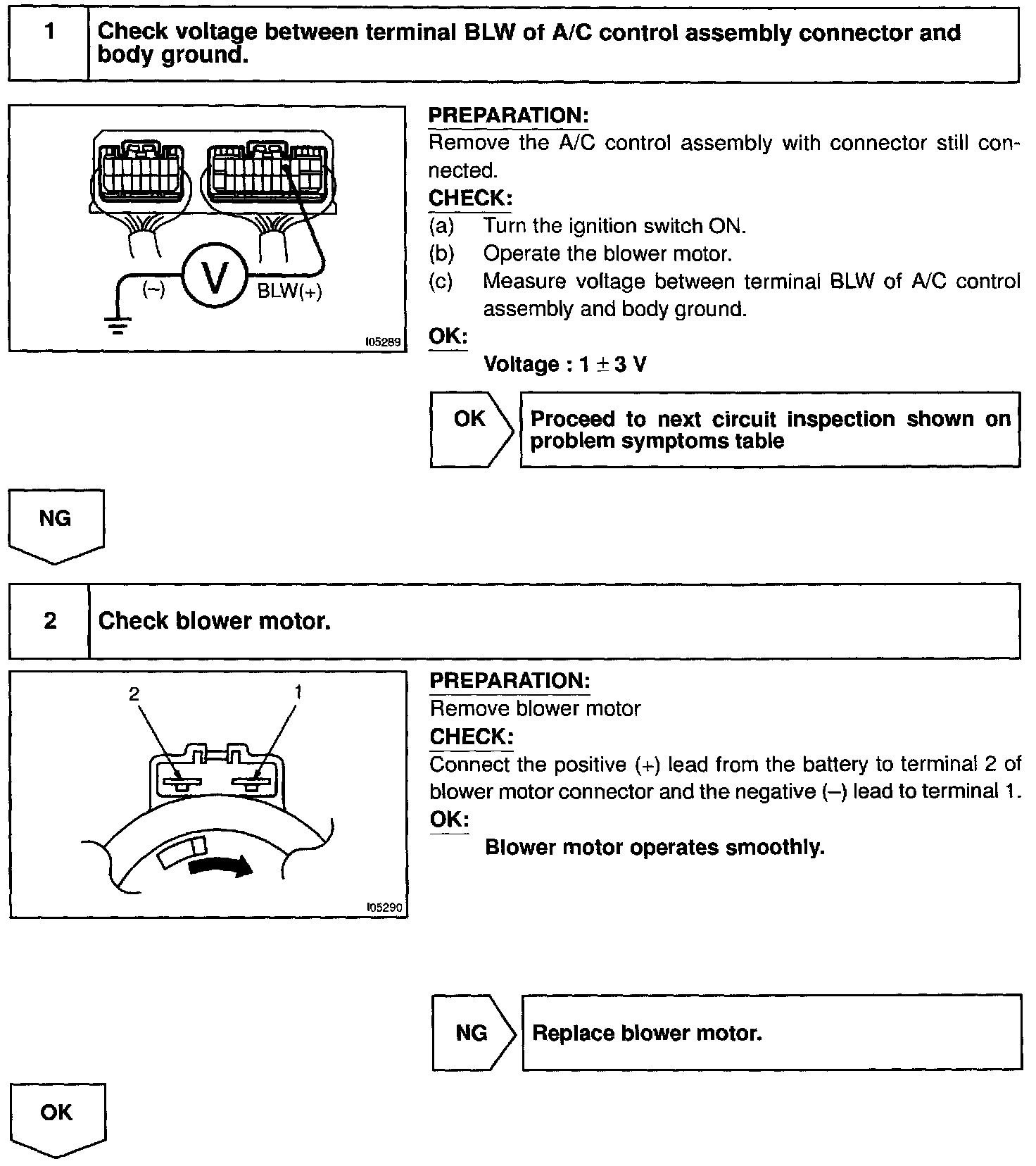

Step 1 - 2:

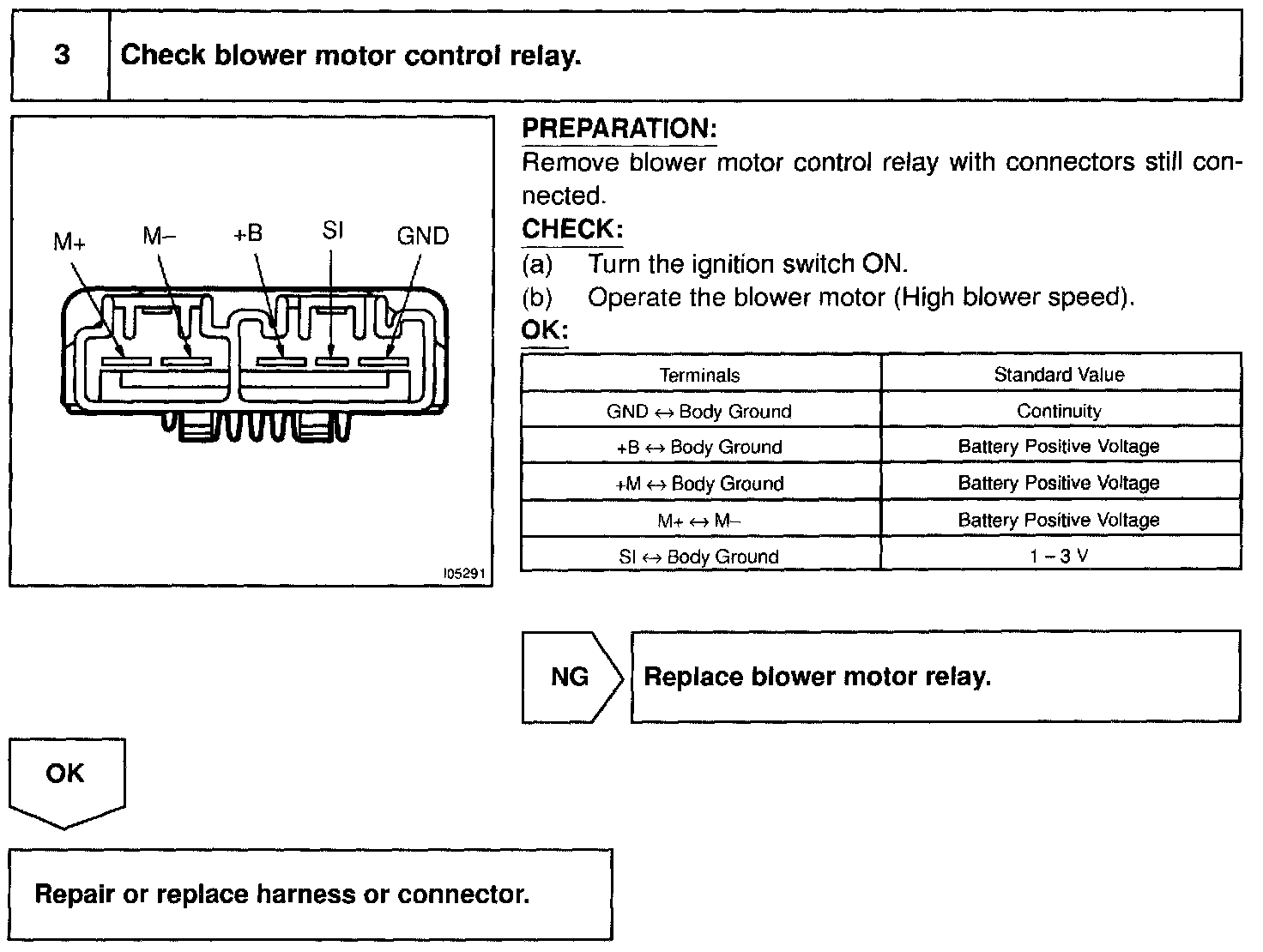

Step 3:




INSPECTION PROCEDURE
