Back-Up Power Source Circuit

CIRCUIT DESCRIPTION

This is the backup power source for the A/C control assembly. Power is supplied even when the ignition switch is off and is used for diagnostic trouble code memory, etc.

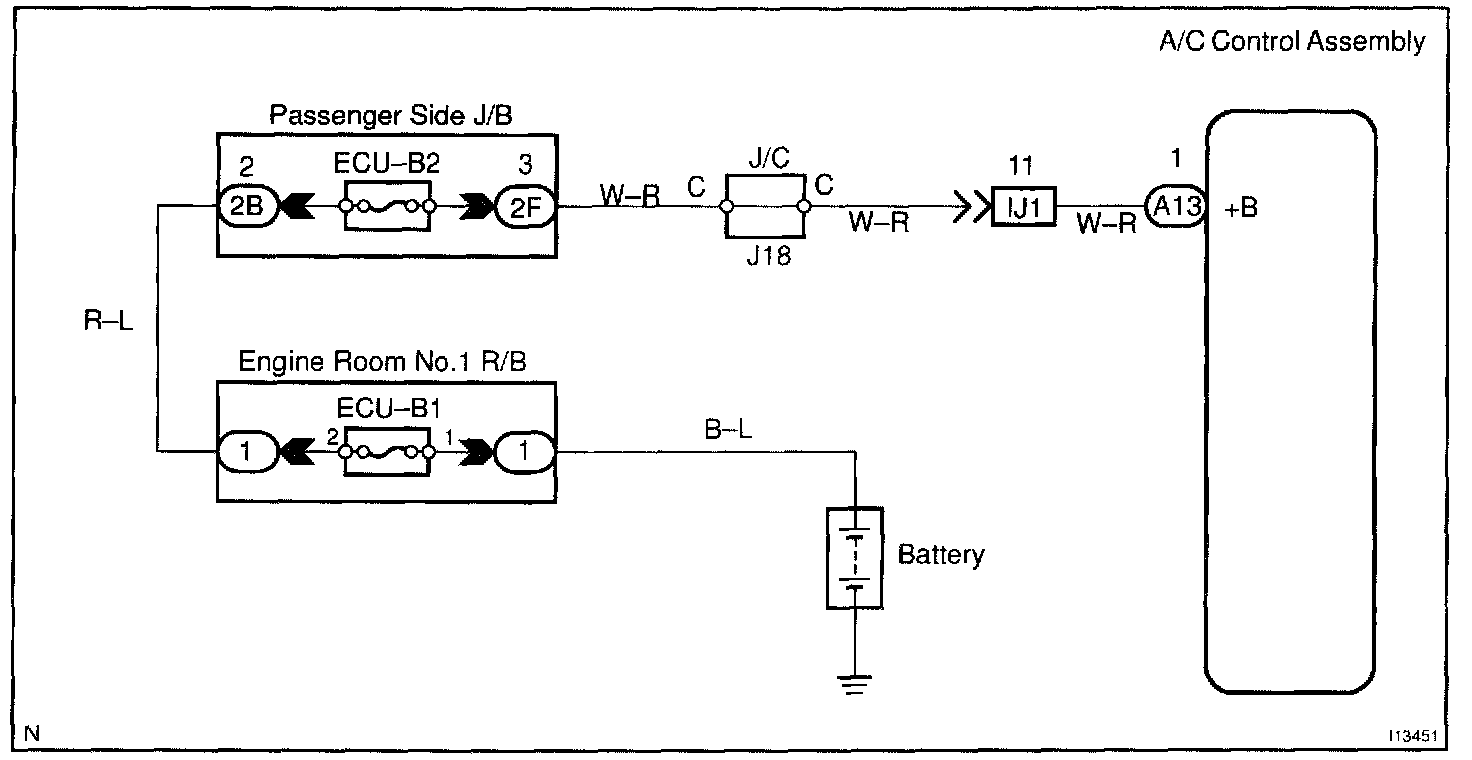

Wiring Diagram:

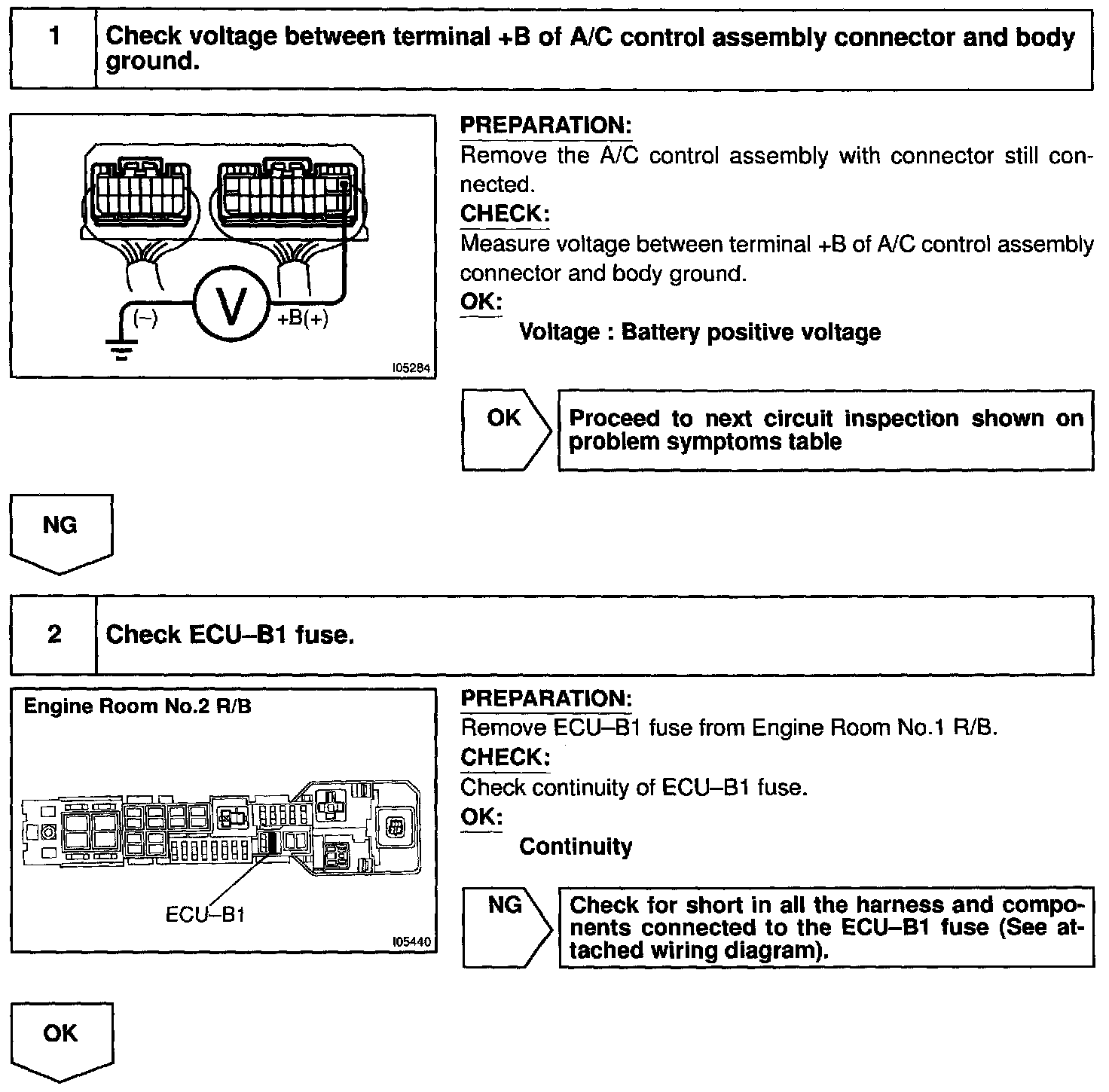

Step 1 - 2:




Step 3:




INSPECTION PROCEDURE
