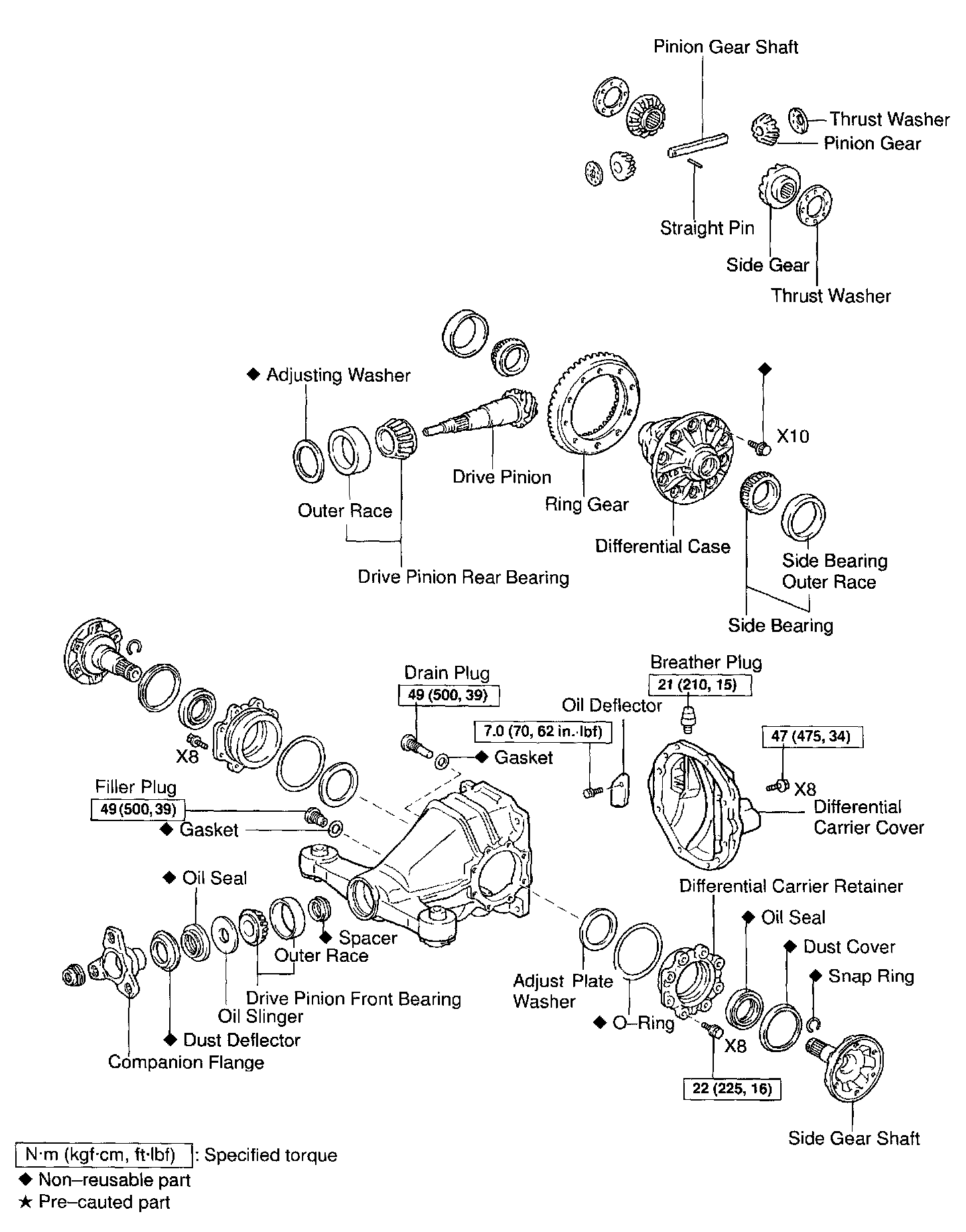

Differential Carrier


Part 1 Of 2:




Part 2 Of 2:





REAR DIFFERENTIAL CARRIER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
