Home >> Lexus >> 2003 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Control Arm >> Rear >> Lower

Lower

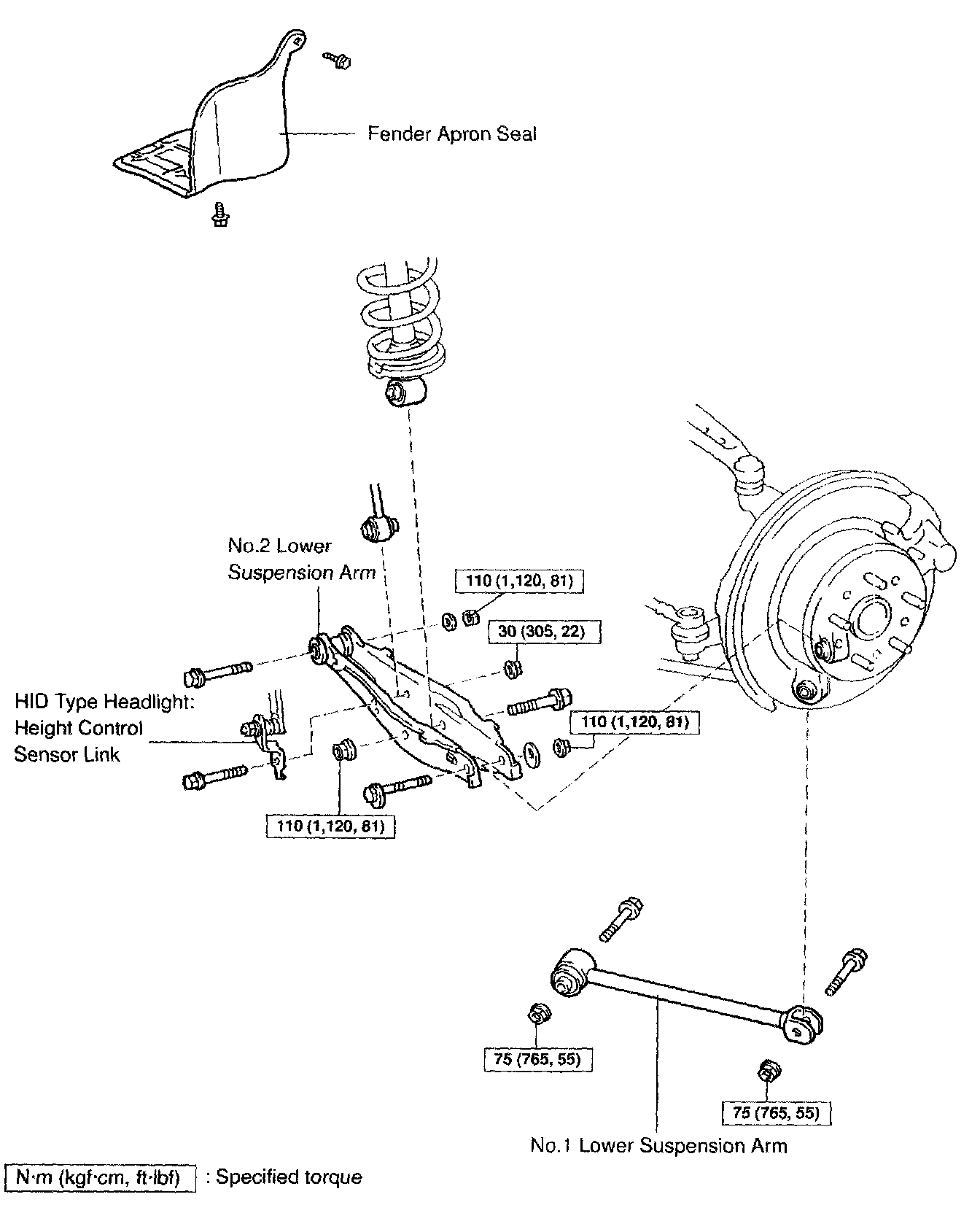

REAR LOWER SUSPENSION ARM REPLACEMENT W/ RELATED COMPONENTS
