Home >> Lexus >> 2003 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

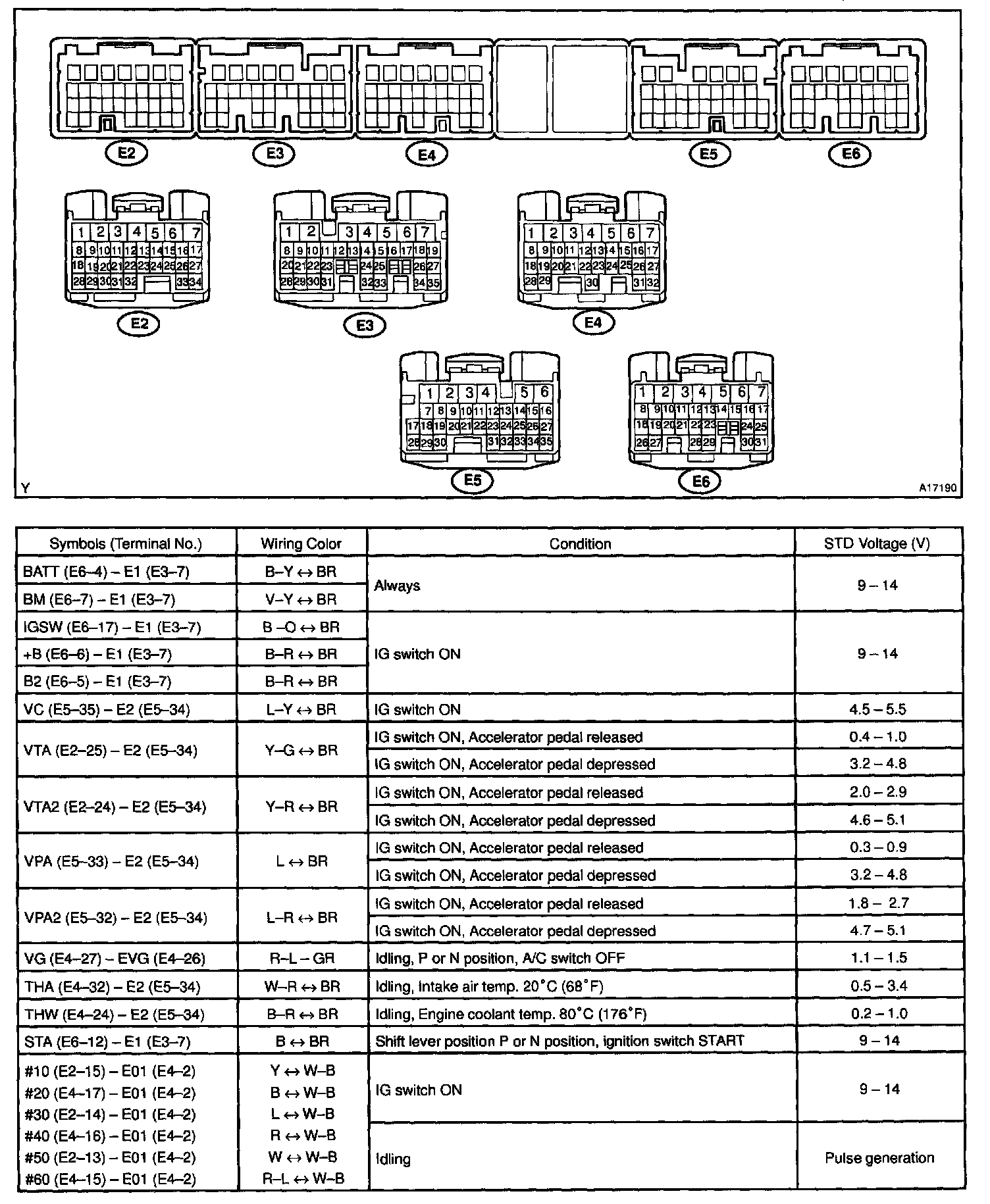

Terminals Of ECM / Pinouts Part 1:



Terminals Of ECM / Pinouts Part 2:
