Home >> Lexus >> 2003 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> S11 - V2

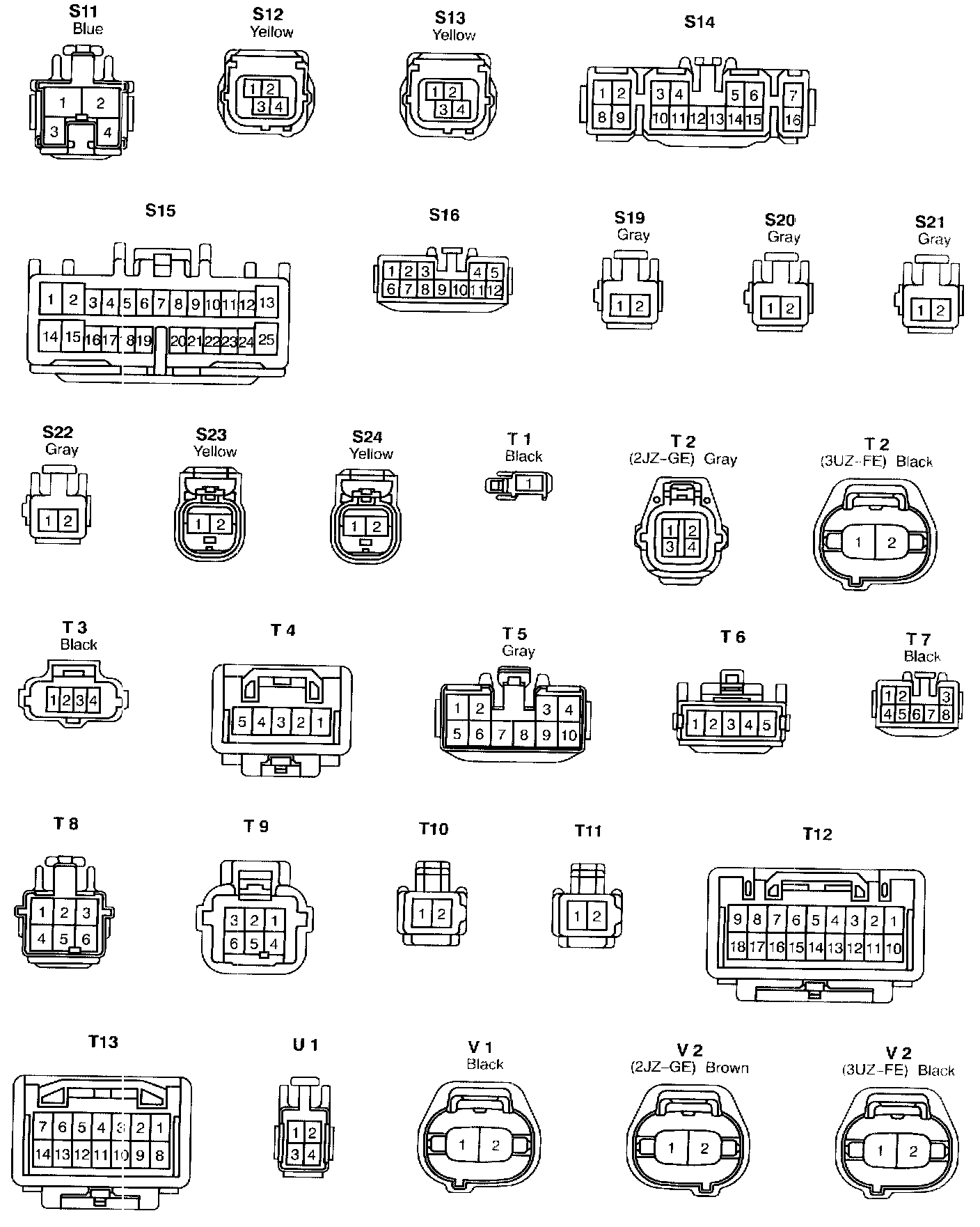

S11 - V2

S11 - V2:
