Home >> Lexus >> 2003 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Components >> Position of Parts In Instrument Panel

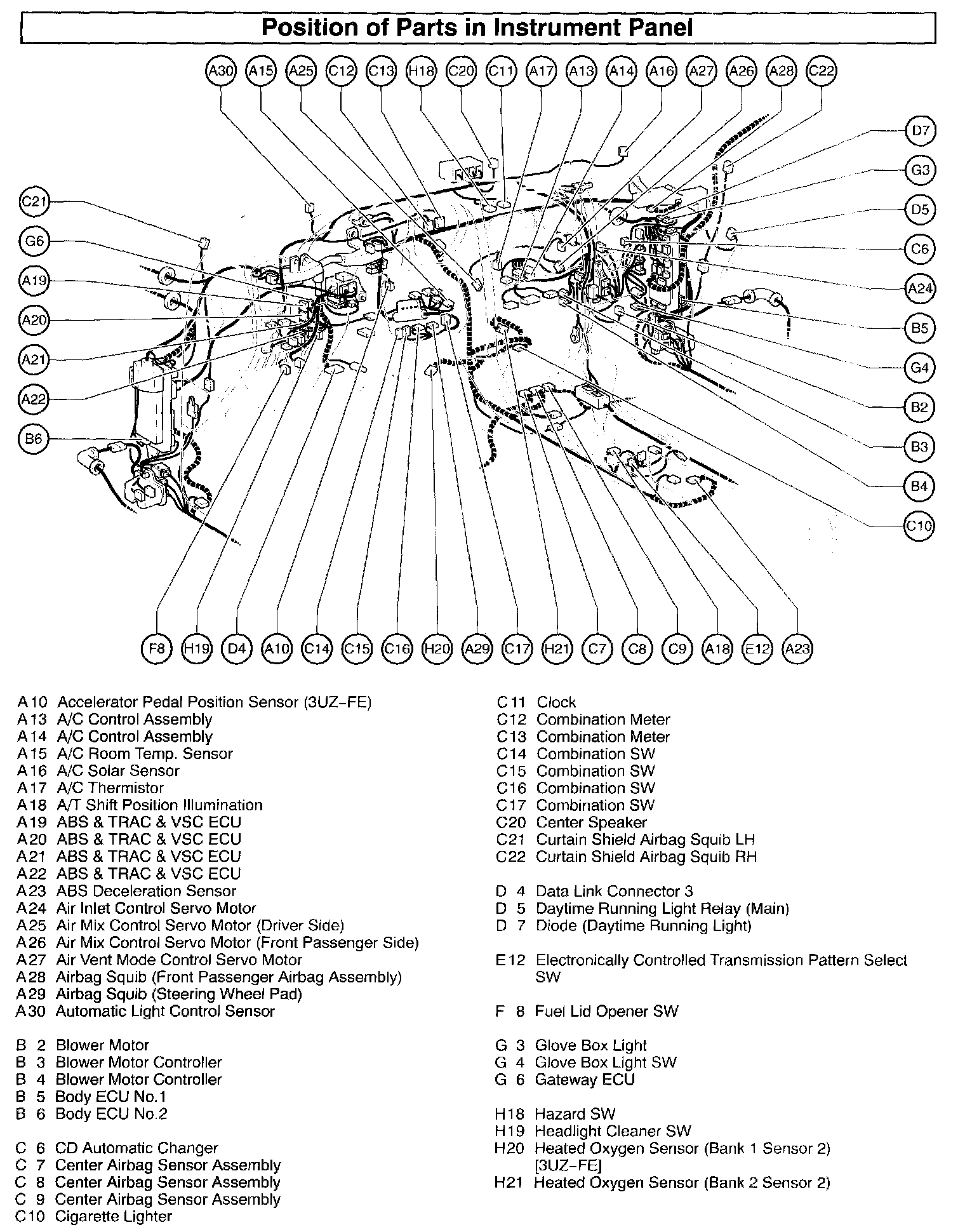

Position of Parts In Instrument Panel

Ac - He:
