Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECM.

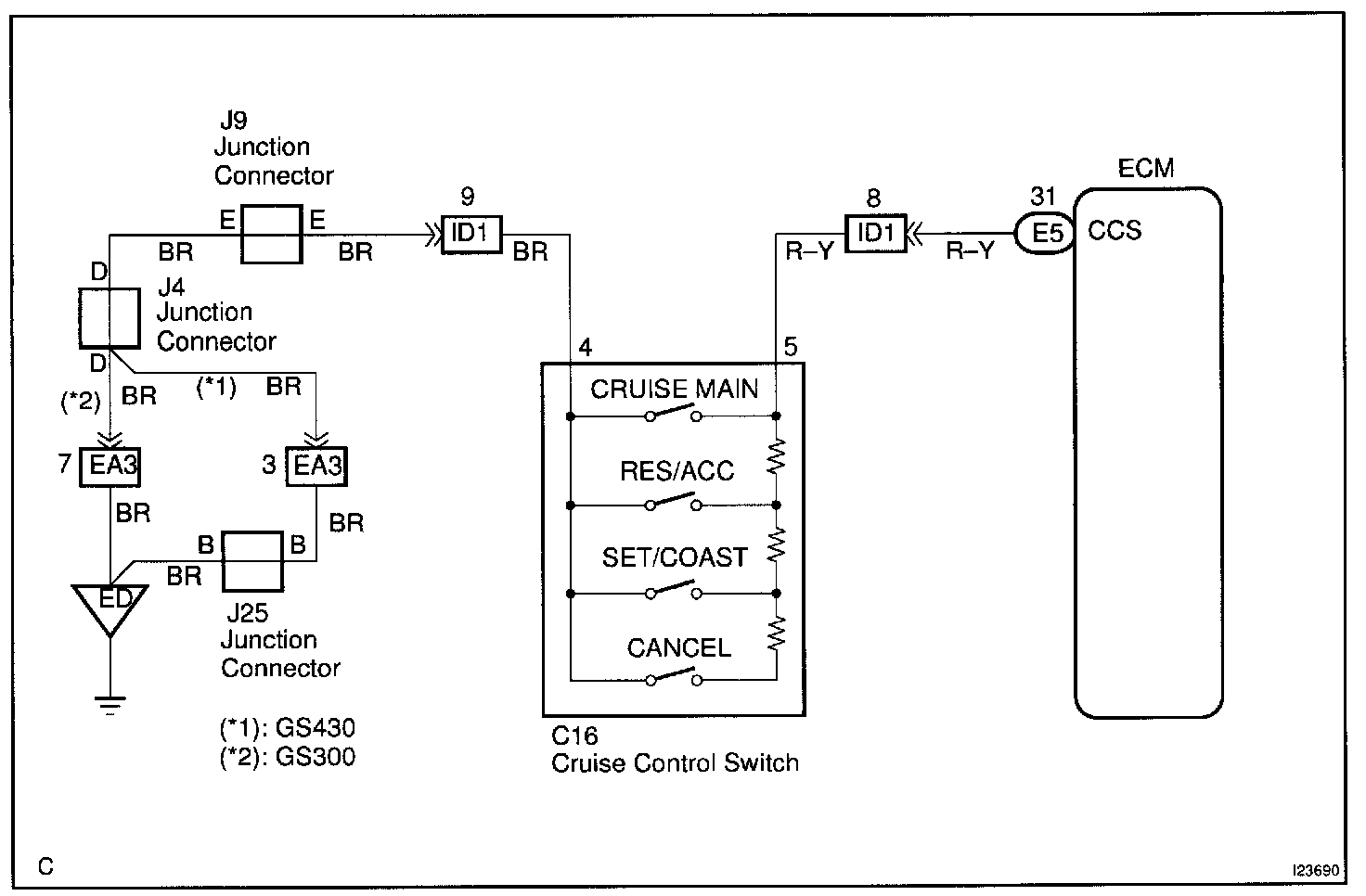

Wiring Diagram:

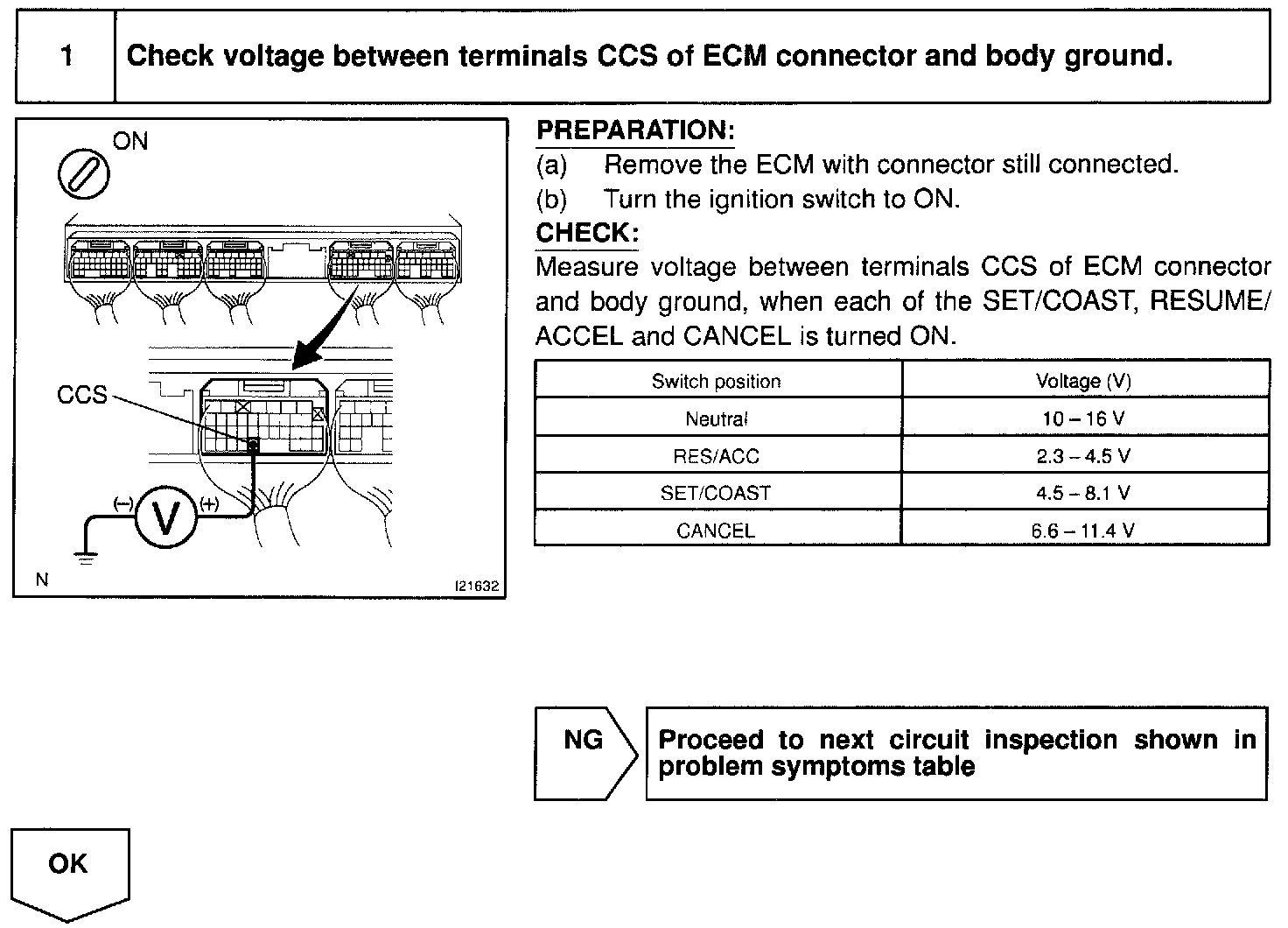

Step 1:

Step 2:

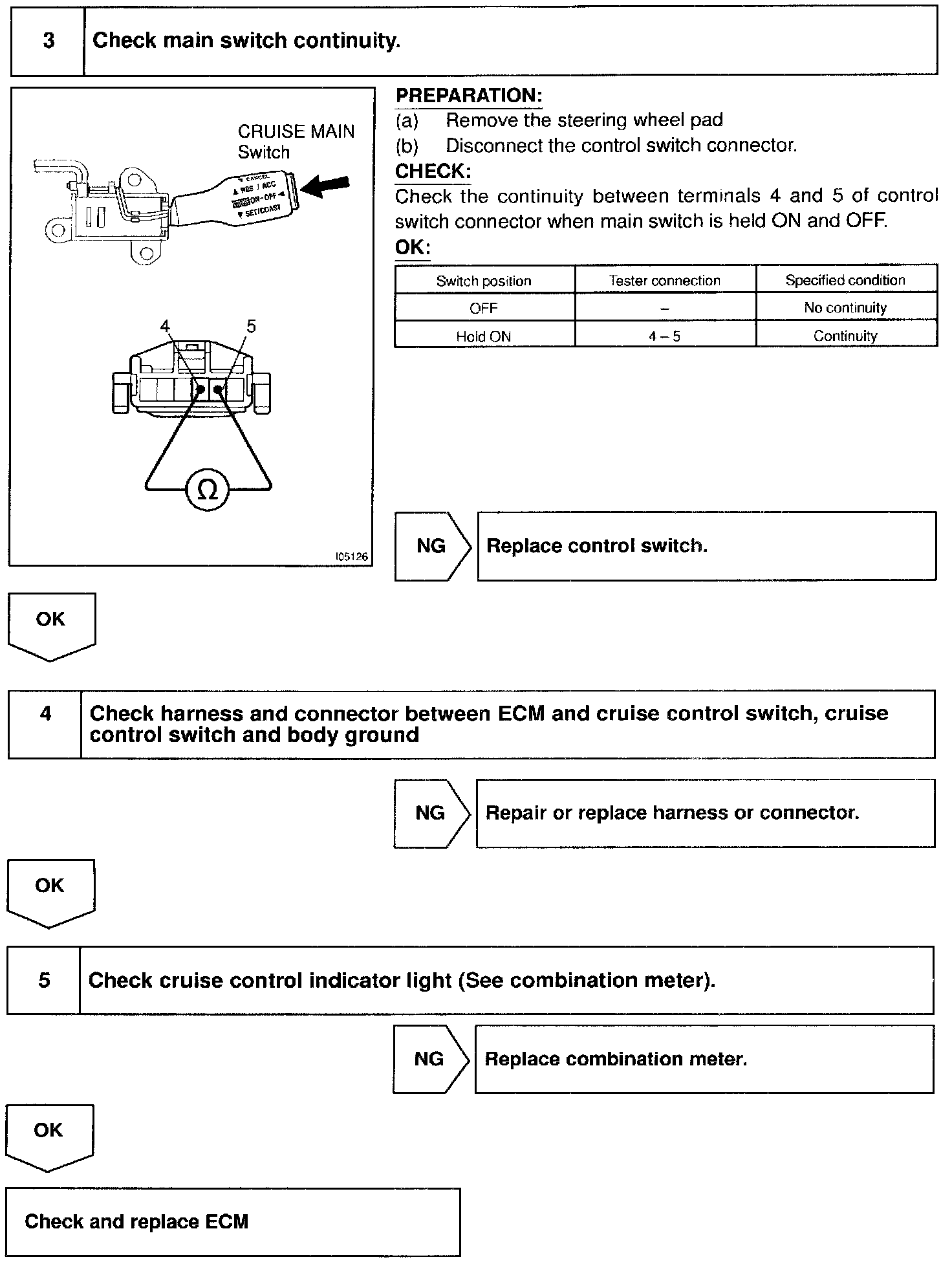

Step 3 - 5:

INSPECTION PROCEDURE
