With Manufacturer's Scan Tool
Clear the DTCa. In case of using LEXUS hand-held tester:

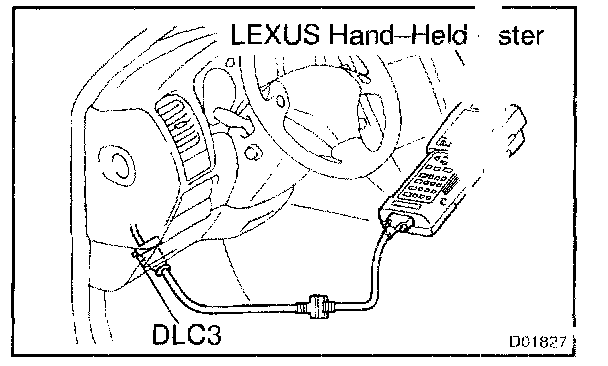

1. Hook up the LEXUS hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Operate the LEXUS hand-held tester to erase the codes.
b. Reference:

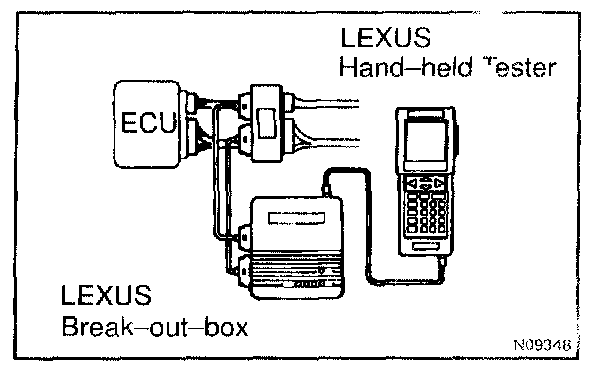

Using LEXUS break-out-box and LEXUS hand-held tester, measure the ECU terminal values.
1. Turn the ignition switch OFF.
2. Hook up the LEXUS break-out-box and LEXUS hand-held tester to the vehicle
3. Turn the ignition switch ON.
4. Read the ECU input/output values by following the prompts on the tester screen.
HINT:
- LEXUS hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.
- Please refer to the LEXUS hand-held tester/LEXUS break-out-box operator's manual for further details.
- If the ignition switch is turned from ON to ACC or LOCK during test mode, DTC will be erased.
