ABS W/BA & VSC System
ABS W/BA & VSC System

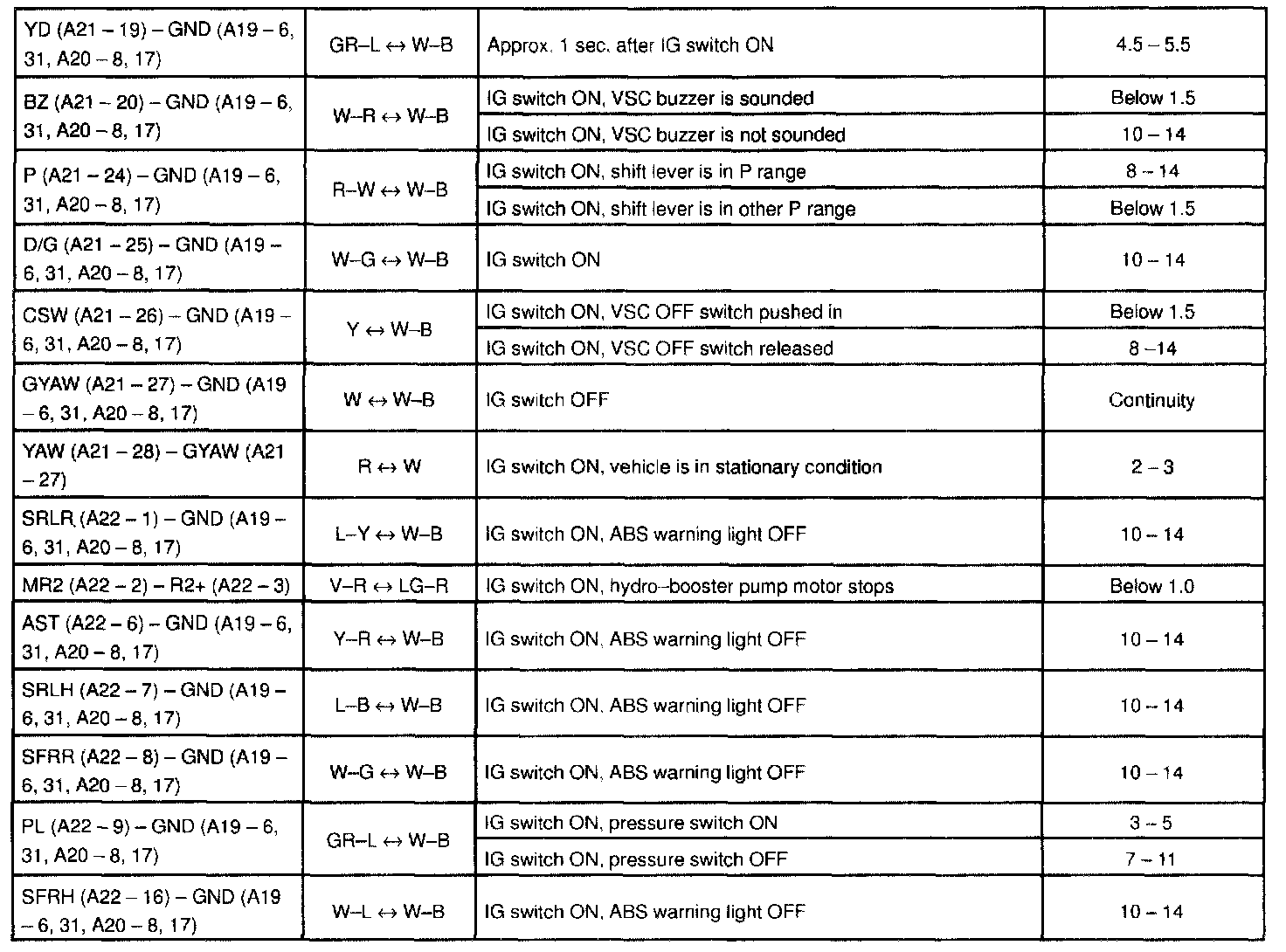

Terminals Of ECU / Pinouts Part 1:

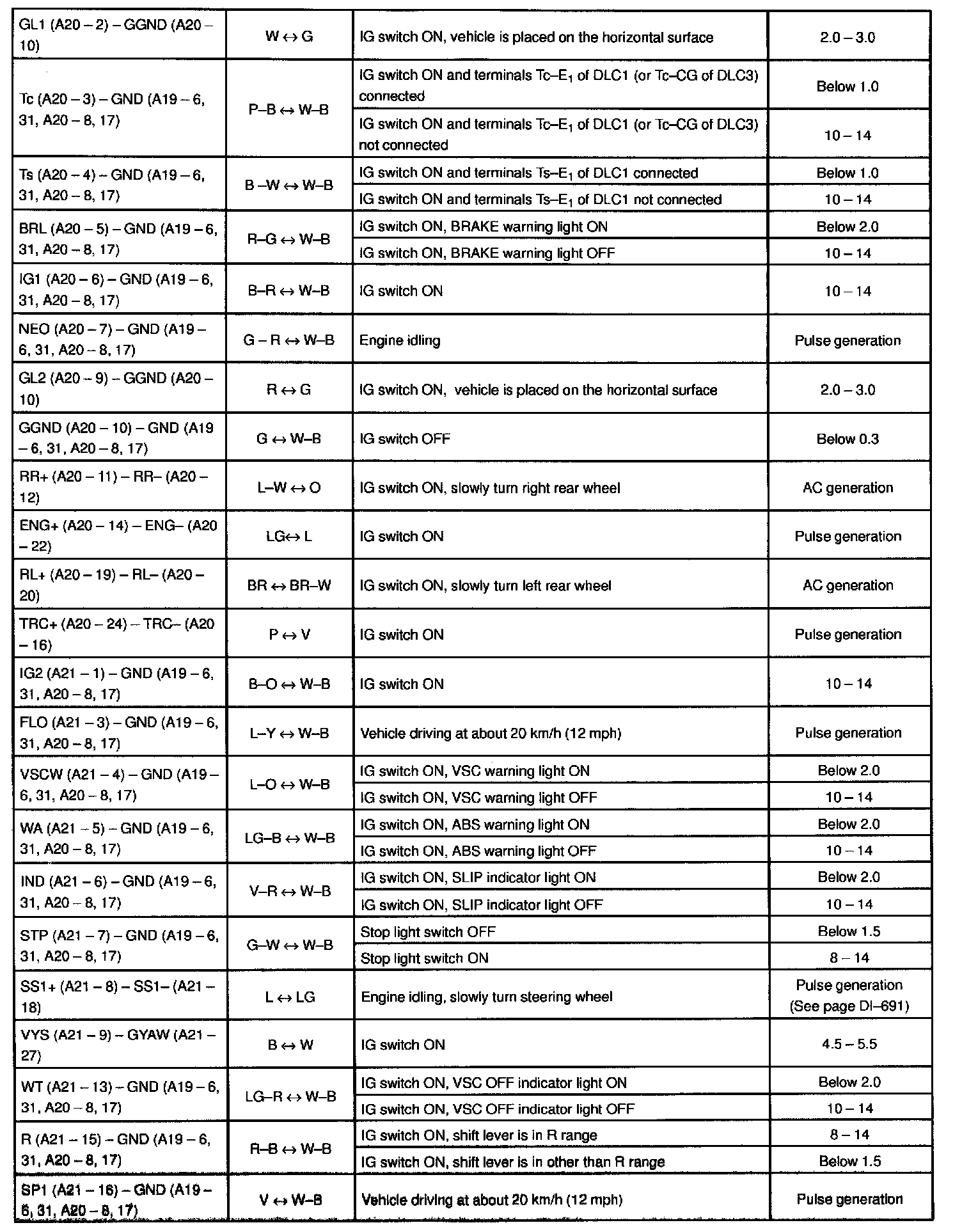

Terminals Of ECU / Pinouts Part 2:
Terminals Of ECU / Pinouts Part 3:
