Check VSC Sensor Signal

CHECK VSC SENSOR SIGNAL




In case of using LEXUS hand-held tester:

NOTE: When having replaced the yaw rate sensor, deceleration sensor and/or ECU, perform zero point calibration of the yaw rate and deceleration sensors. Make sure that this operation should be done before starting the following.

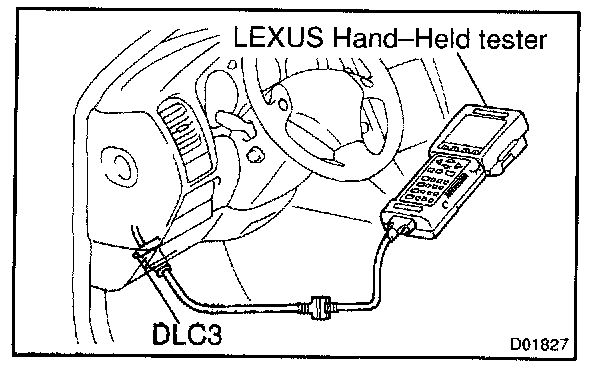

a. Hook up the LEXUS hand-held tester to the DLC3.
b. Do steps (a) - (2) and from (a) - (4) to (c).
c. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.




DTC of the VSC sensor check function
