Sliding Roof Gear Assembly With ECU Circuit
Sliding Roof Gear Assembly With ECU Circuit
Wiring Diagram:

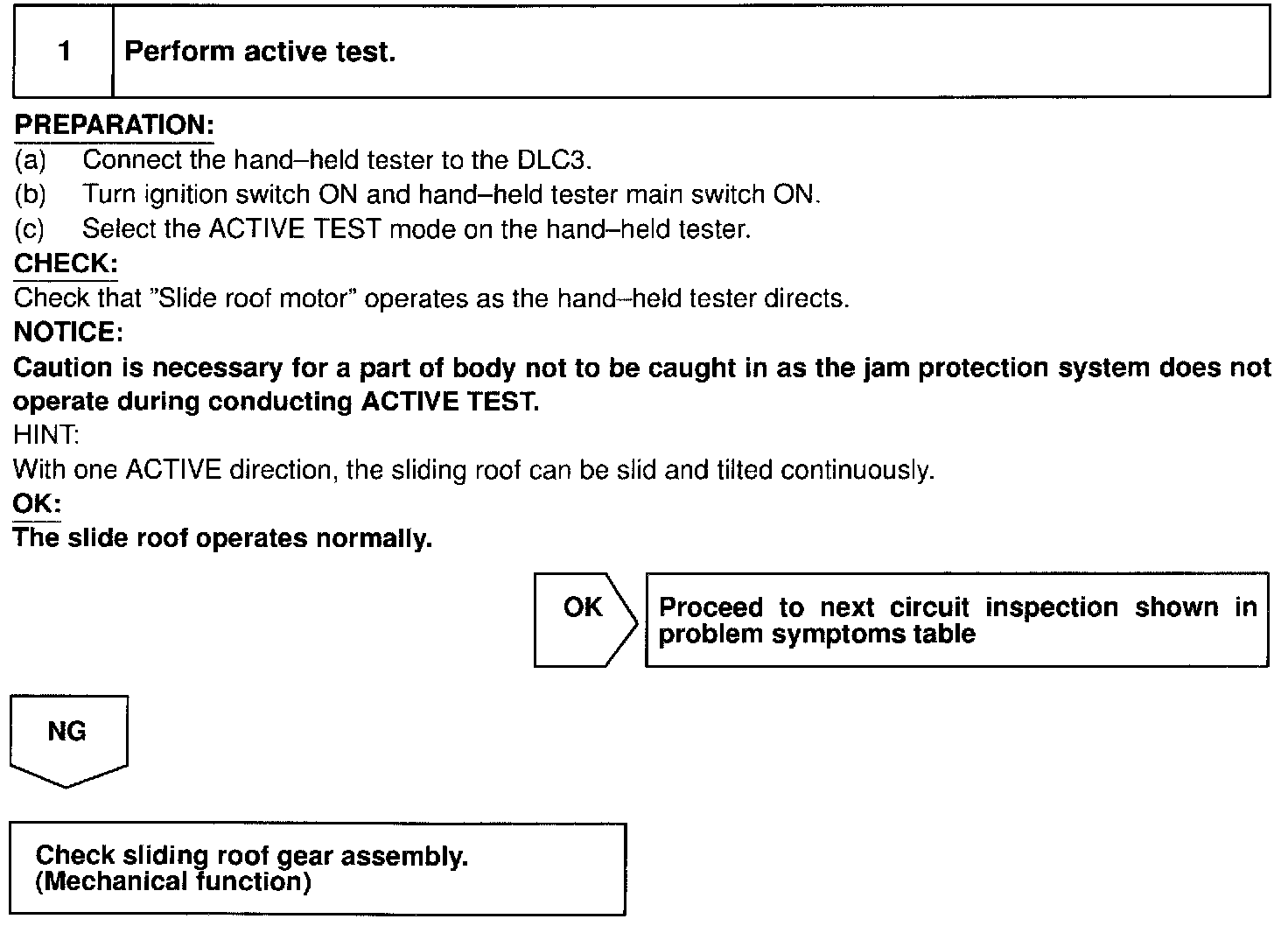

Step 1:
INSPECTION PROCEDURE
HINT:
If there is not the hand-held tester, begin with STEP 2.
