Power Seat (Driver's Seat w/ Driving Position Memory)

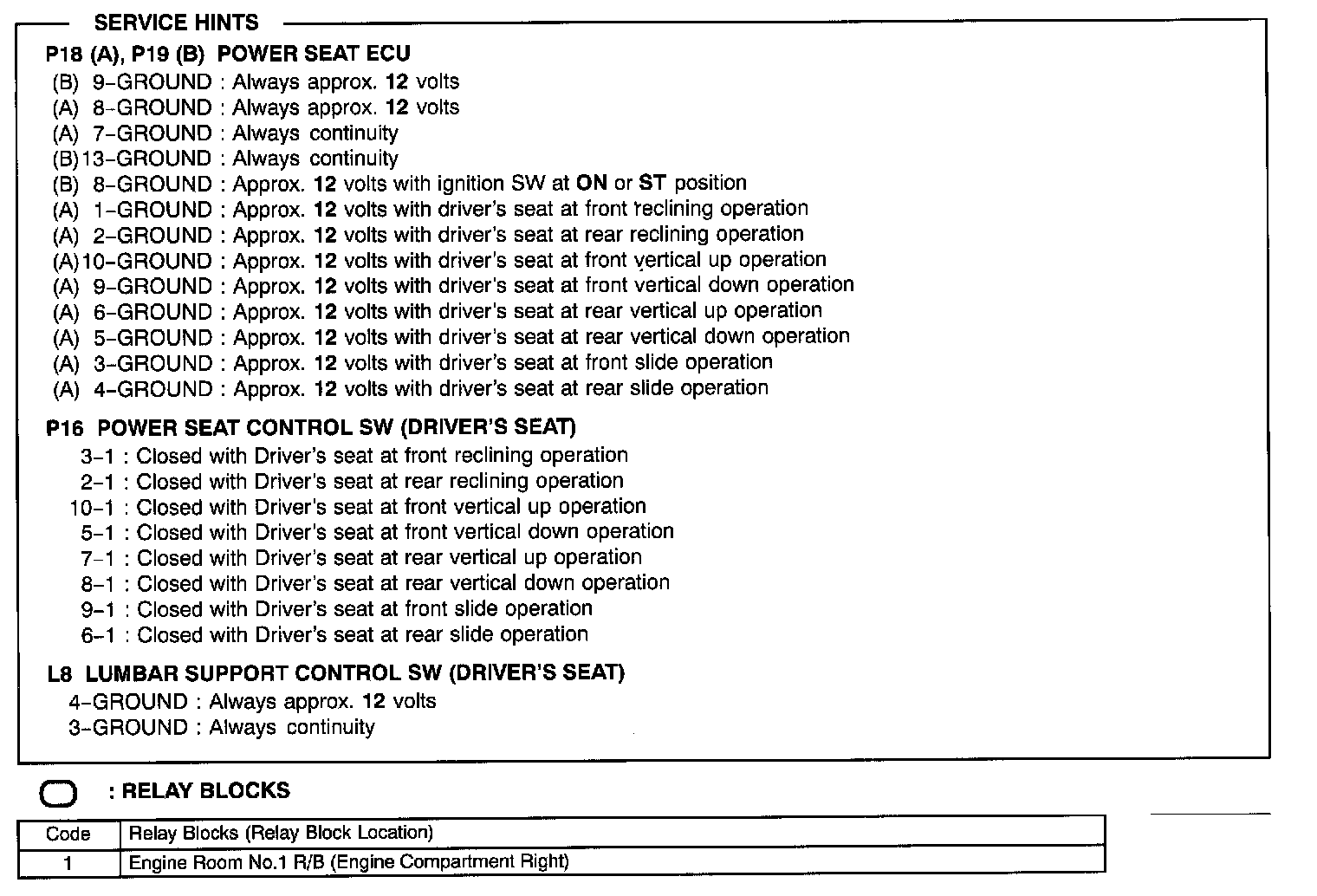

Power Seat (Driver's Seat W/ Driving Position Memory) Part 1:

Power Seat (Driver's Seat W/ Driving Position Memory) Part 2:

Power Seat (Driver's Seat W/ Driving Position Memory) Part 3:

Power Seat (Driver's Seat W/ Driving Position Memory) Part 4:

Power Seat (Driver's Seat W/ Driving Position Memory) Part 5:

Power Seat (Driver's Seat W/ Driving Position Memory) Part 6:

Diagram Legend Part 1:

Diagram Legend Part 2:

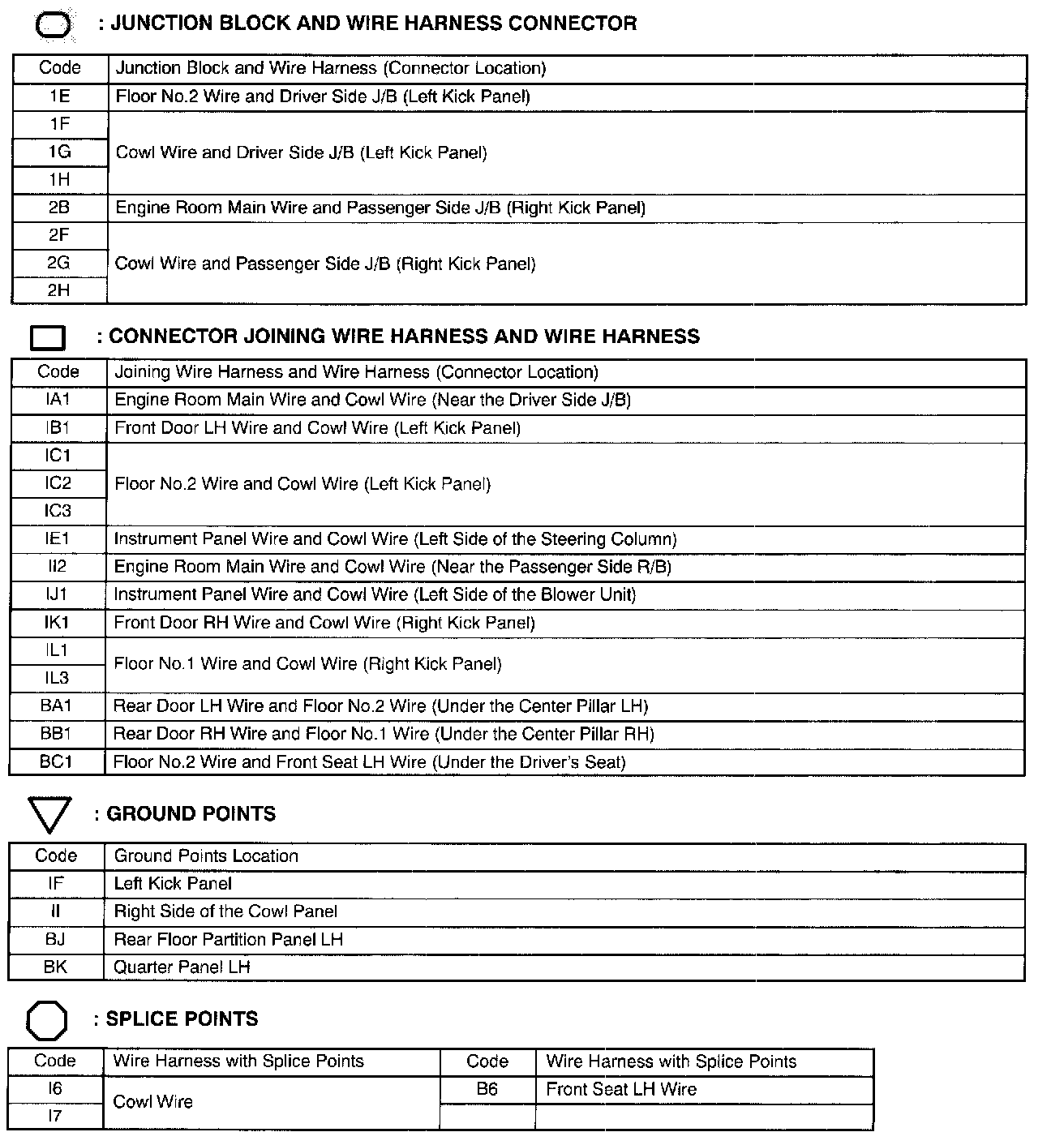

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
