Hood Latch Release Cable: Service and Repair

Hood Lock Control:

REMOVAL

1. REMOVE LH FENDER LINER
2. REMOVE HOOD RELEASE LEVER
3. REMOVE RADIATOR SUPPORT UPPER SEAL
4. REMOVE HOOD LOCK




5. REMOVE HOOD LOCK CONTROL CABLE

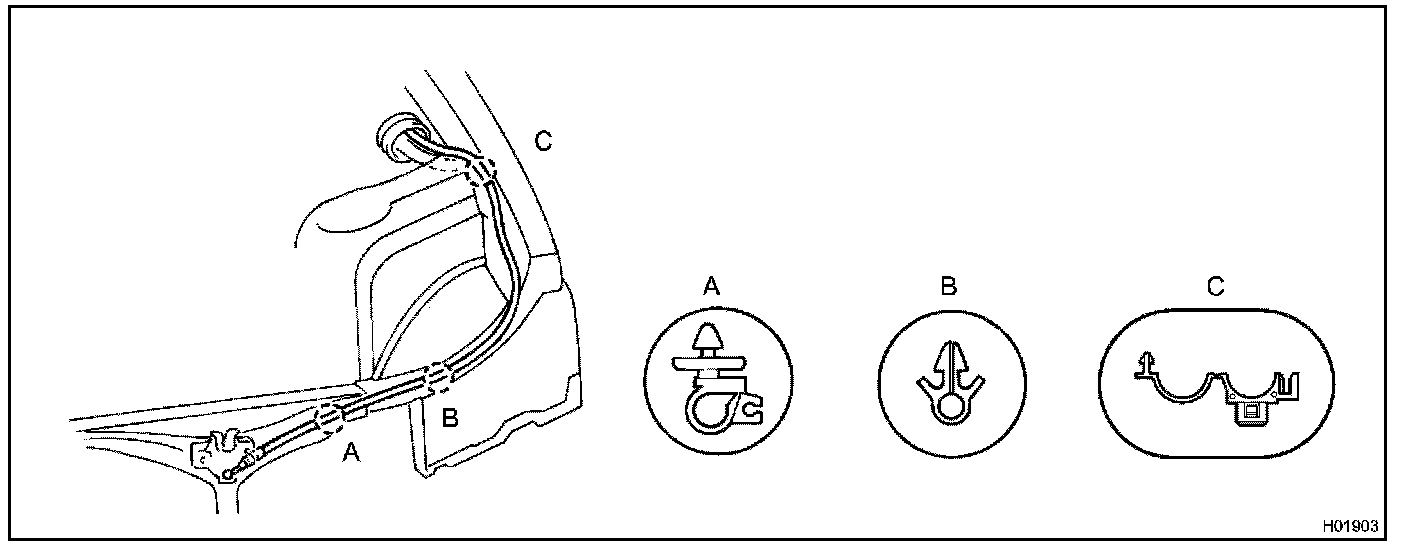

a. Using a screwdriver, disconnect the cable from the clamps.

HINT: Tape the screwdriver tip before use.

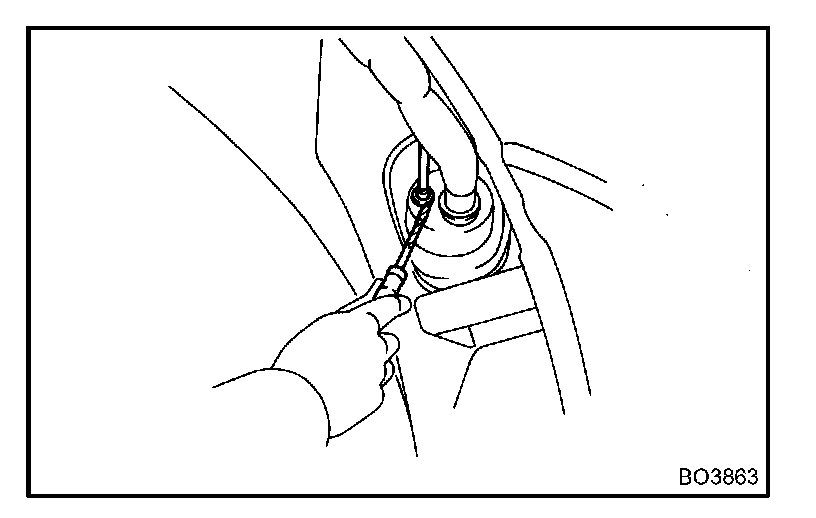

b. Using a screwdriver, pry out the cable stopper from the grommet.

HINT:
- Tape the screwdriver tip before use.
- Do not damage the grommet with the screwdriver.




c. Pull the cable from the front wheel housing to remove it.

INSTALLATION

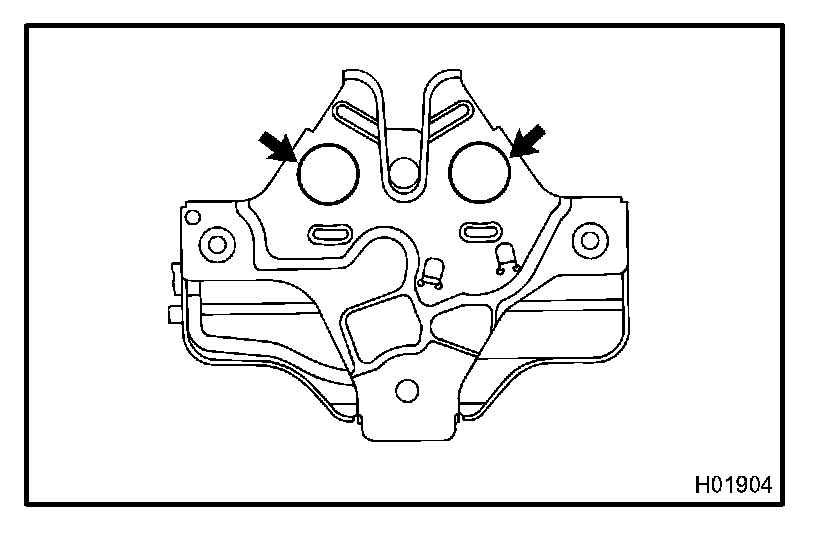

1. BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE
Apply MP grease to the sliding surface of the lock.




2. INSTALL HOOD LOCK CONTROL CABLE

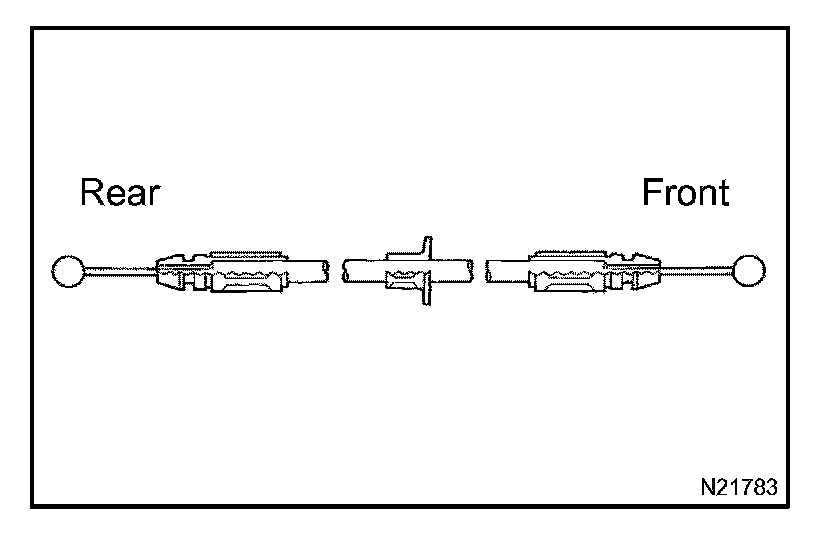

a. Push the rear side cable through the grommet.
b. Using a screwdriver, push the cable stopper into the grommet.

HINT:
- tape the screwdriver tip before use.
- Do not damage the grommet with the screwdriver.

c. Pass the front side cable through the upper radiator support.
d. Install the cable with clamps.

3. INSTALL HOOD RELEASE LEVER
4. CHECK HOOD LOCK CONTROL FOR PROPER OPERATION
After checking for proper operation, tighten the 3 bolts to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

5. INSTALL RADIATOR SUPPORT UPPER SEAL
6. INSTALL LH FENDER LINER
