Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION

Door lock control switch circuit can be checked using DTC check.

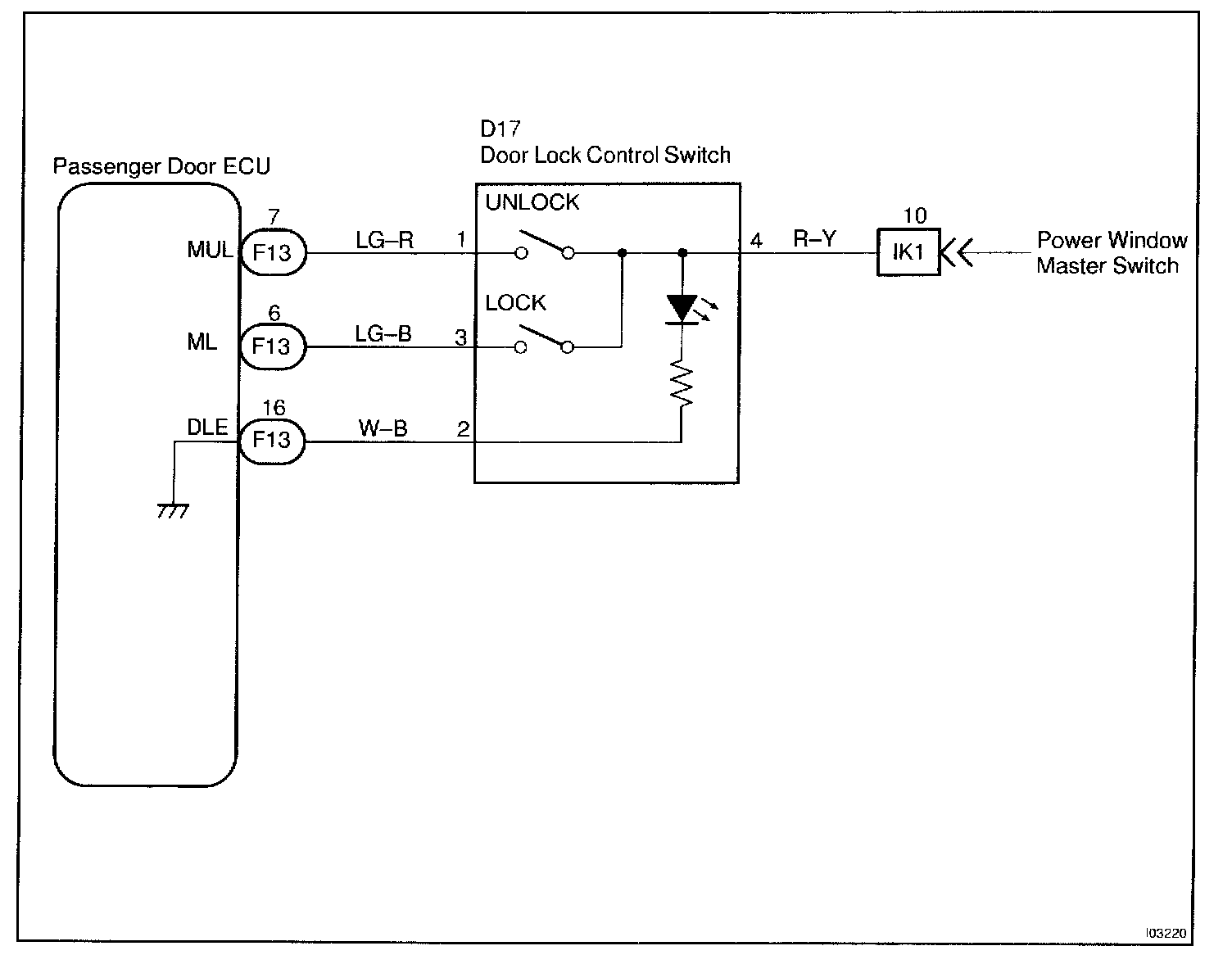

Wiring Diagram:

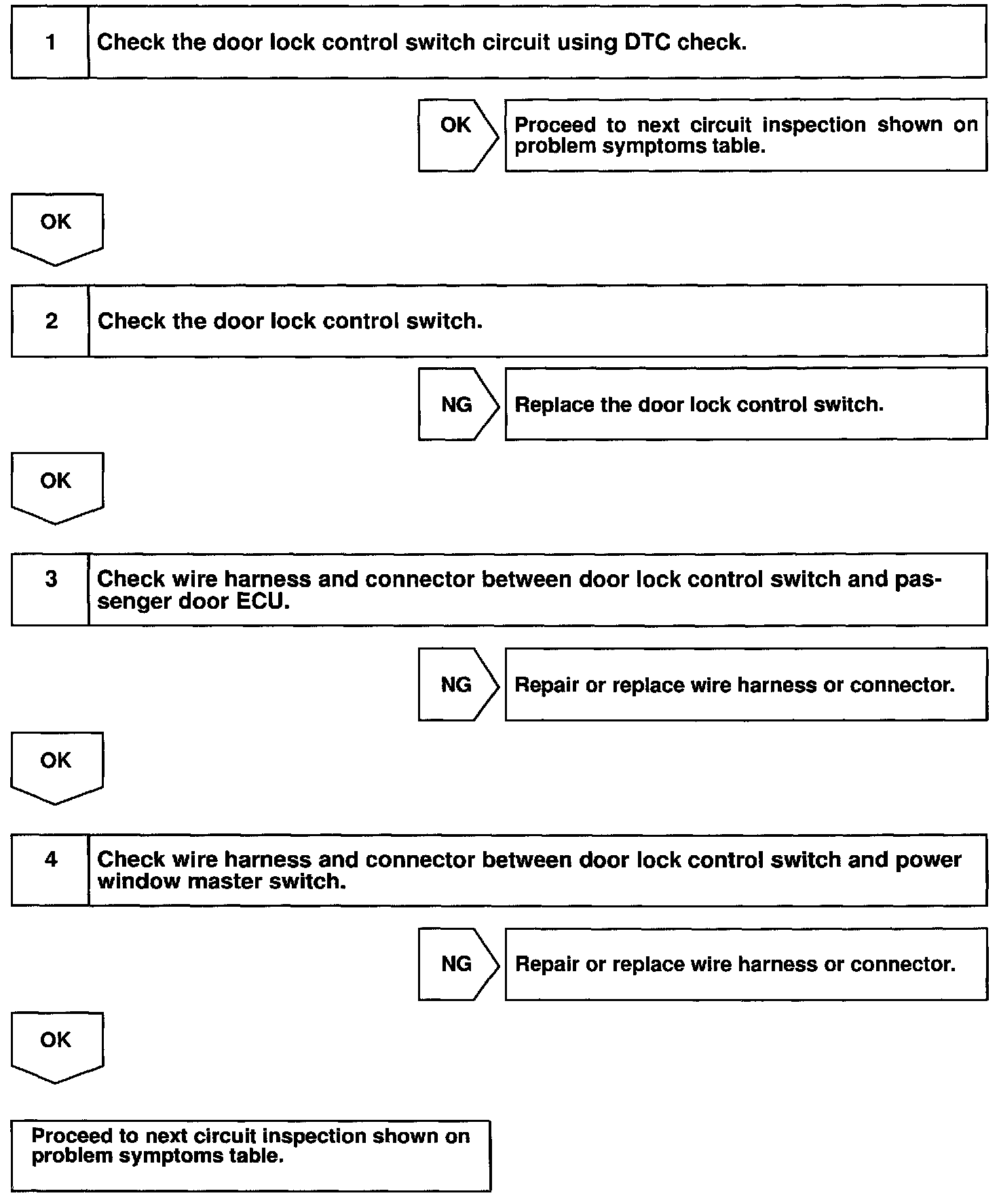

Step 1 - 4:




INSPECTION PROCEDURE
