Lamp Failure Sensor Circuit

CIRCUIT DESCRIPTION

Lamp failure sensor detects a wire break of the stop light, high mount stop light and tail light and sends that signal to the Body ECU No. 2.

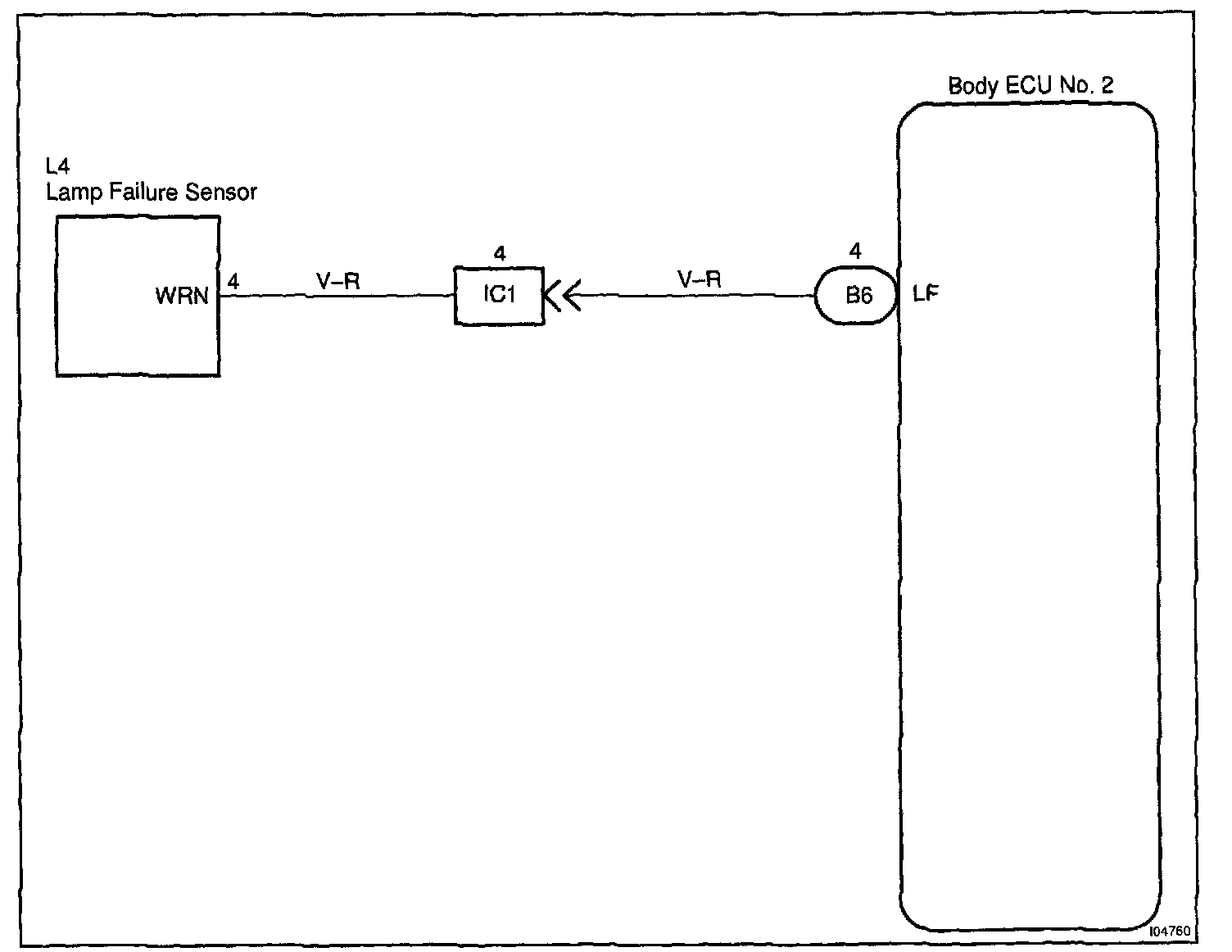

Wiring Diagram:

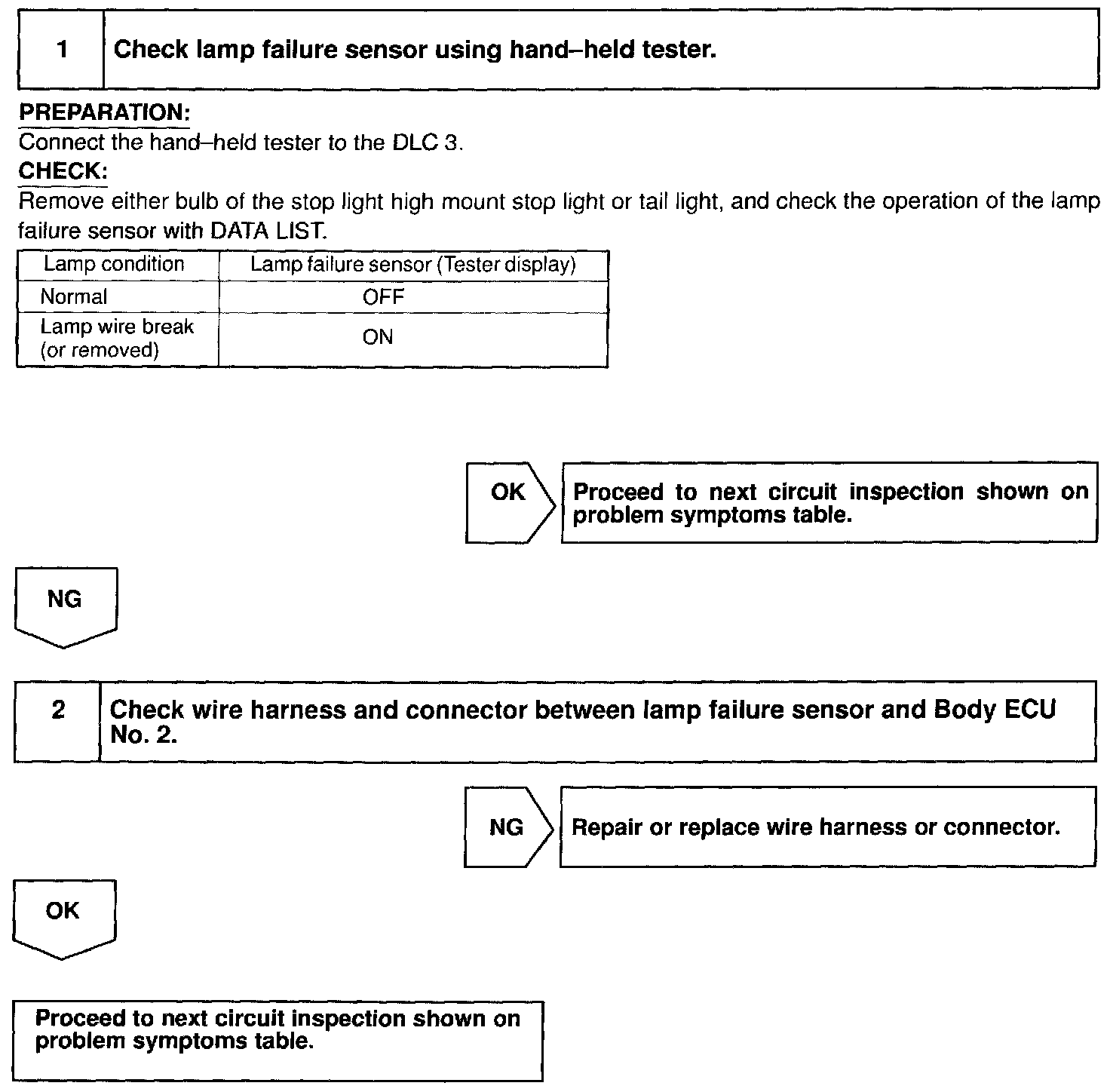

Step 1 - 2:

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
