Generator L Terminal Circuit (W/ DRL Vehicle Only)

CIRCUIT DESCRIPTION

Body ECU No. 2 receives the generator L signal from ECM through communication and outputs it to the Day time running light relay.

Day time running light relay judges whether the engine rotates or not with this generator L signal and makes the Day time running light turn ON and OFF.

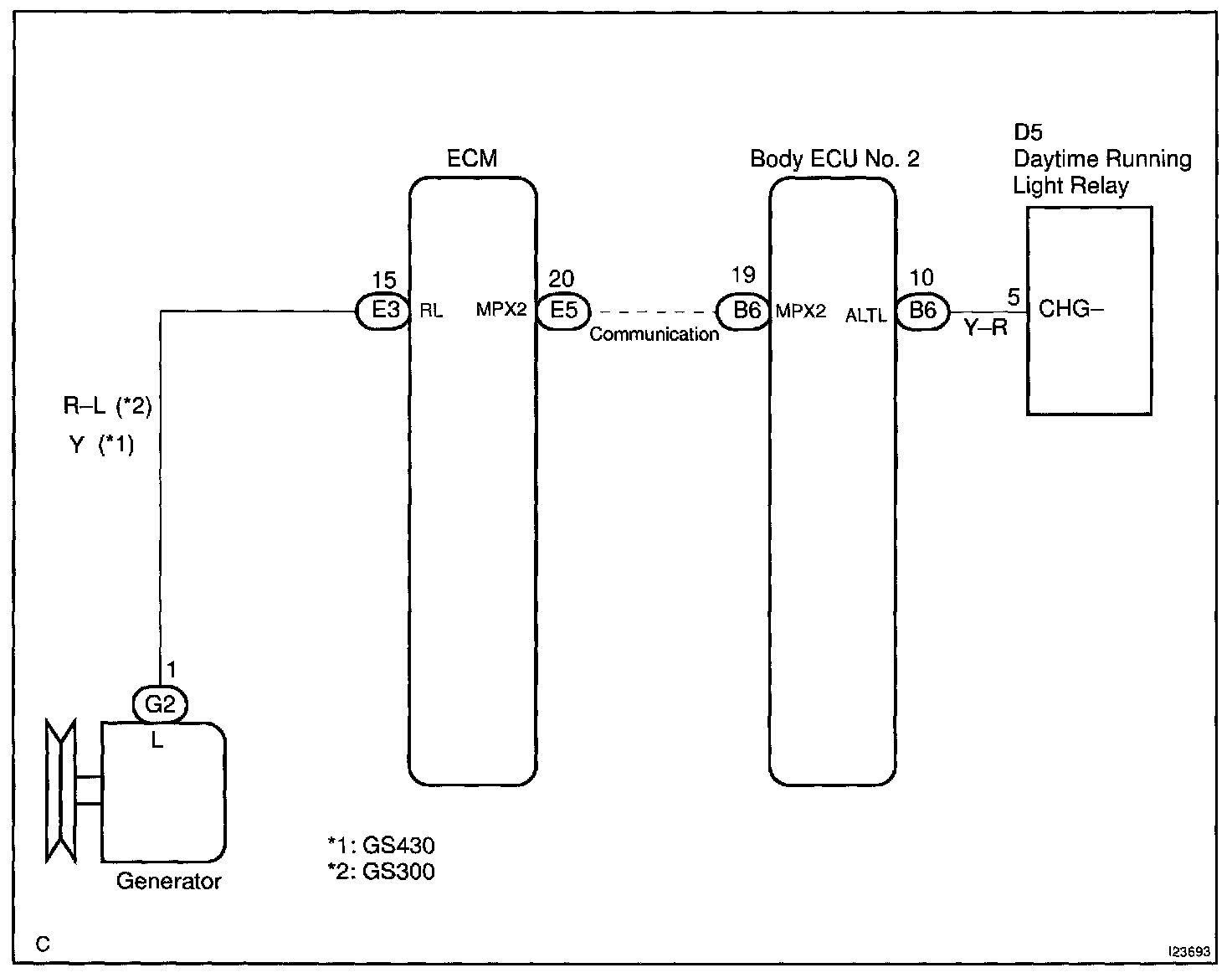

Wiring Diagram:

Step 1 - 2:

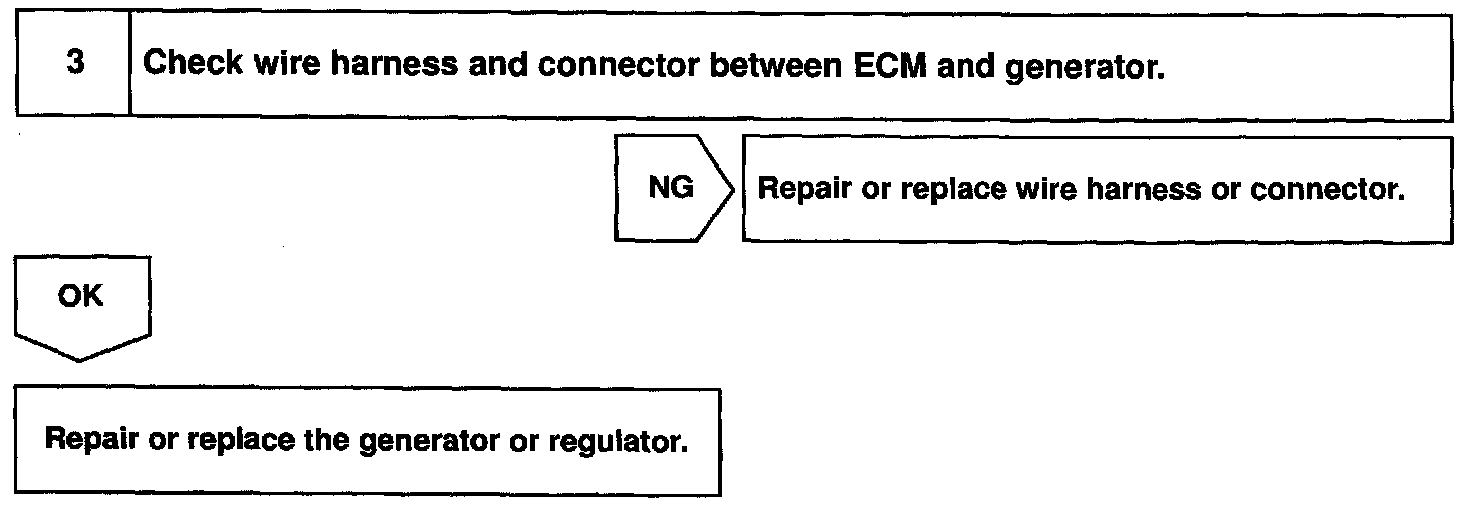

Step 3:

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
