PWS Circuit
CIRCUIT DESCRIPTIONThis circuit is the power source of the master switch for the driver's door and the door lock switch for the passenger's doors.
Wiring Diagram:

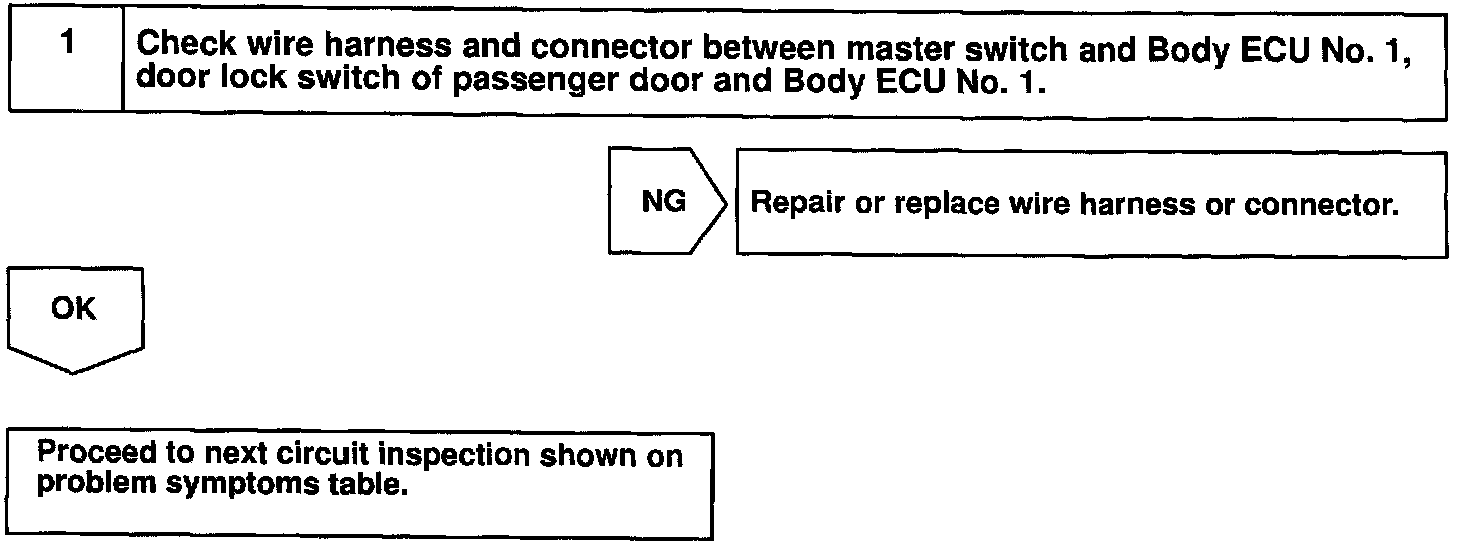

Step 1:
INSPECTION PROCEDURE
This circuit is the power source of the master switch for the driver's door and the door lock switch for the passenger's doors.
INSPECTION PROCEDURE
