Hazard Switch Circuit

CIRCUIT DESCRIPTION

Body ECU No. 1 activates the flasher relay during warning of the theft deterrent system and flashers the hazard.

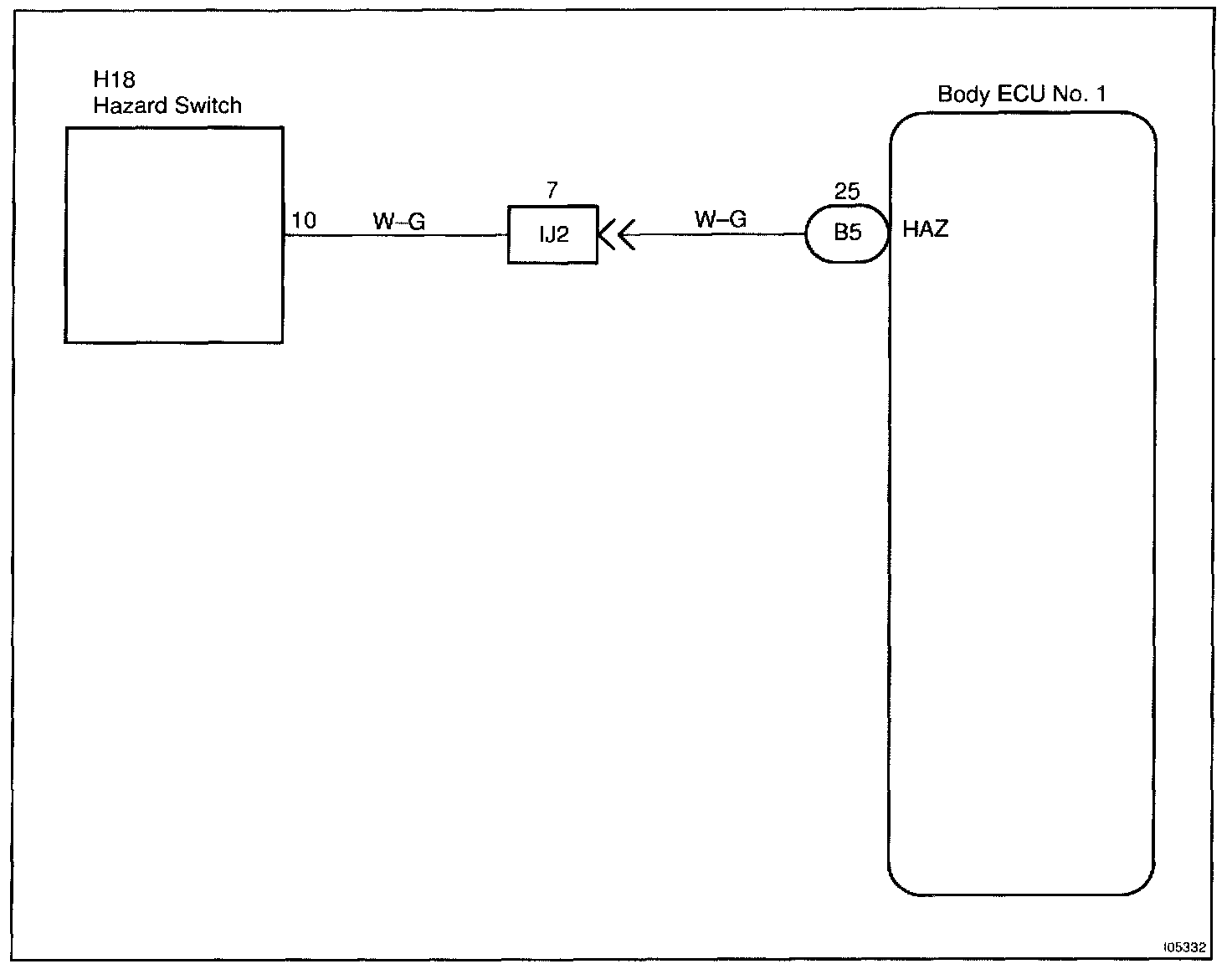

Wiring Diagram:

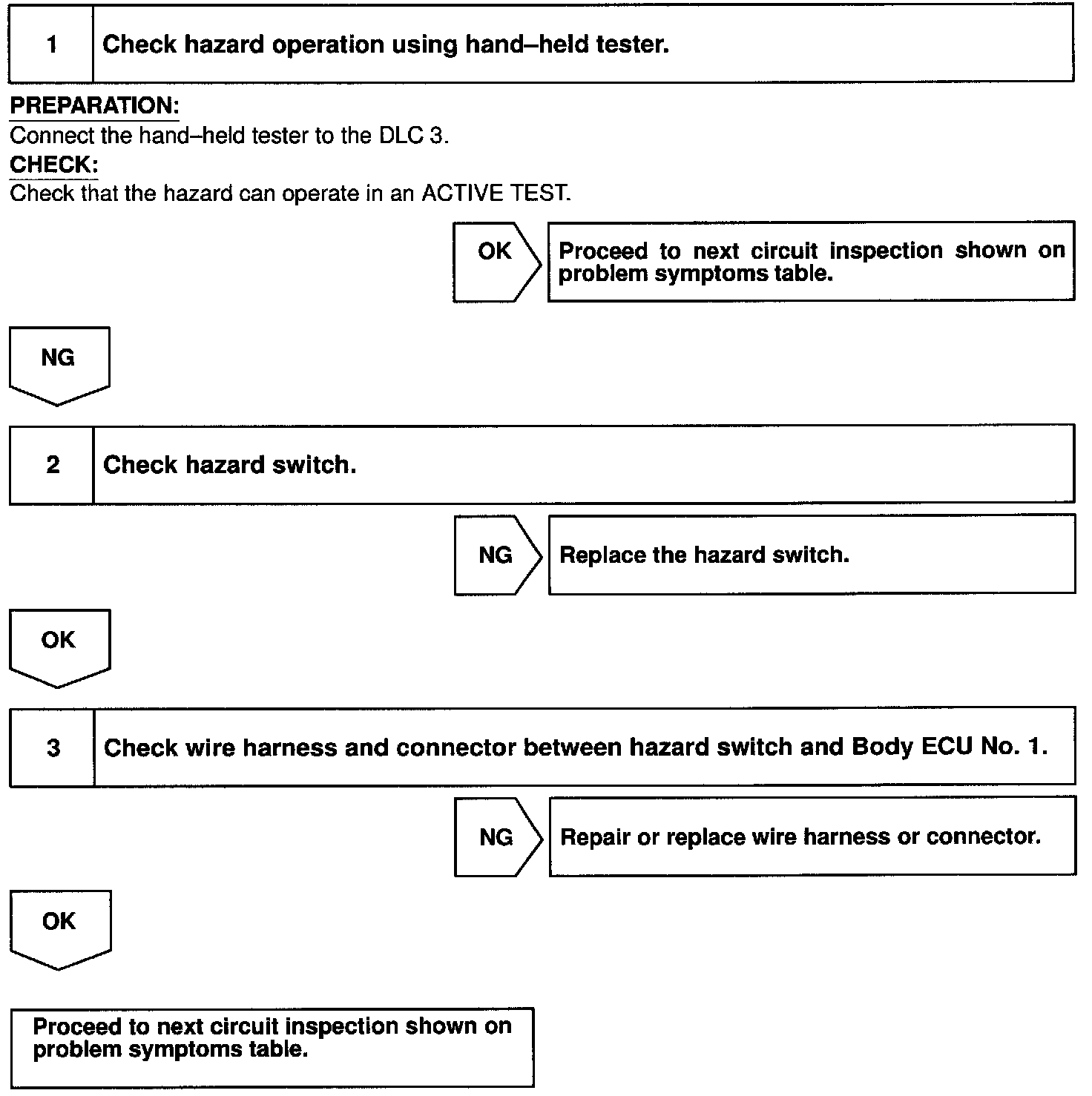

Step 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
