5 - No Navigation Displayed and No Audio Sound
5 - No Navigation Displayed and No Audio Sound
5. No navigation displayed, "Audio OFF" on audio screen and no audio sound.
Step 1 - 3:

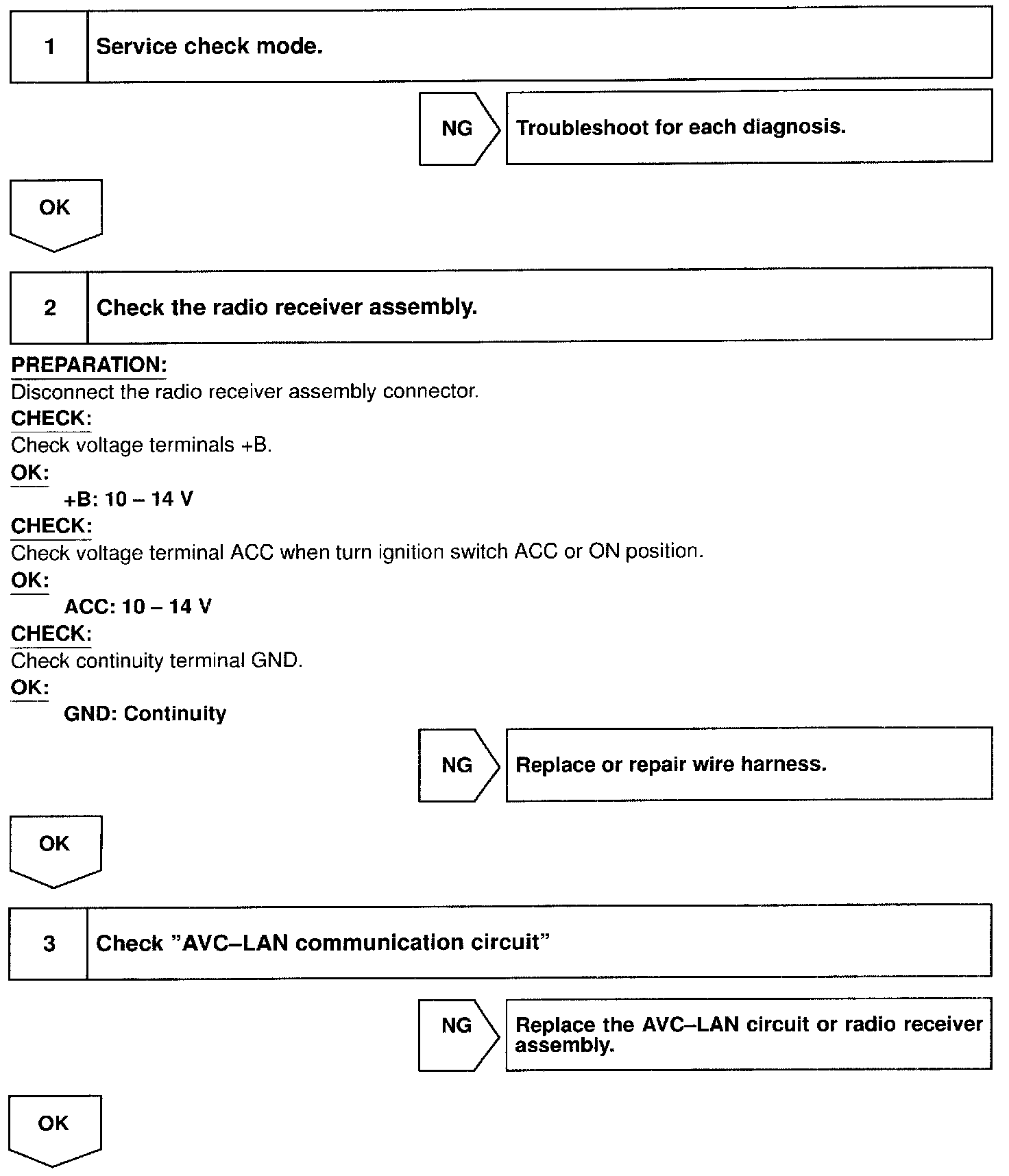

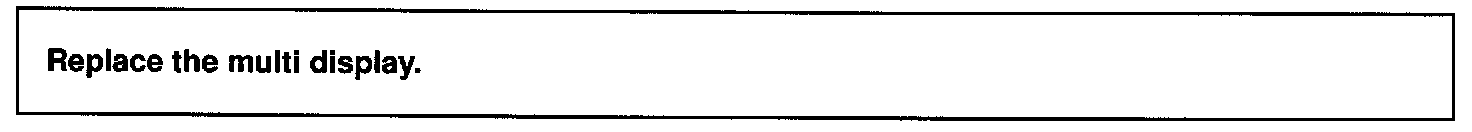

INSPECTION PROCEDURE
