4 - No Corresponding Screen Displayed When Switches Pressed
4 - No Corresponding Screen Displayed When Switches Pressed
4. No corresponding screen displayed when "Audio" or "Information" switch pressed.

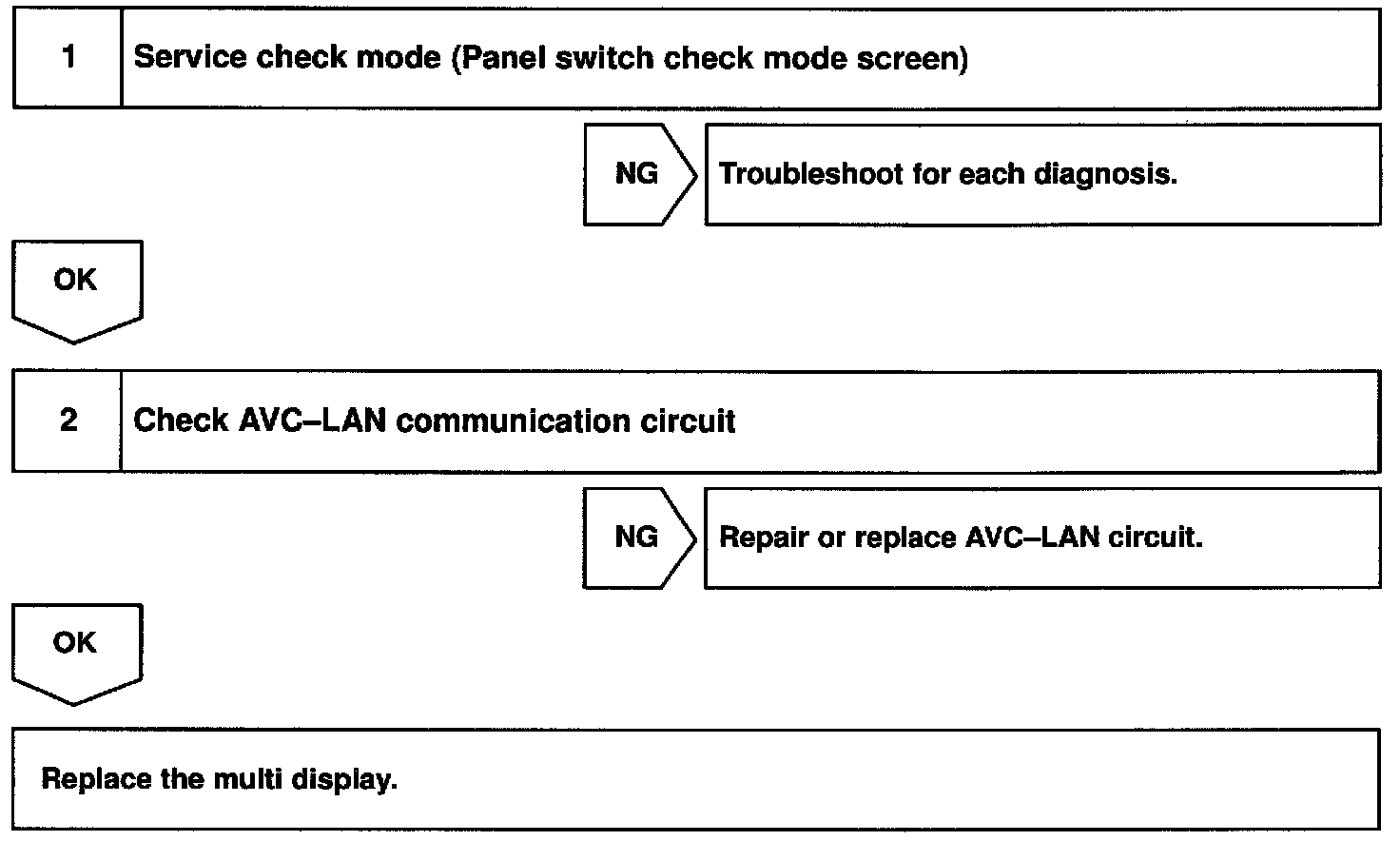

Step 1 - 2:
INSPECTION PROCEDURE
