38 - No Power Coming, But Woofer Amplifier Not Operating
38 - No Power Coming, But Woofer Amplifier Not Operating
38. No power coming, but woofer
amplifier
not operating.

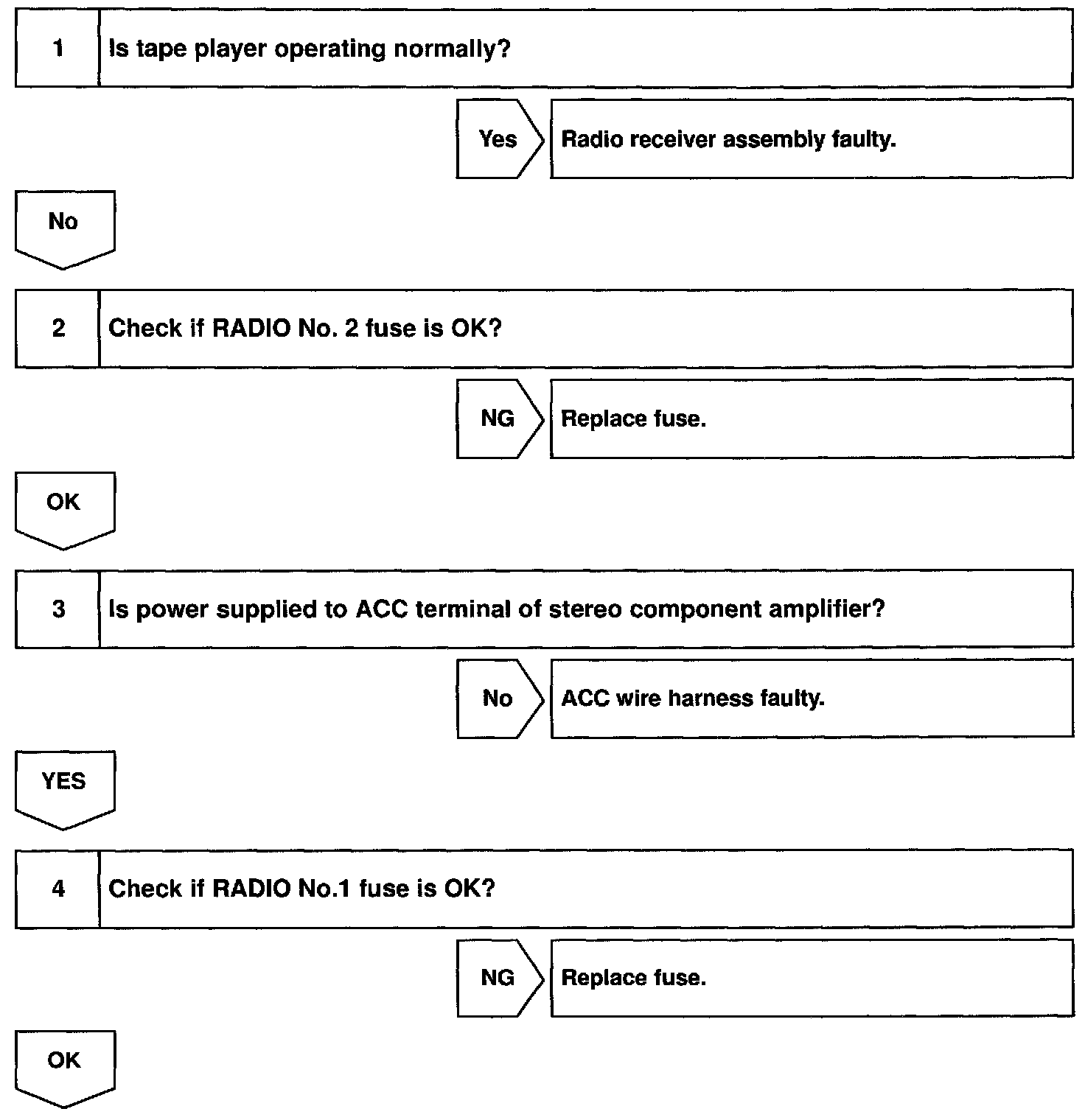

Step 1 - 4:

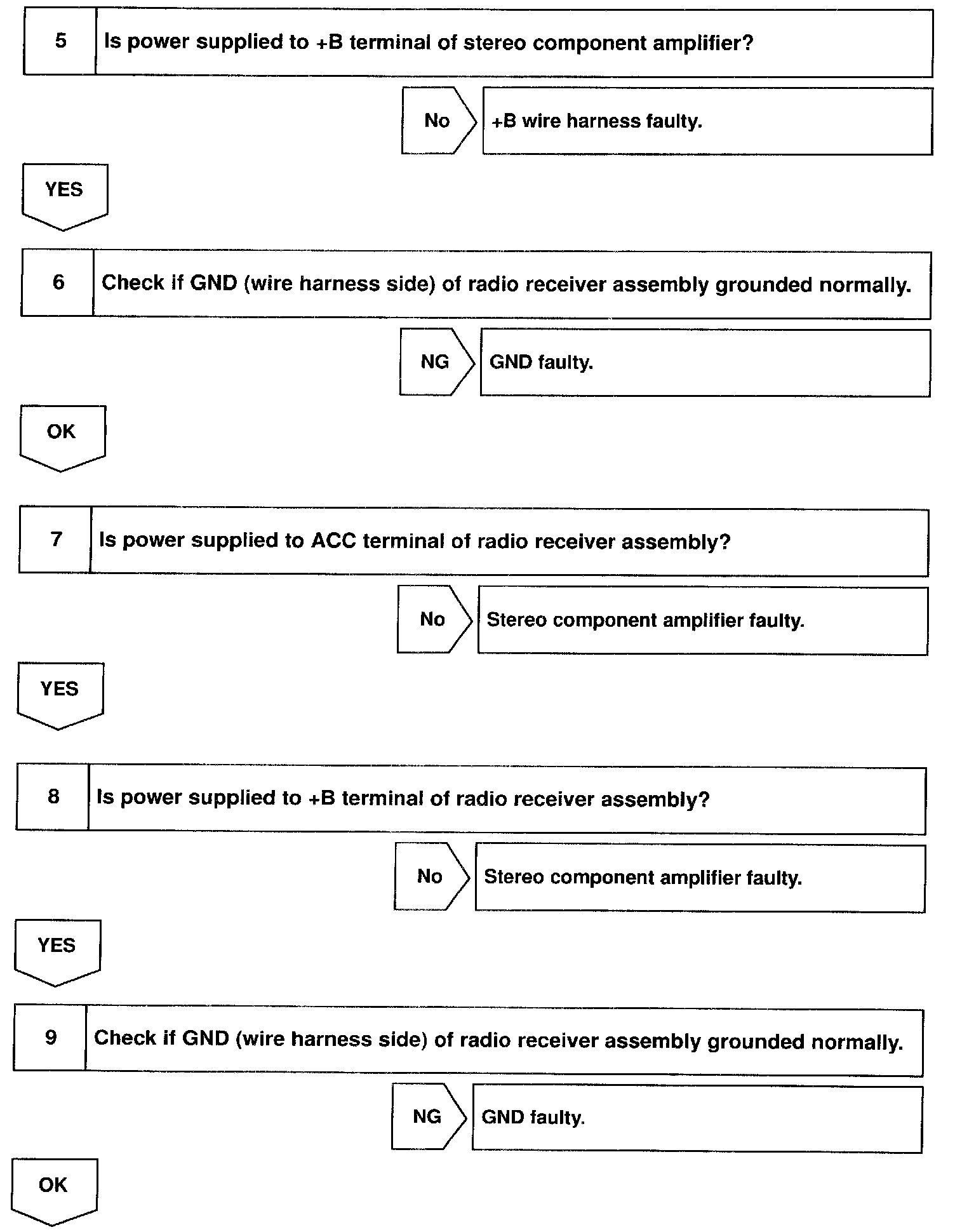

Step 5 - 9:
Step 10 - 12:
INSPECTION PROCEDURE
