3 - No Navigation Screen Displayed When Switches Pressed

3. No navigation screen displayed when "MAP", "Menu", or "DEST' switch pressed. (Screen cannot be switched.)

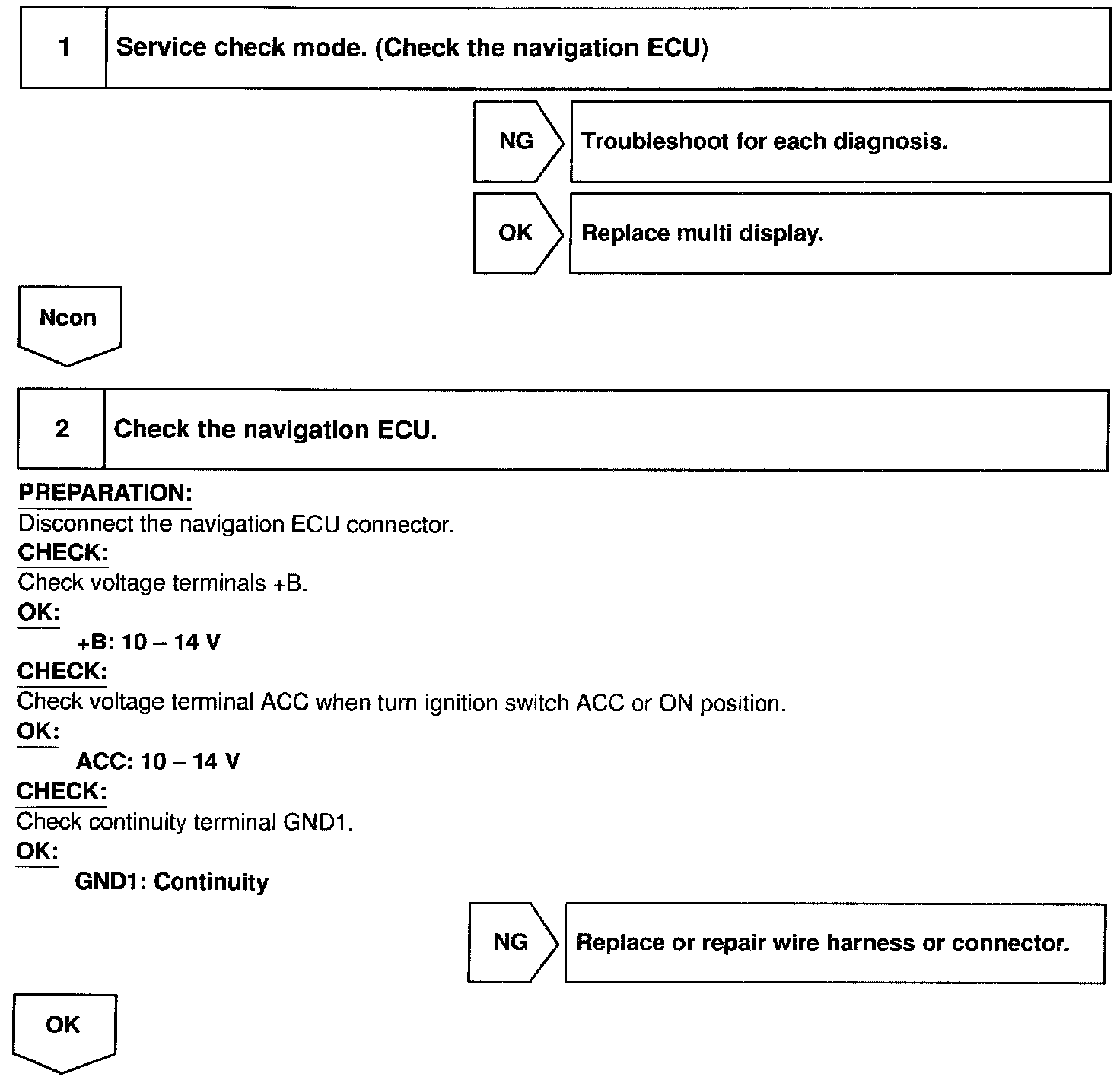

Step 1 - 2:

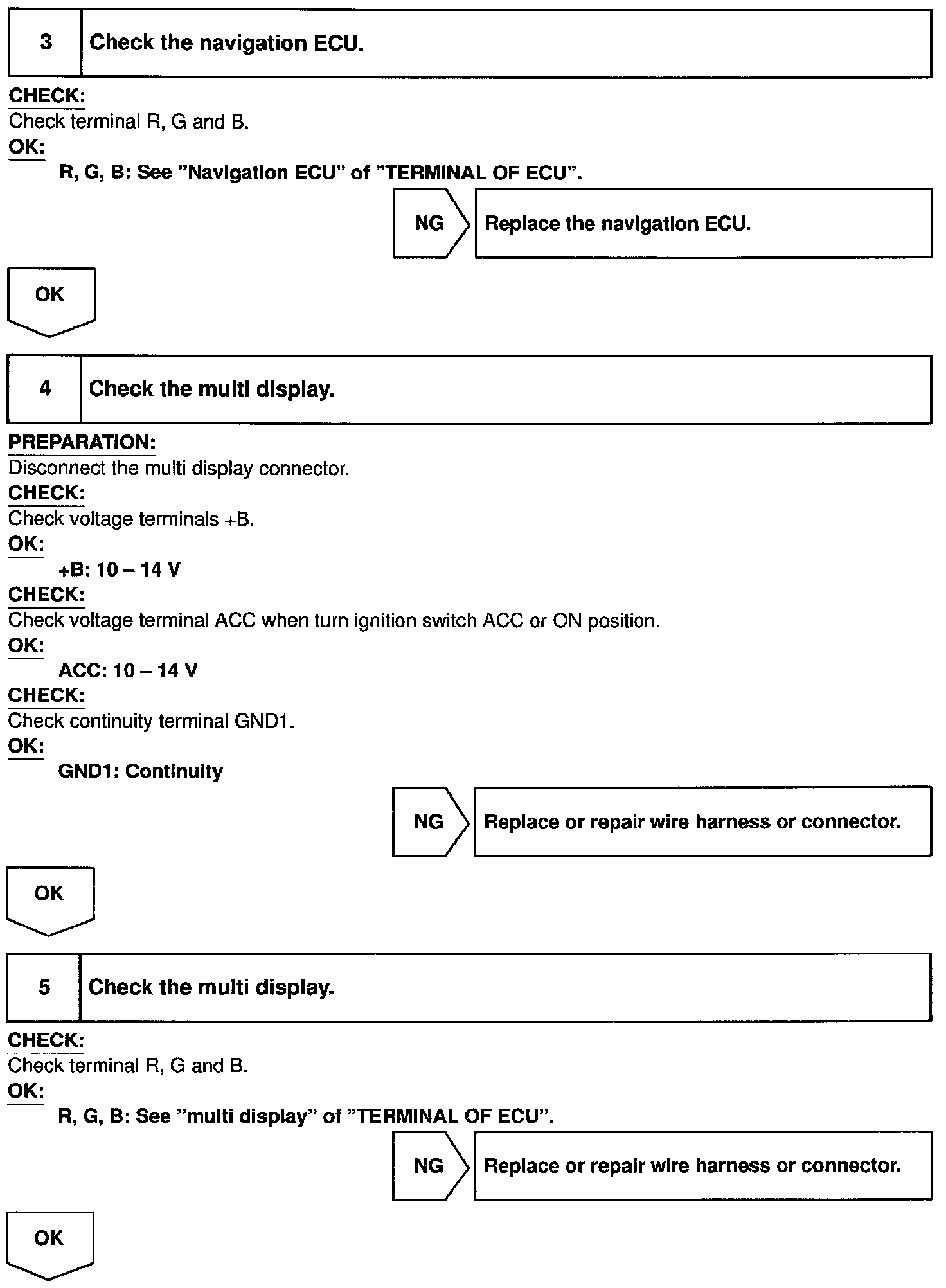

Step 3 - 5:

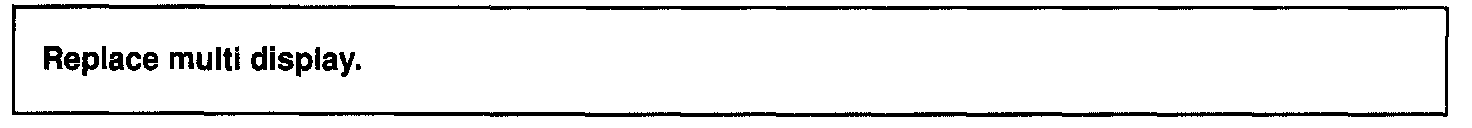

Step 5 (continued):




INSPECTION PROCEDURE
