29 - CD Magazine Cannot Be Inserted

29. CD magazine cannot be inserted

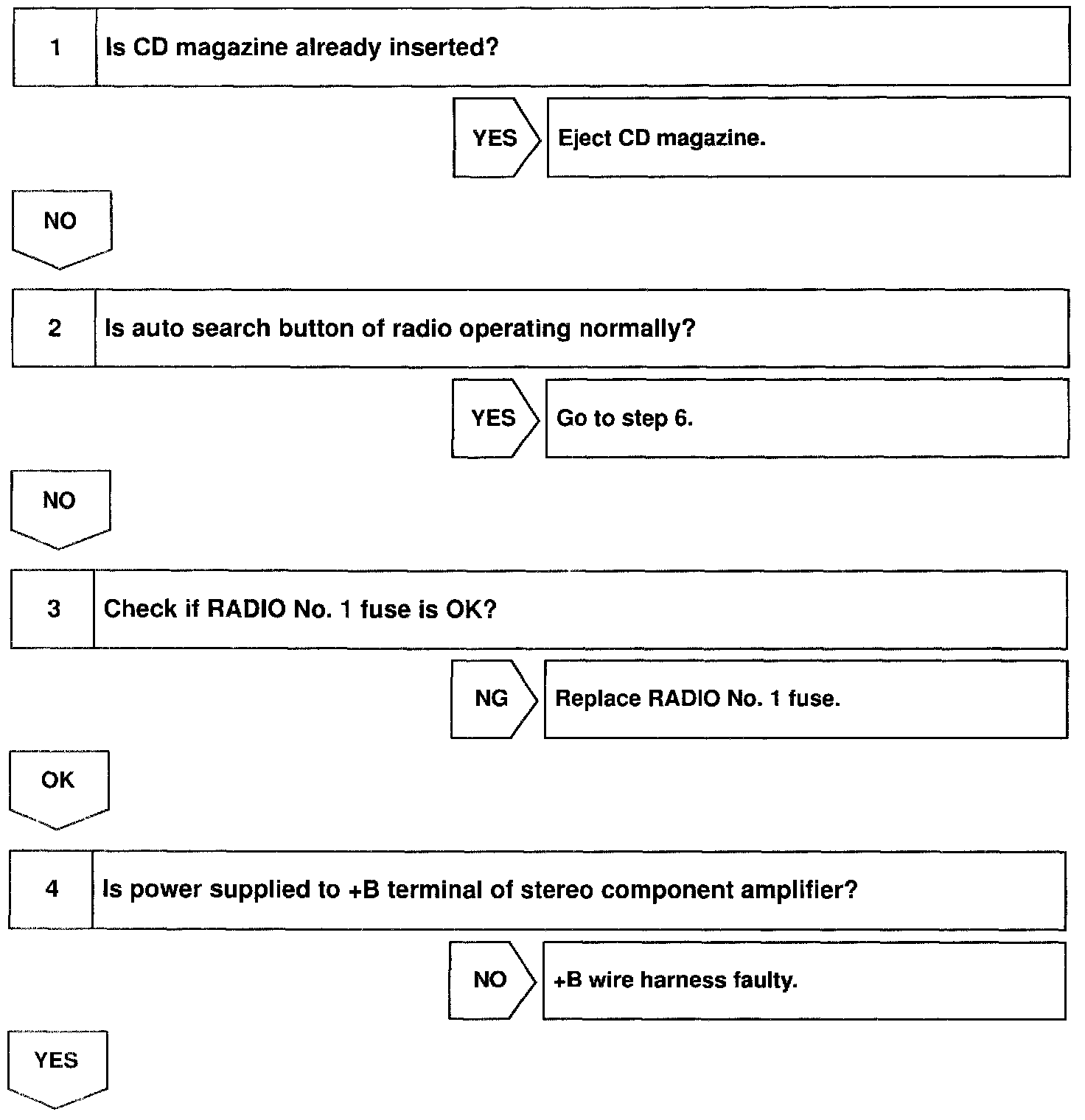

Step 1 - 4:

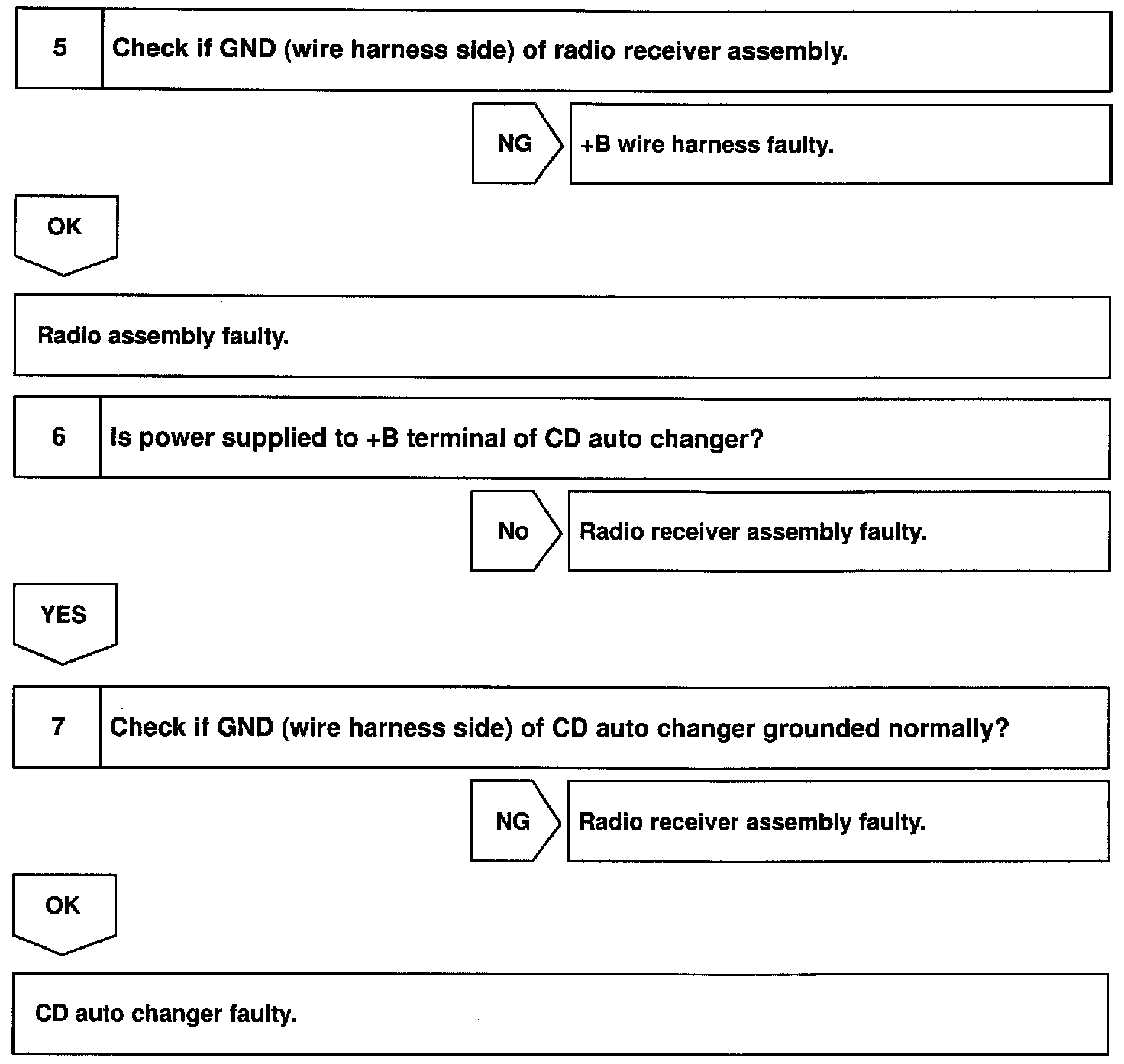

Step 5 - 7:




INSPECTION PROCEDURE
