21 - GPS Mark Does Not Appear

21. GPS mark does not appear.

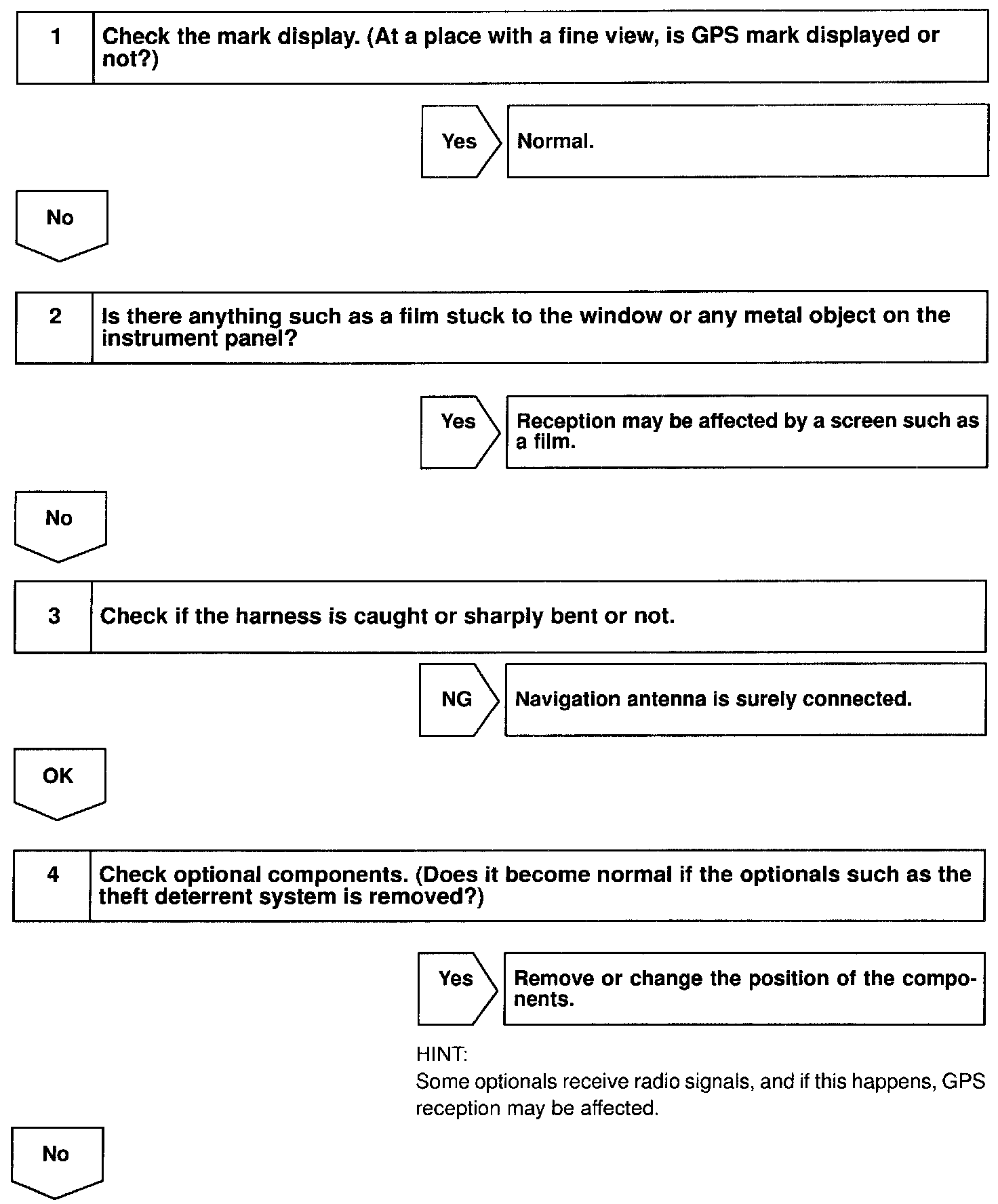

Step 1 - 4:

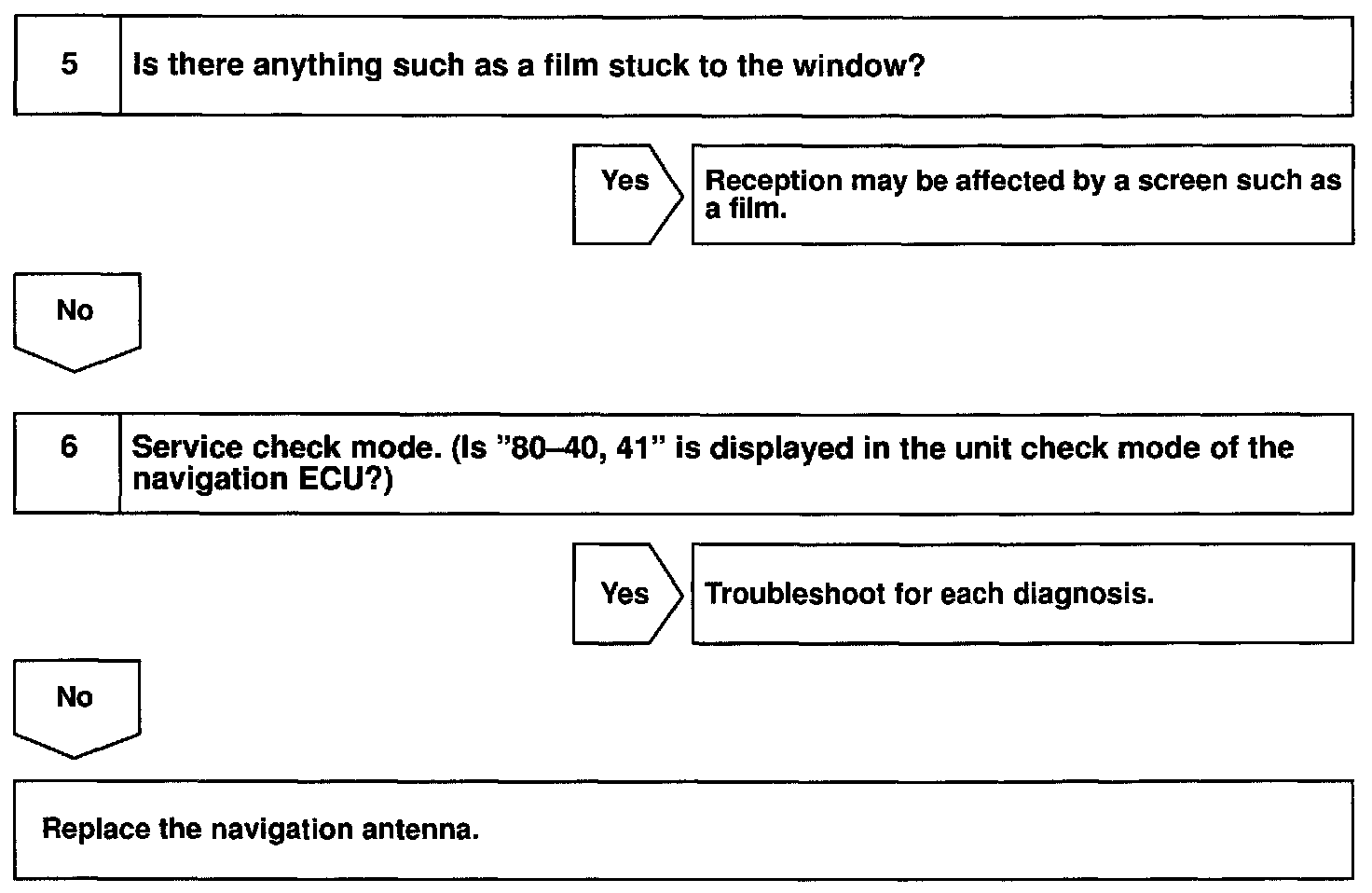

Step 5 - 6:




INSPECTION PROCEDURE

HINT: If the trouble still occurs, replace the navigation ECU.
