20 - Vehicle Position Is Deviated From Correct Point Badly

20. Vehicle position is deviated from correct point badly.

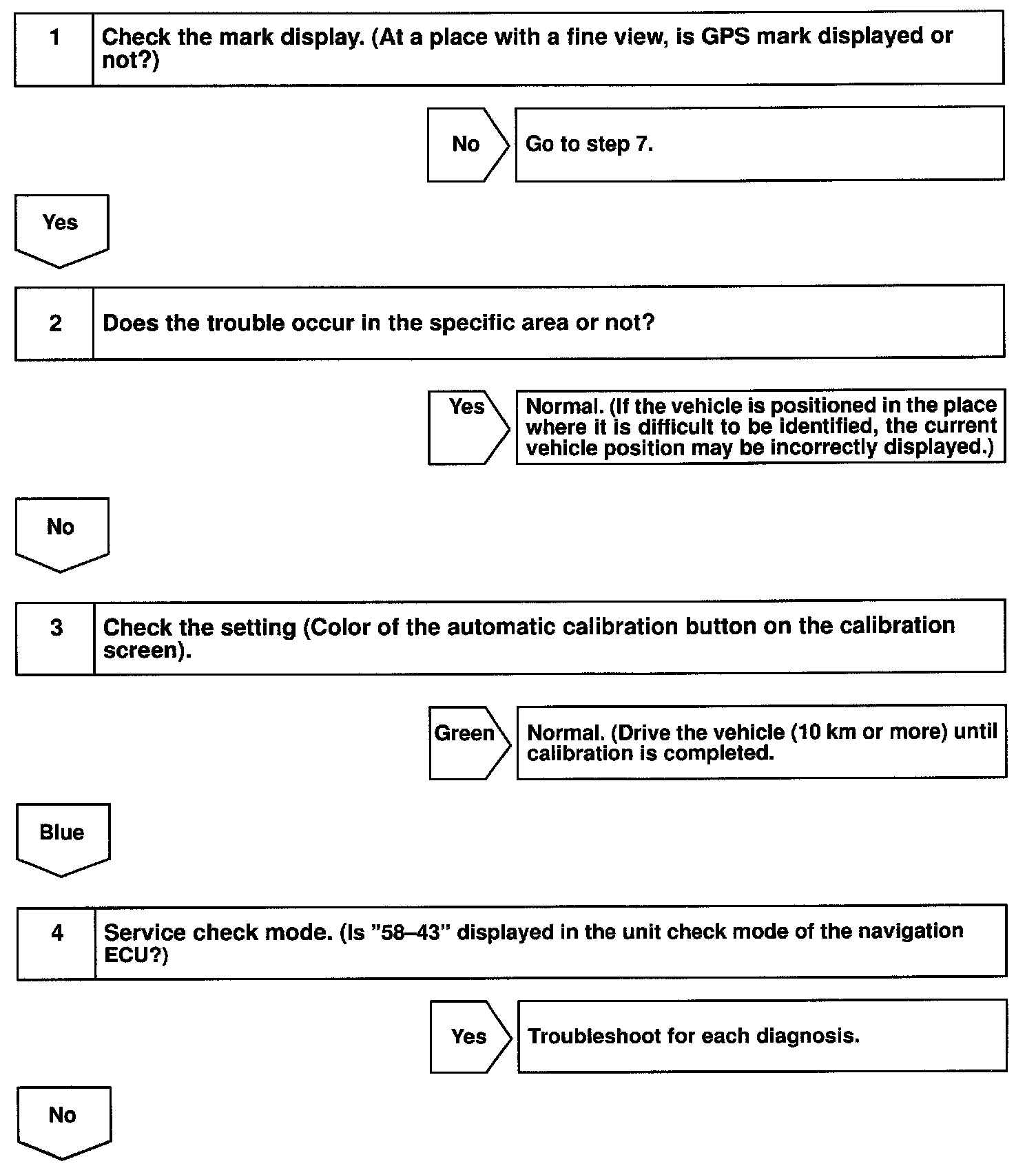

Step 1 - 4:

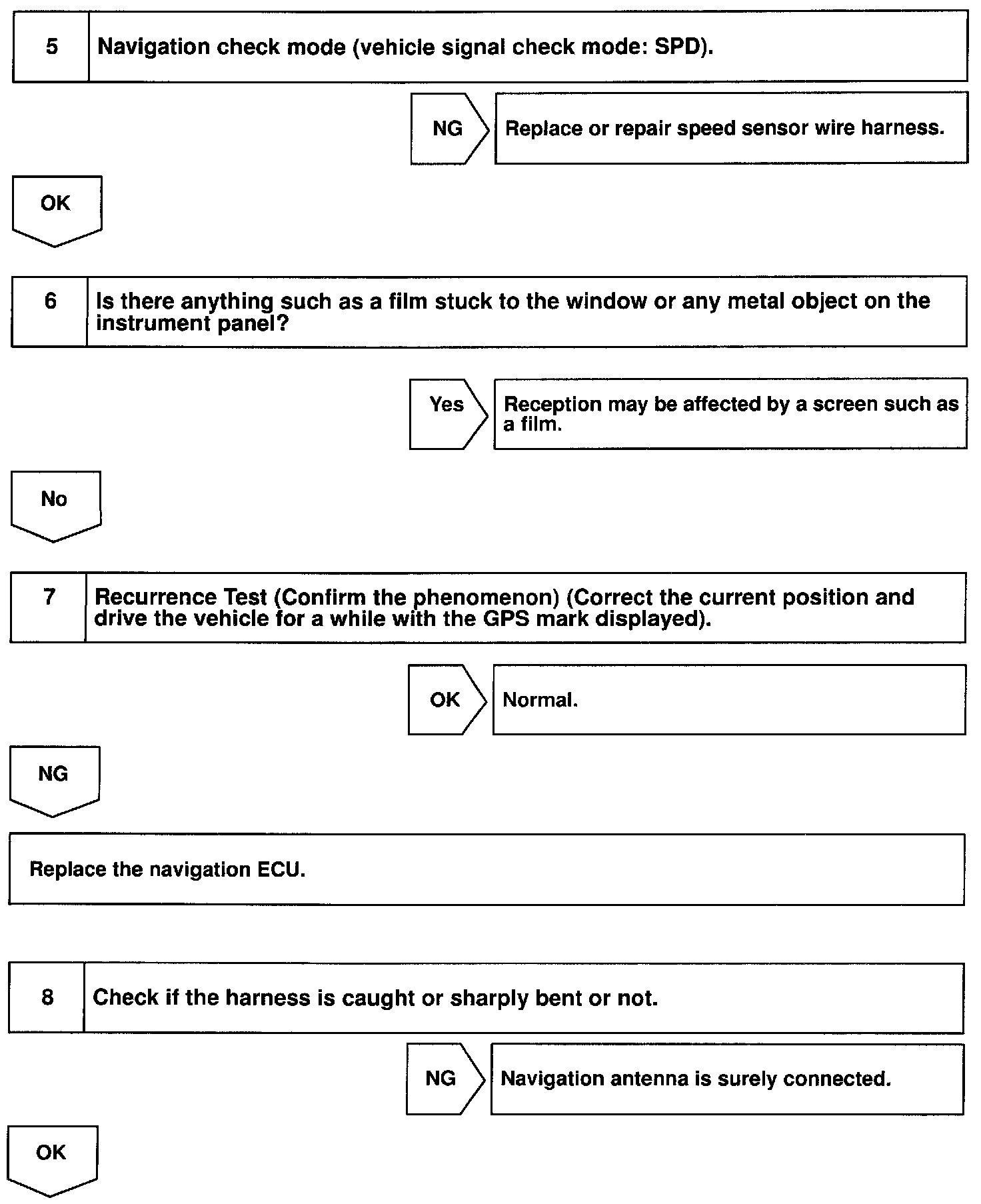

Step 5 - 8:

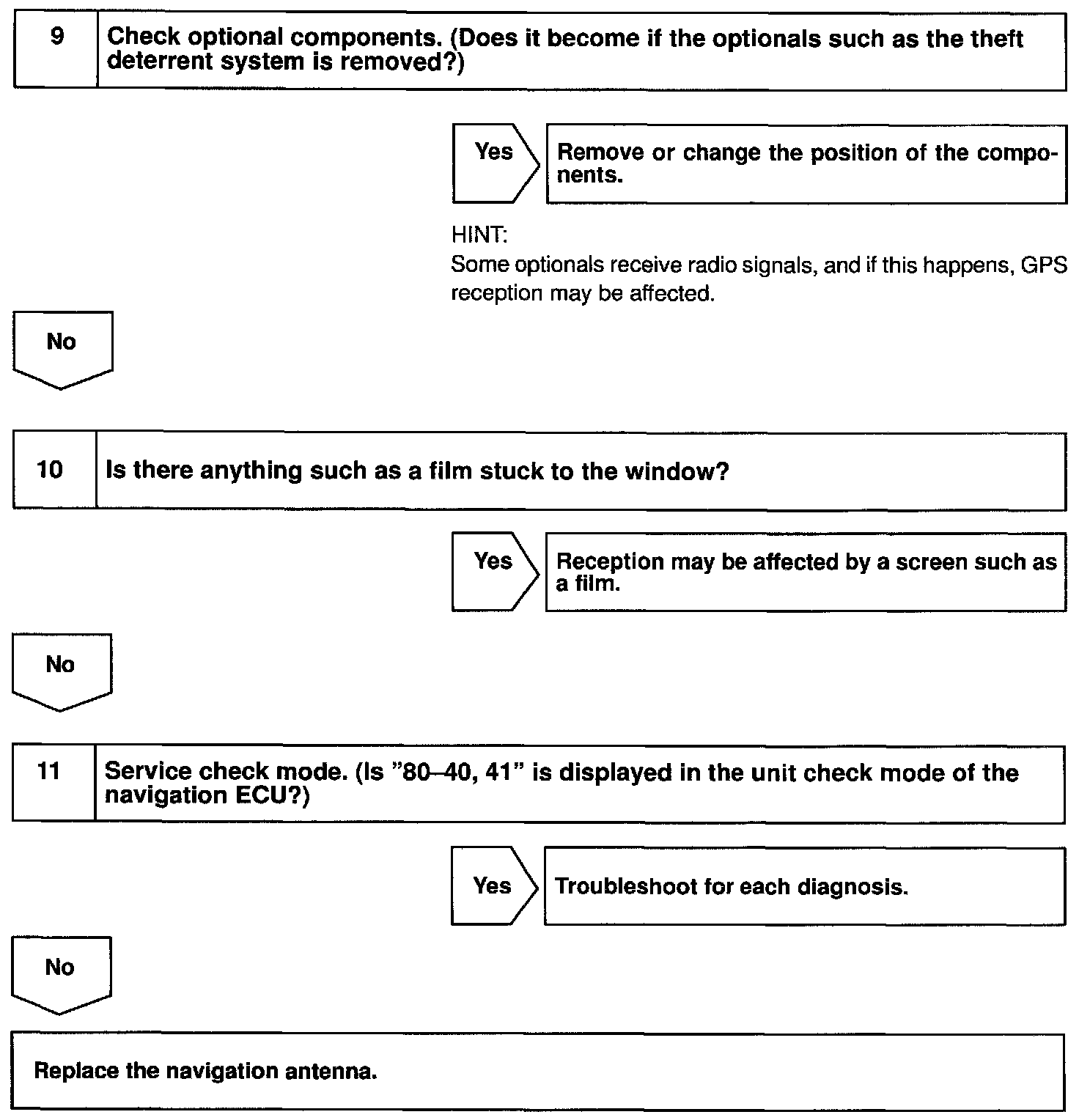

Step 9 - 11:

INSPECTION PROCEDURE

HINT: If the trouble still occurs, replace the navigation ECU.
