Theft Deterrent System

THEFT DETERRENT SYSTEM

INSPECTION




1. INSPECT THEFT DETERRENT INDICATOR LIGHT OPERATION

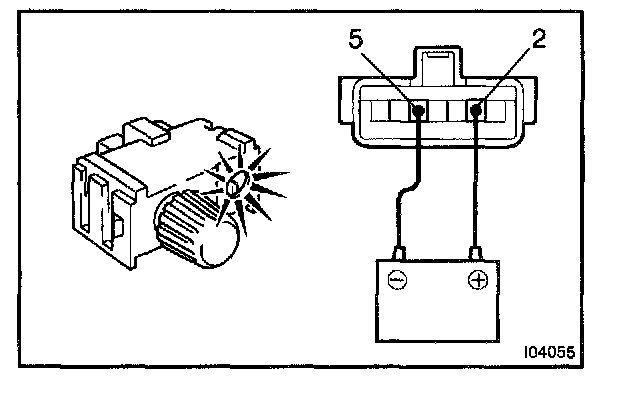

Connect the positive (+) lead from the battery terminal 2 and negative (-) lead to terminal 5, and check that the warning light lights up.
If operation is not as specified, replace the light control rheostat.

2. INSPECT THEFT DETERRENT INDICATOR LIGHT CIRCUIT




3. INSPECT THEFT DETERRENT HORN OPERATION

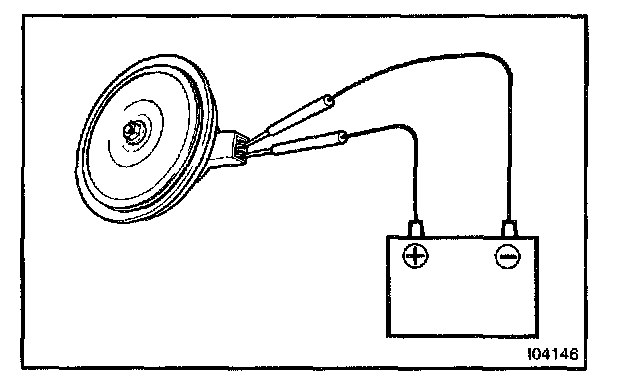

Connect the positive (+) lead from the battery to the terminal 1 and negative (-) lead to theft deterrent horn body, and check that the theft deterrent horn blows.
If operation is not as specified, replace the horn.

4. INSPECT THEFT DETERRENT HORN CIRCUIT

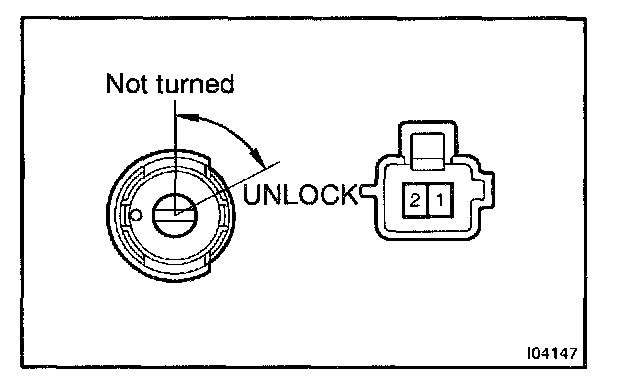

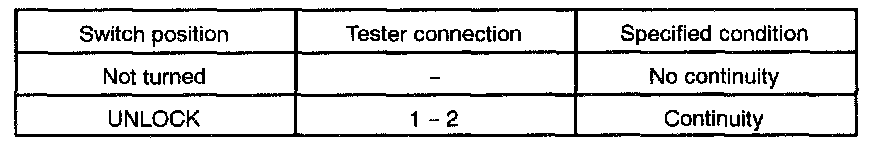

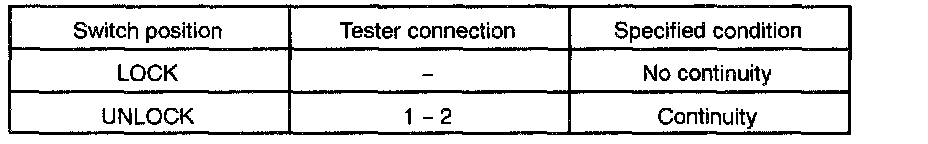

5. INSPECT LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

6. INSPECT LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CIRCUIT

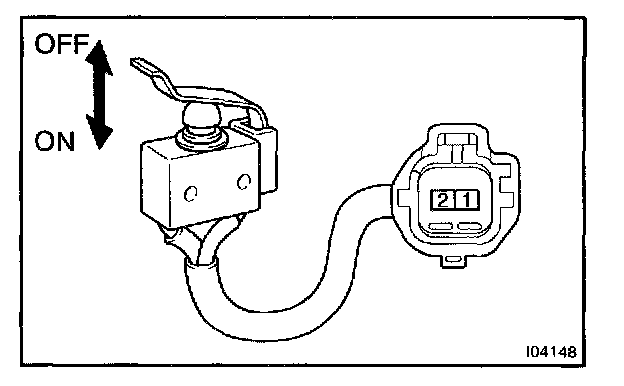

7. INSPECT ENGINE HOOD COURTESY SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

8. INSPECT ENGINE HOOD COURTESY SWITCH CIRCUIT
