Troubleshooting

DTC P0982 Shift Solenoid "D" Control Circuit Low (Shift Solenoid Valve S4)

CIRCUIT DESCRIPTION

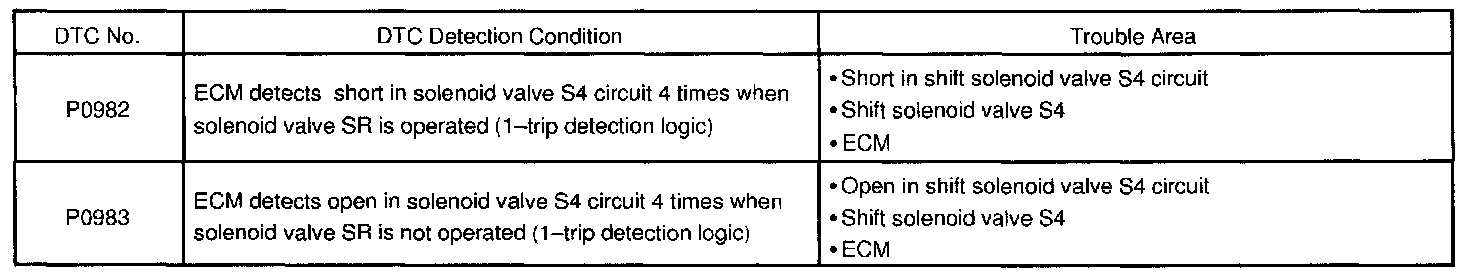

DTC Detection Condition:

Shift solenoid valve No. 4 is controlled by ECM and it switches ON and OFF of the O/D direct switch.

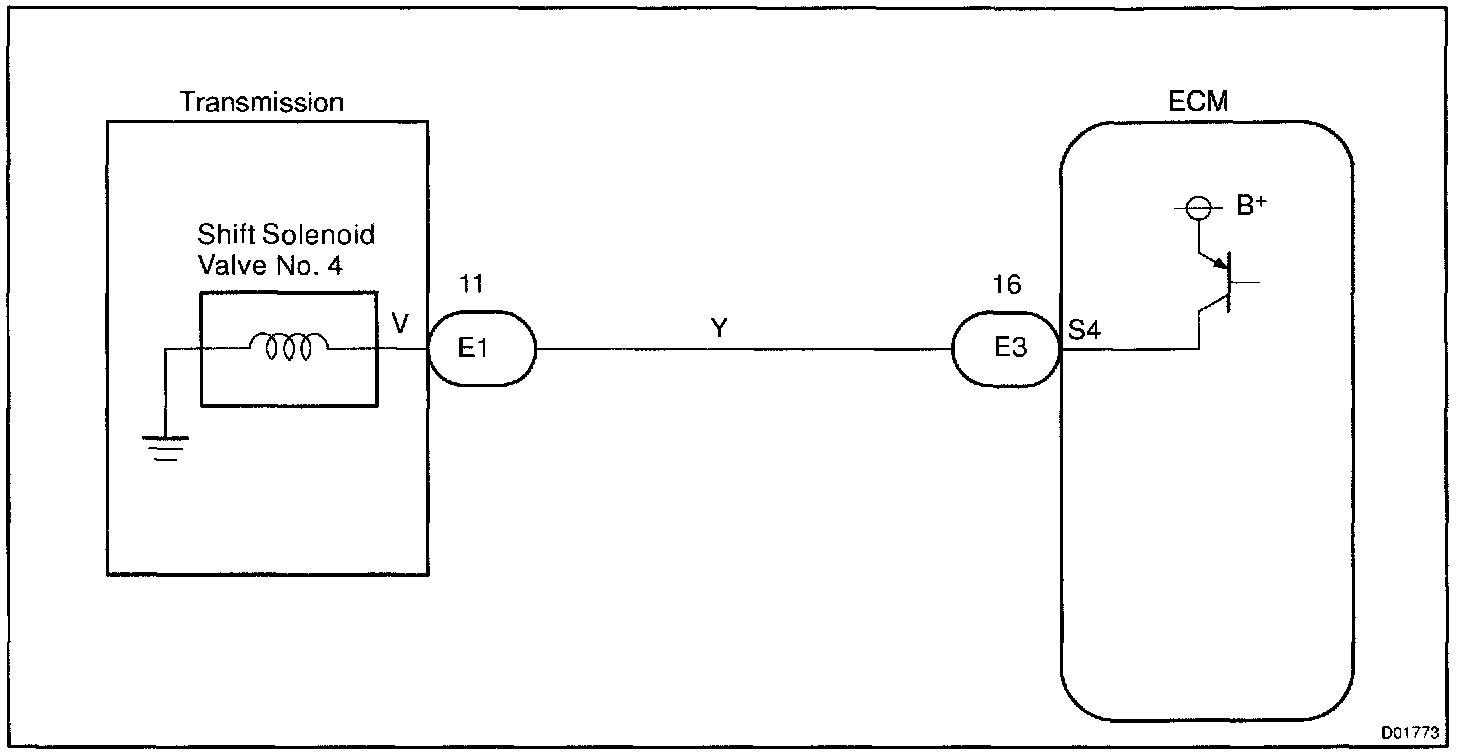

Wiring Diagram:

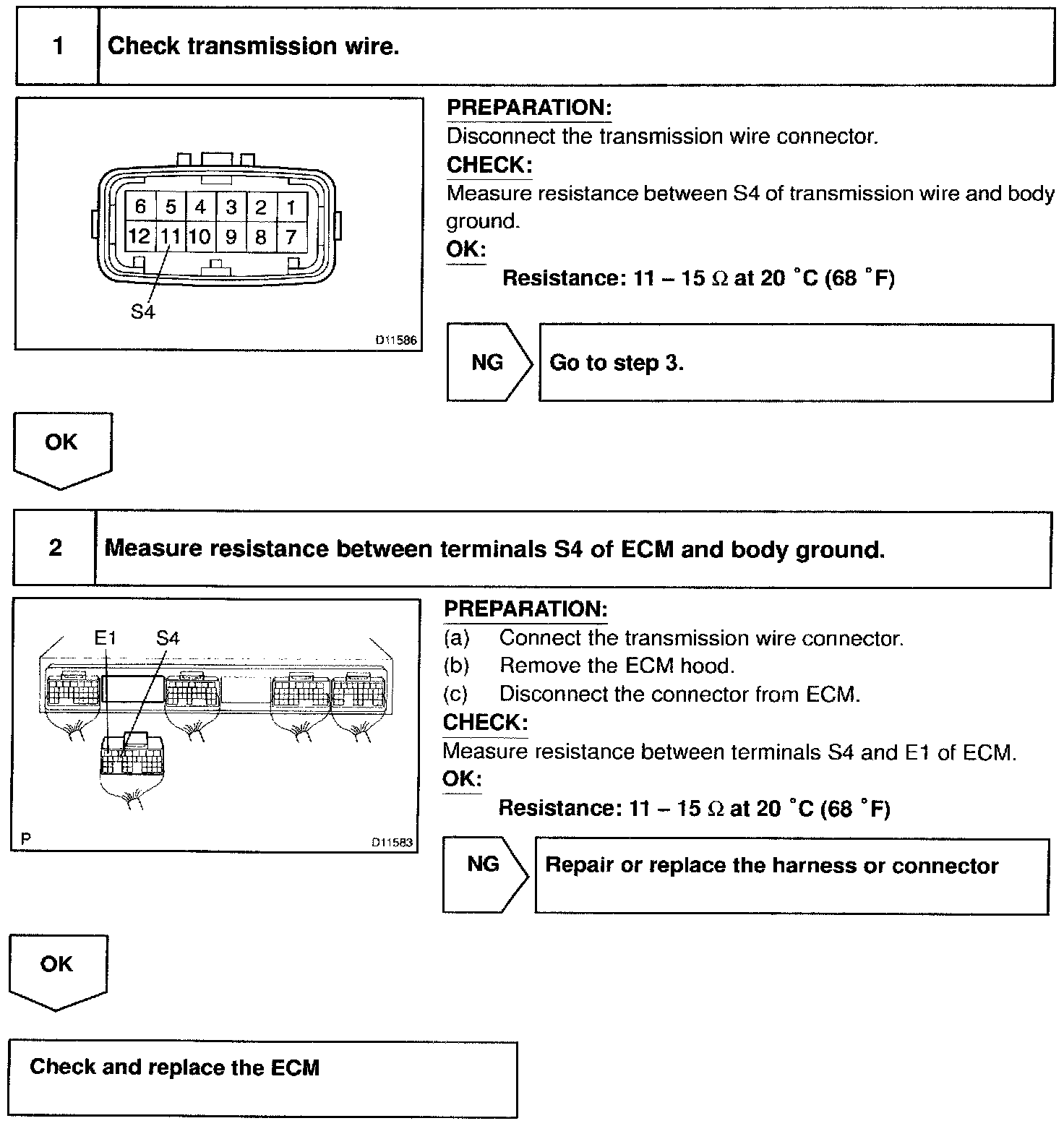

Step 1 - 2:

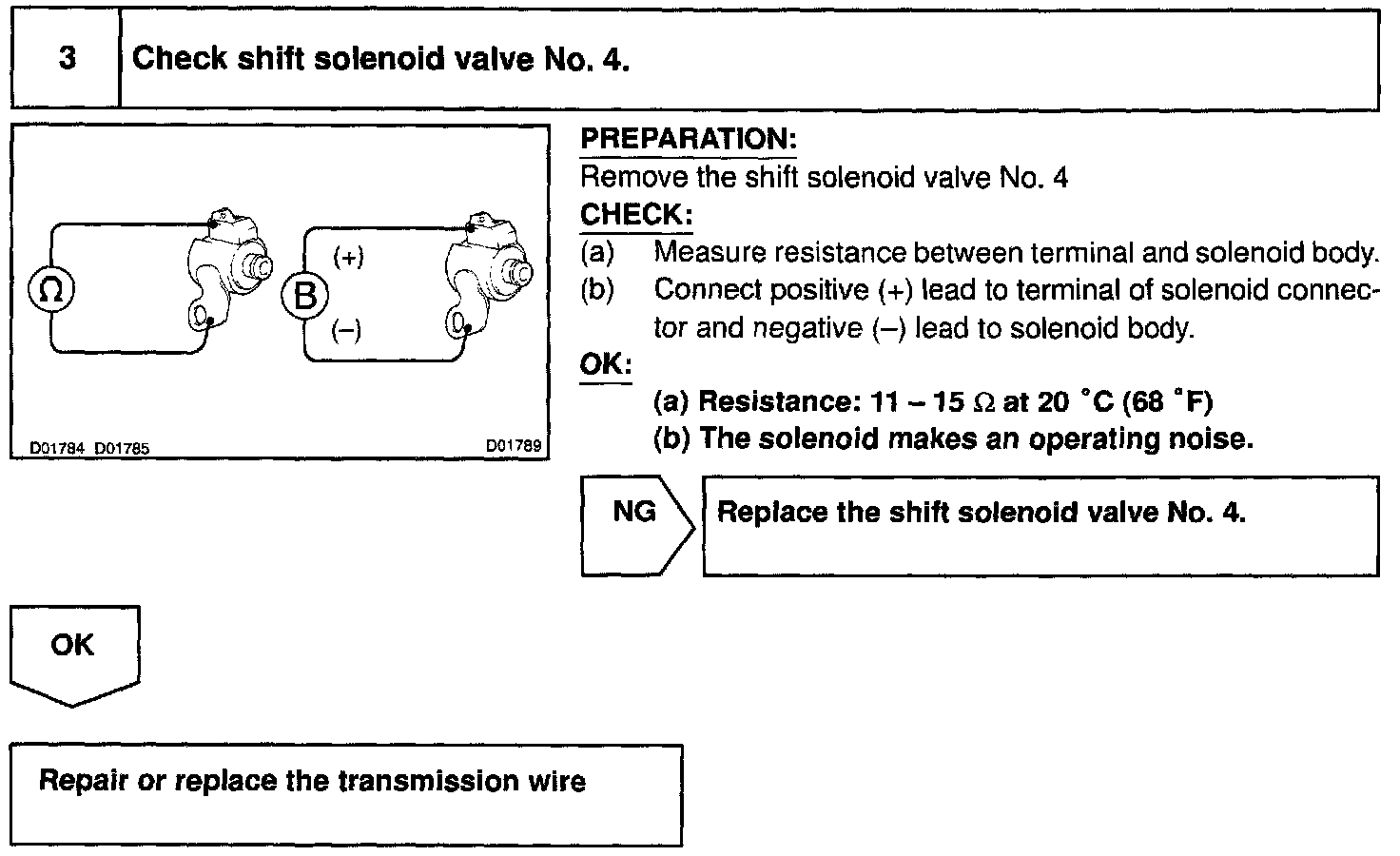

Step 3:

INSPECTION PROCEDURE
