Troubleshooting

DTC P0711 Transmission Fluid Temperature Sensor "A" Performance

CIRCUIT DESCRIPTION

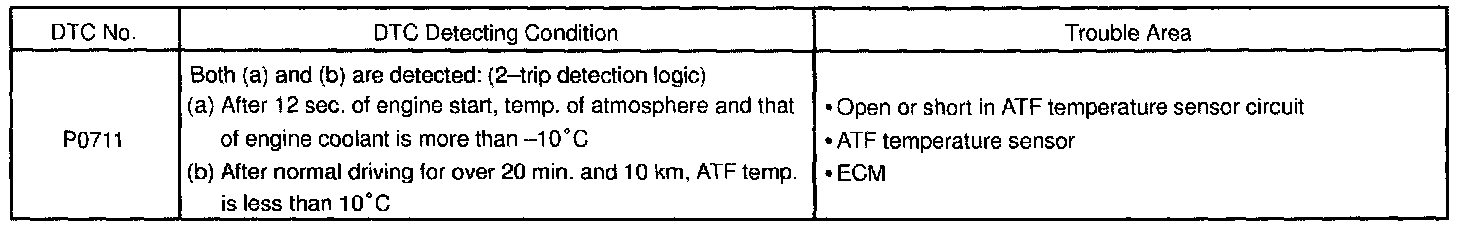

DTC Detecting Condition:

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

Wiring Diagram:

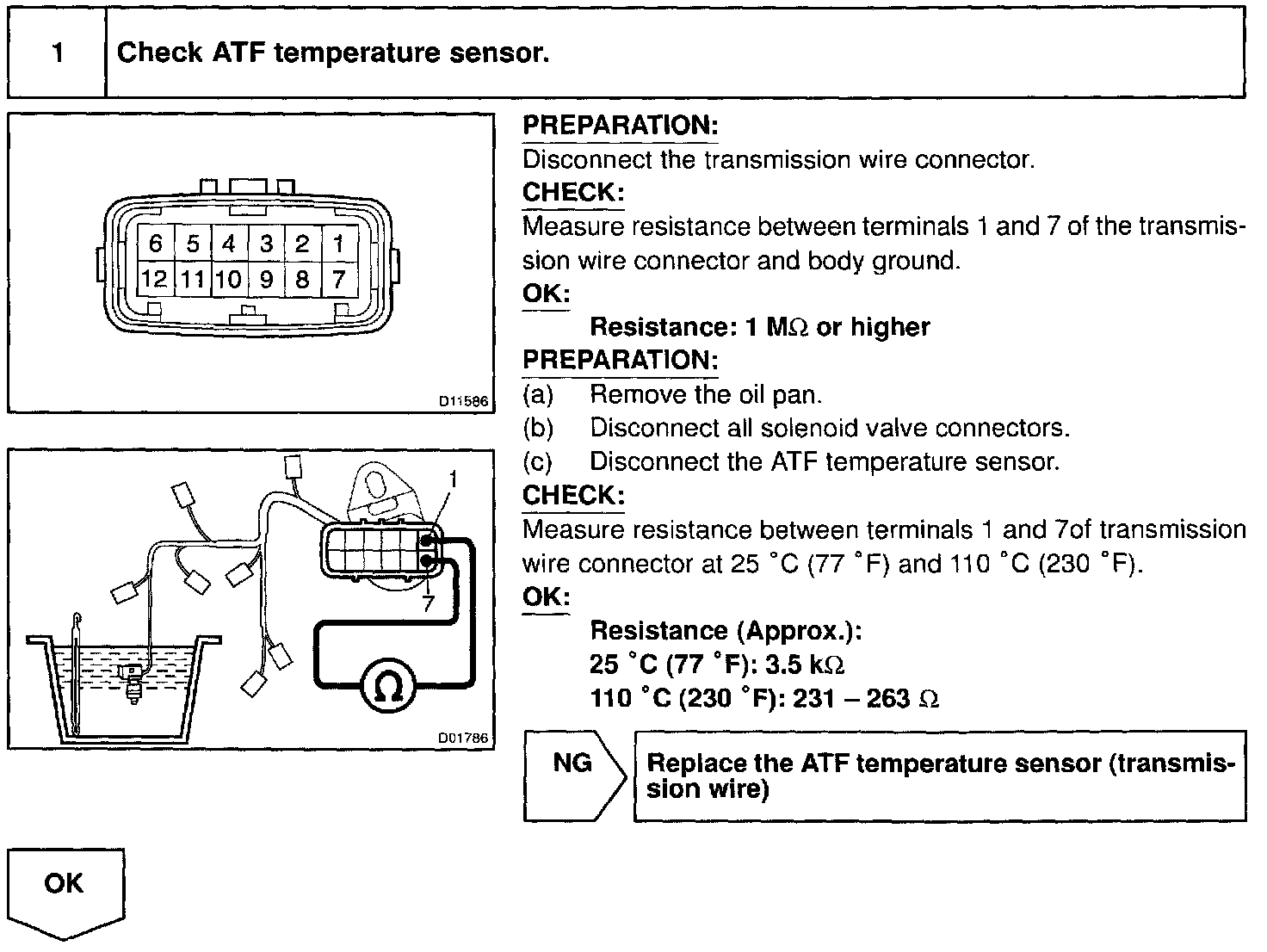

Step 1:

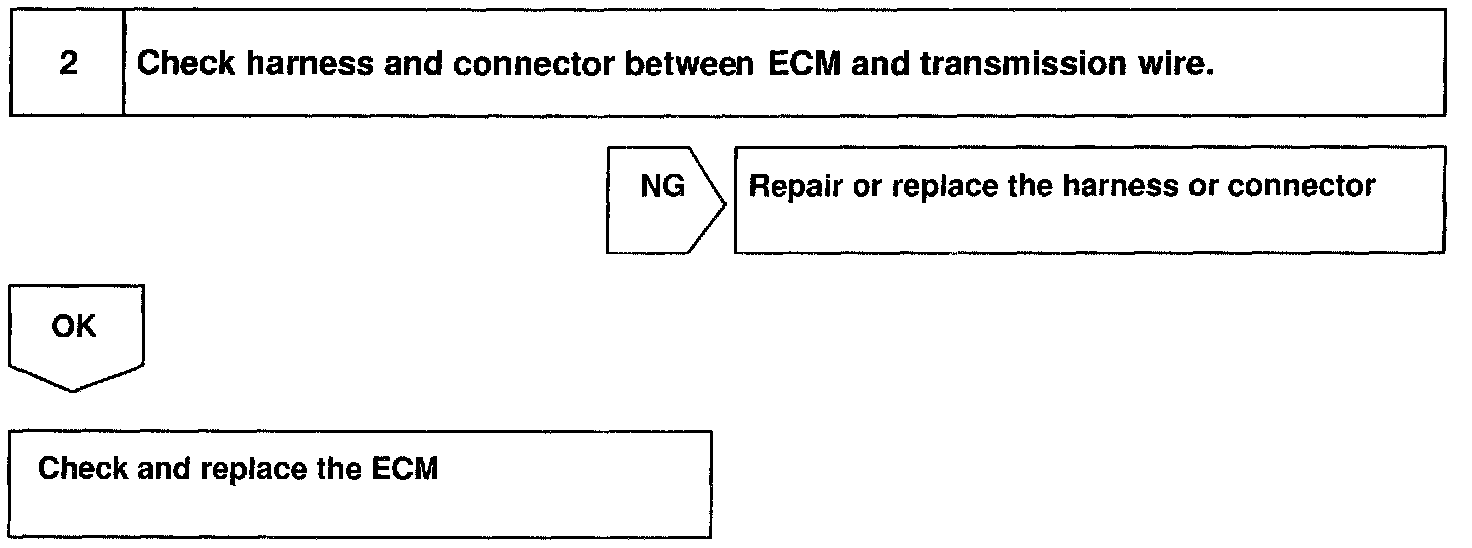

Step 2:

INSPECTION PROCEDURE
