Troubleshooting

DTC P0560 System Voltage

CIRCUIT DESCRIPTION

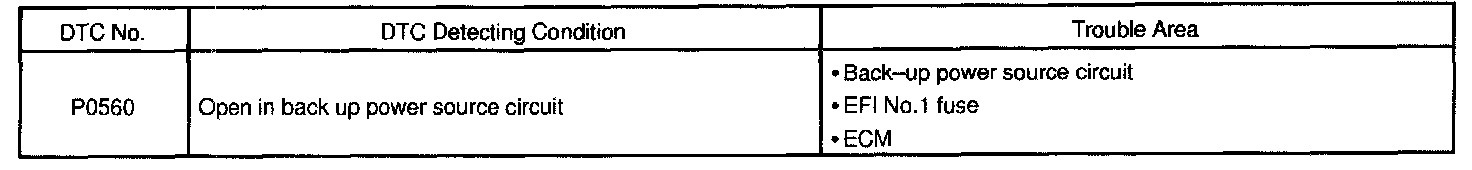

DTC Detcting Condition:

Battery positive voltage is supplied to terminal BATT of the ECM even when the ignition switch is OFF for use by the DTC memory and air-fuel ratio adaptive control value memory, etc.

HINT: If DTC P0560 appear, the ECM does not store another DTC.

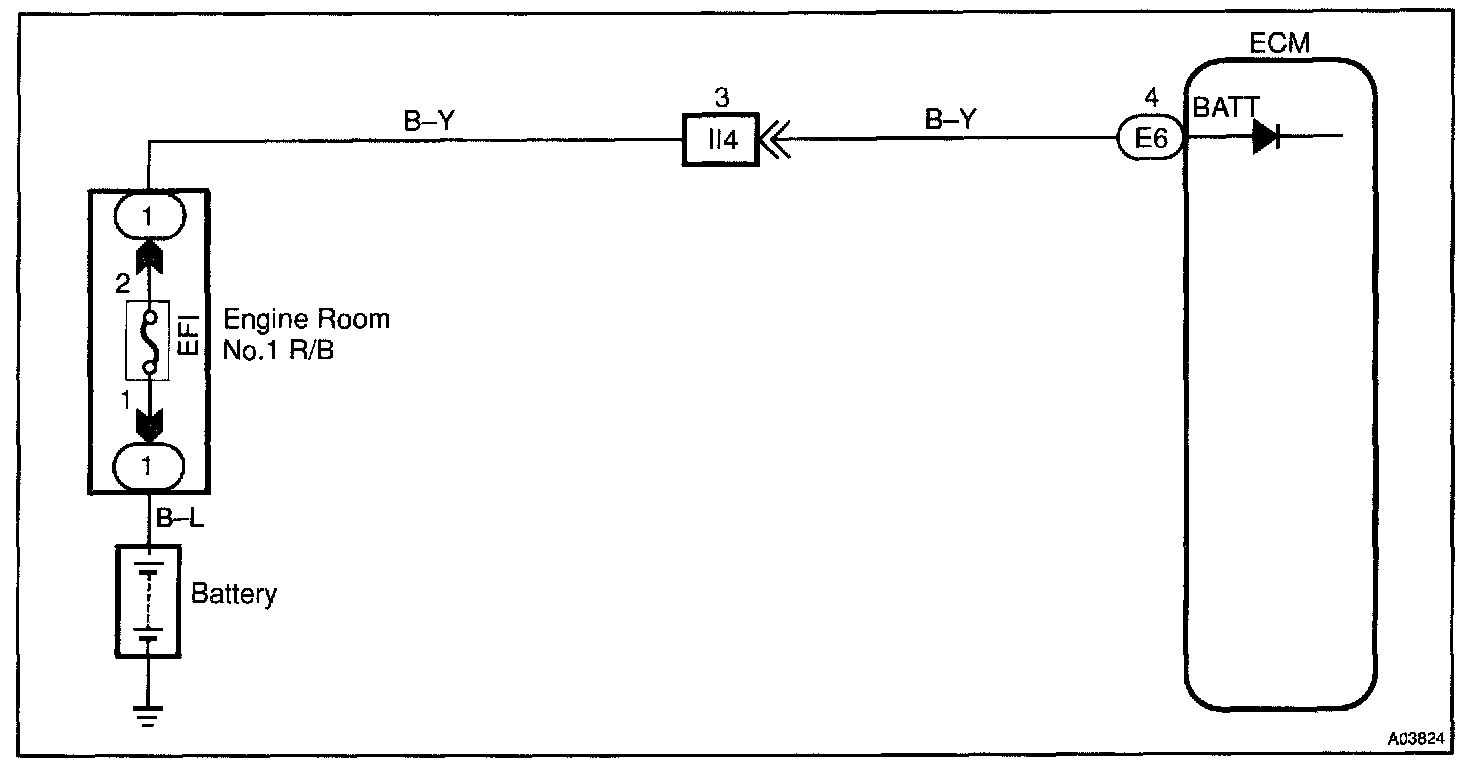

Wiring Diagram:

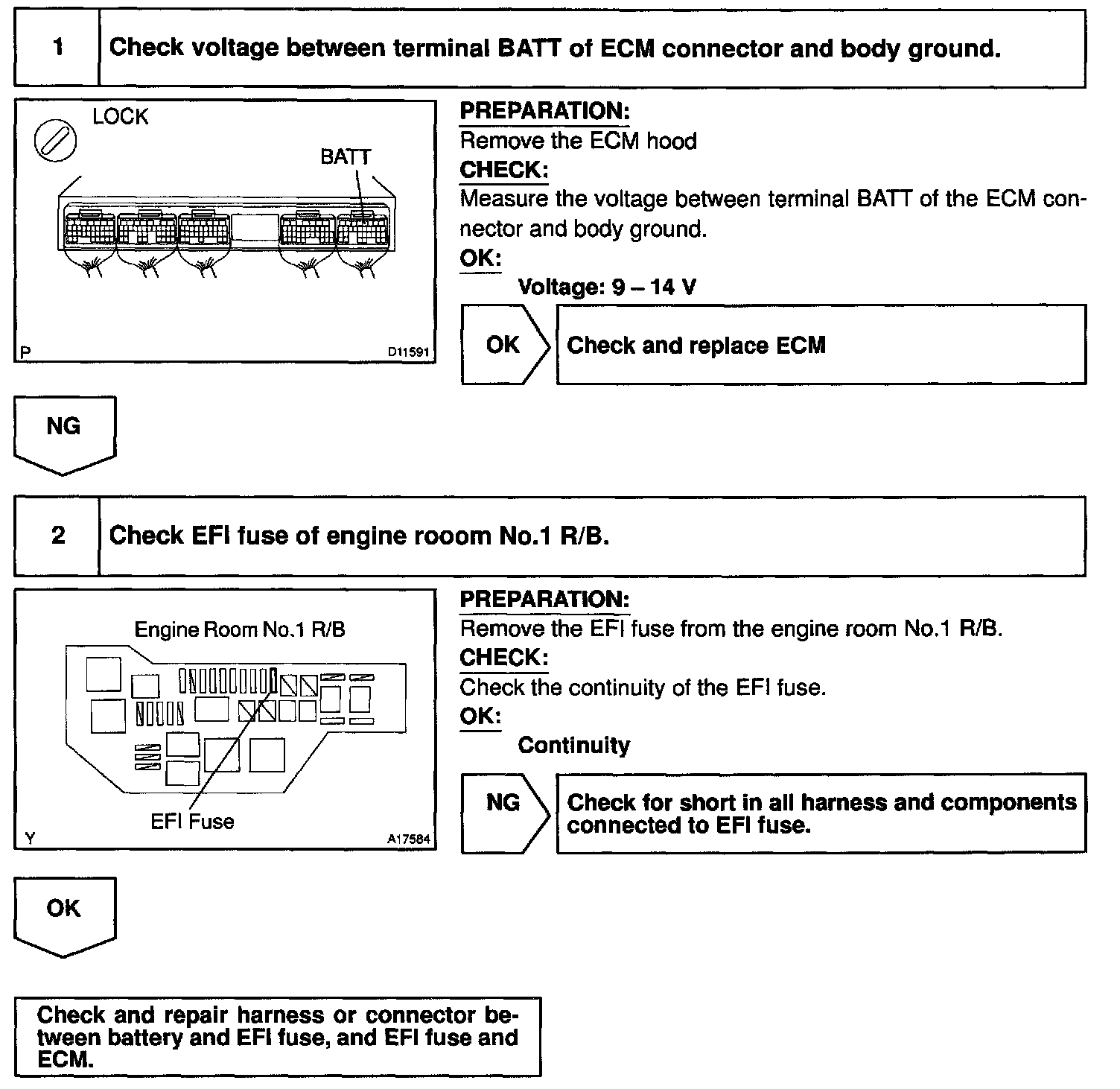

Step 1 - 2:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
