DTC P0330 Knock Sensor 2 Circuit Malfunction (Bank 2)

CIRCUIT DESCRIPTION

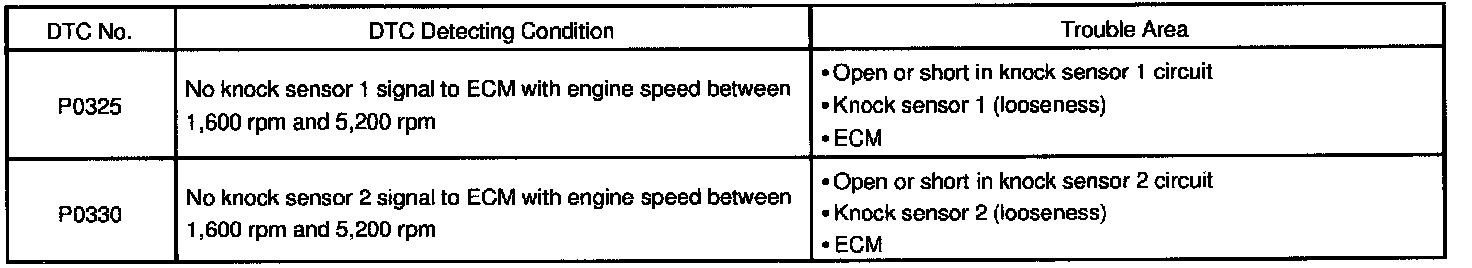

DTC Detecting Condition:

Each knock sensor is fitted to the right bank and left bank of the cylinder block to detect engine knocking.

This sensor contains a piezoelectric element which generates a voltage when it becomes deformed. The piezoelectric element sends a signal to the ECM, when the cylinder block vibrates due to knocking. If engine knocking occurs, ignition timing is retarded to suppress it.

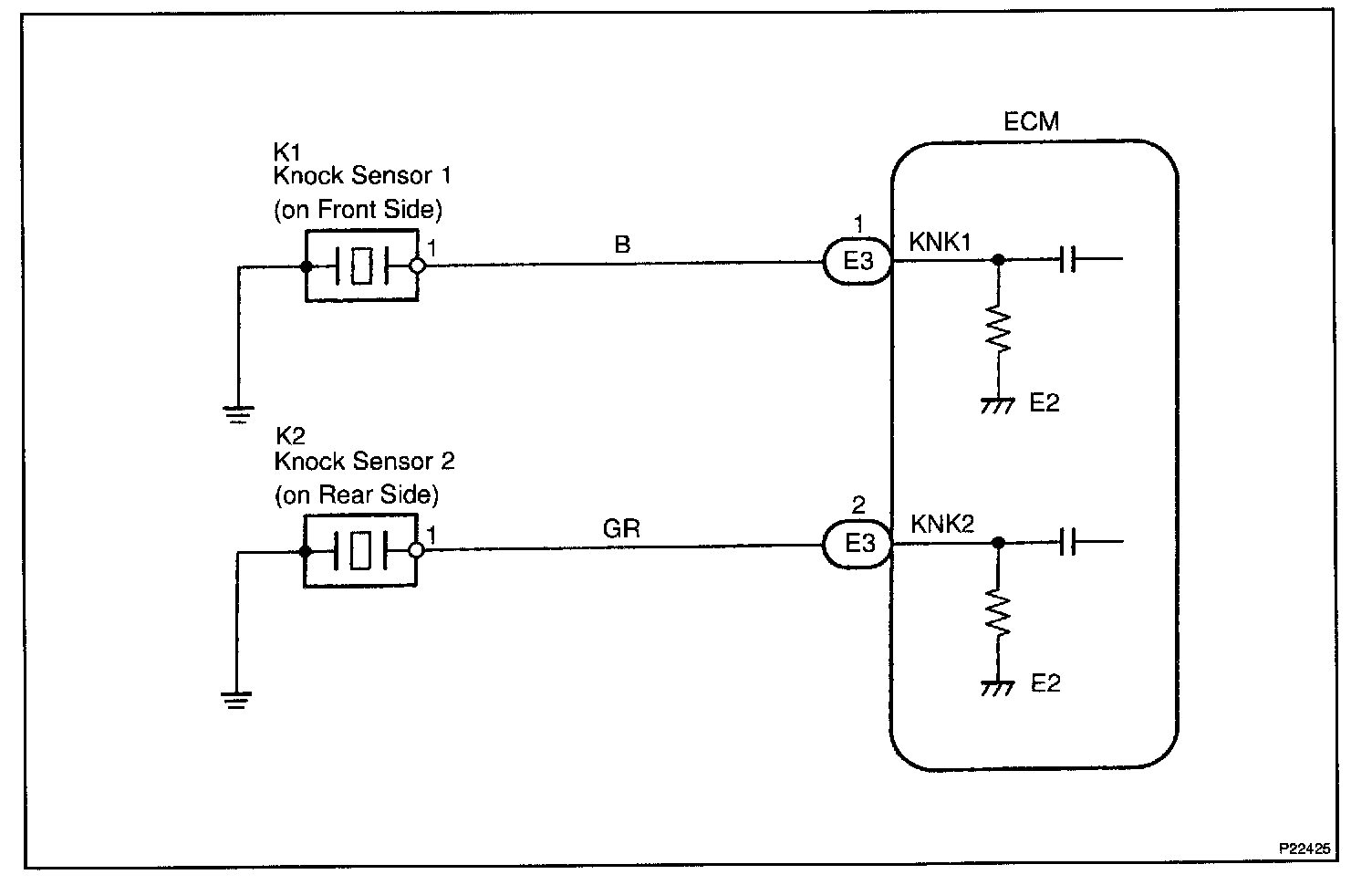

Wiring Diagram:

Step 1:

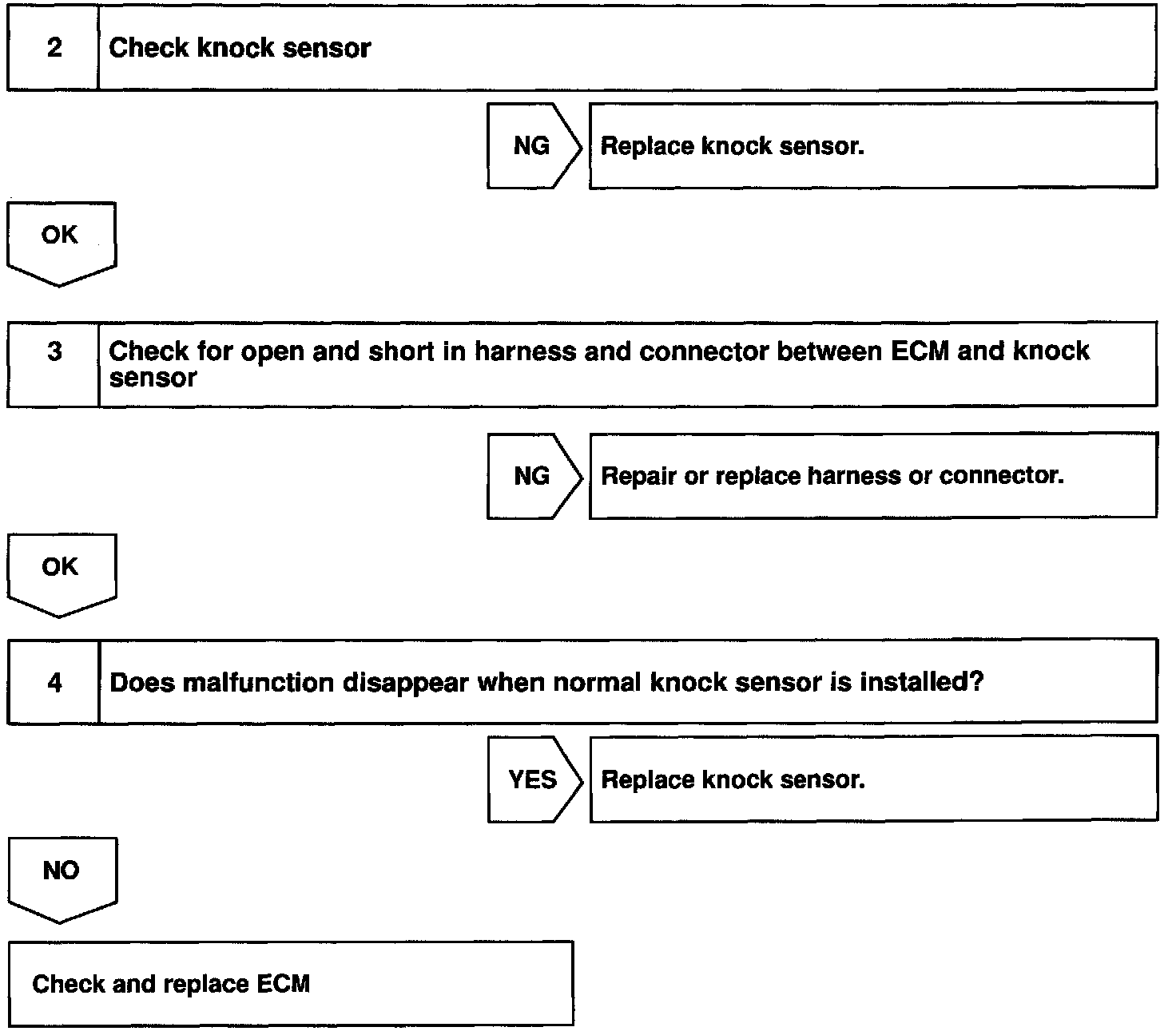

Step 2 - 4:

INSPECTION PROCEDURE

HINT:
- DTC P0325 is for the front side knock sensor circuit.
- DTC P0330 is for the rear side knock sensor circuit.
- Read freeze frame data using hand-held tester or OBD II scan tool. Because freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
