Troubleshooting

DTC P0011 Camshaft Position "A" - Timing Over - Actuator or System Performance (Bank 1)

CIRCUIT DESCRIPTION

HINT: This is the procedure of OCV (Oil Control Valve).

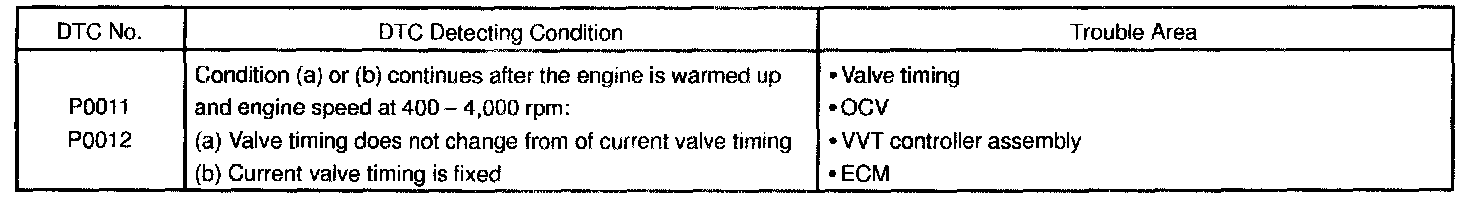

DTC Detecting Condition:

The VVT system controls the intake valve timing properly in response to driving condition.

The ECM controls the Oil Control Valve (OCV) to make the intake valve timing properly, and oil pressure controlled with OCV is supplied to the VVT controller, and then VVT controller changes relative position between the camshaft and the crankshaft.

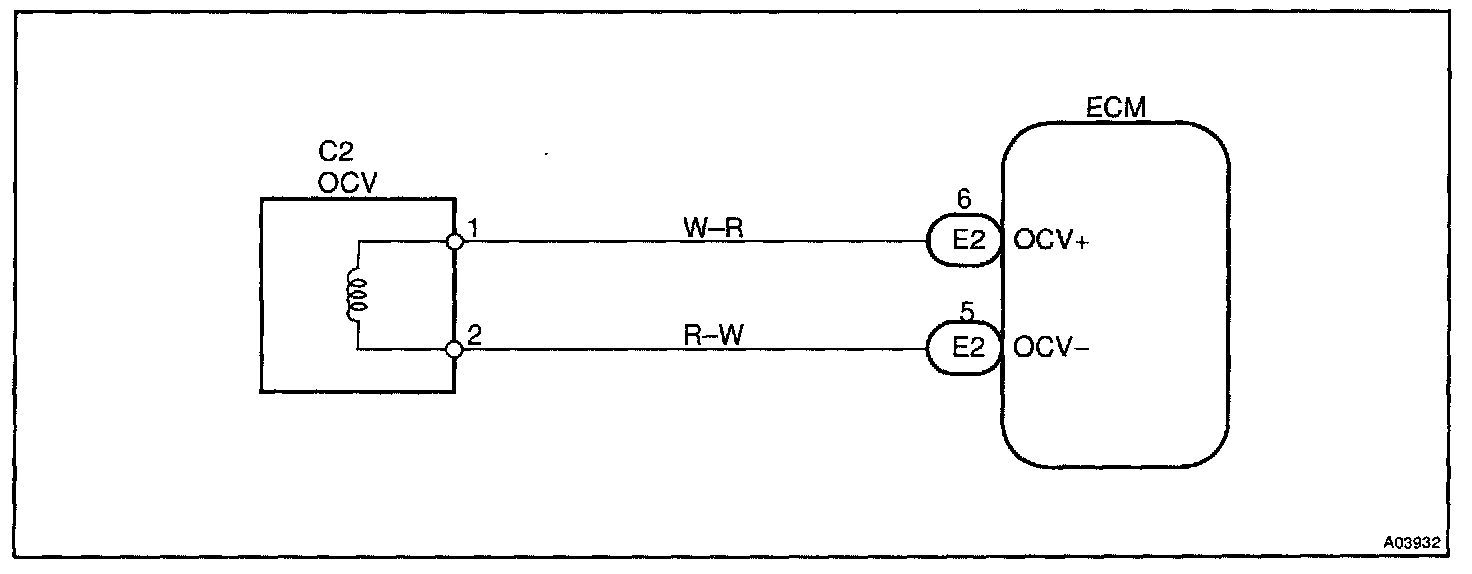

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool. Because freeze frame data records the engine conditions when a malfunction is detected When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

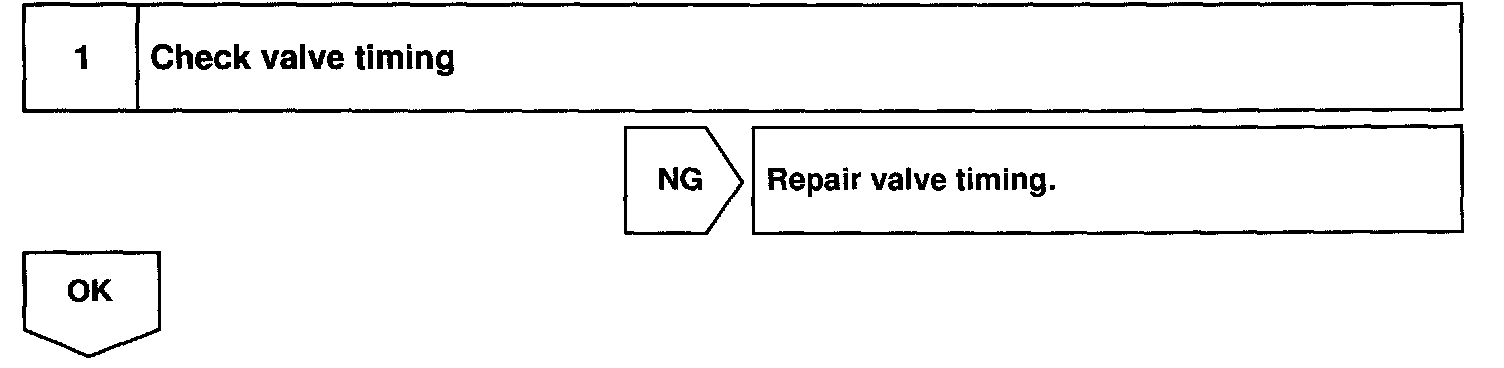

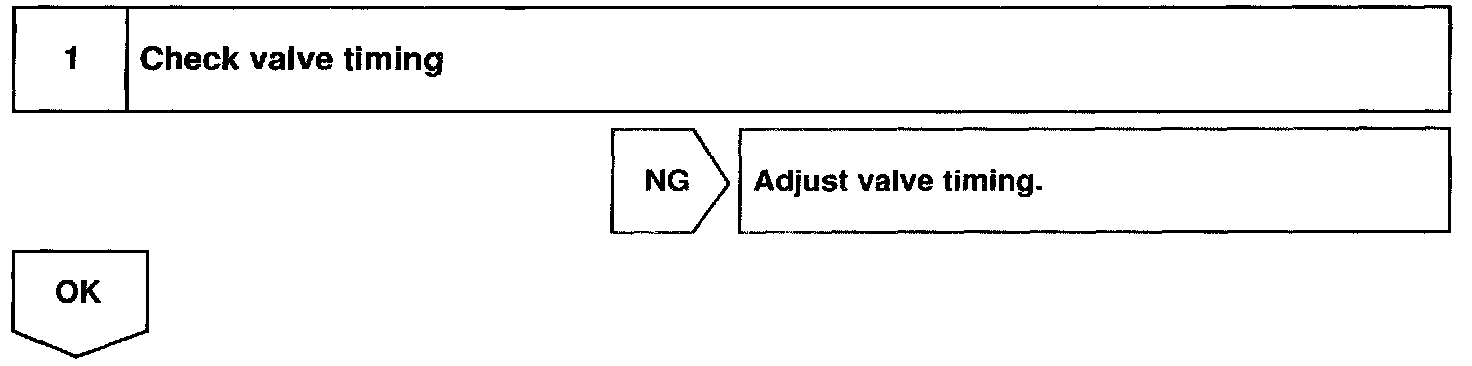

Step 1:

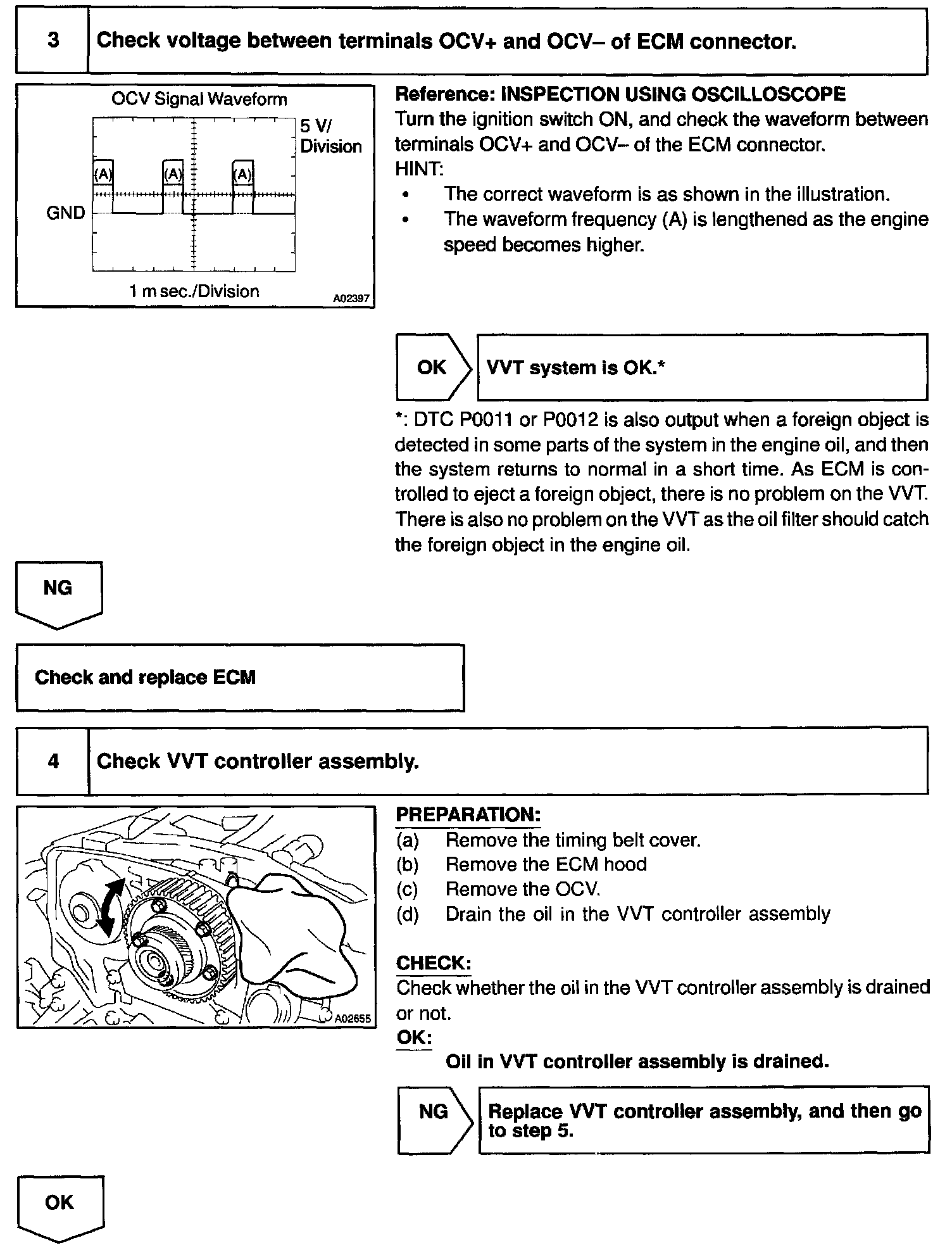

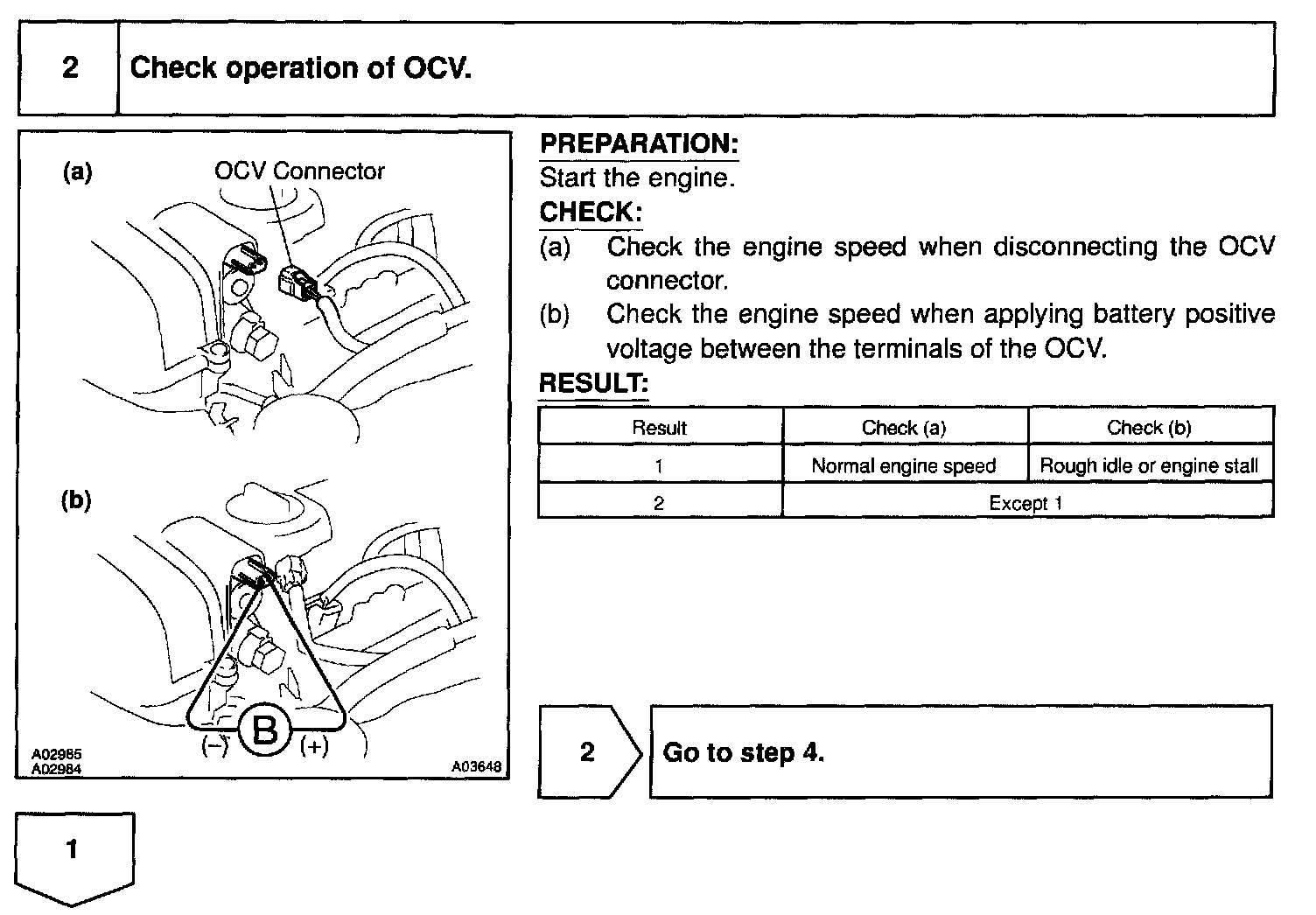

Step 2 - 3:

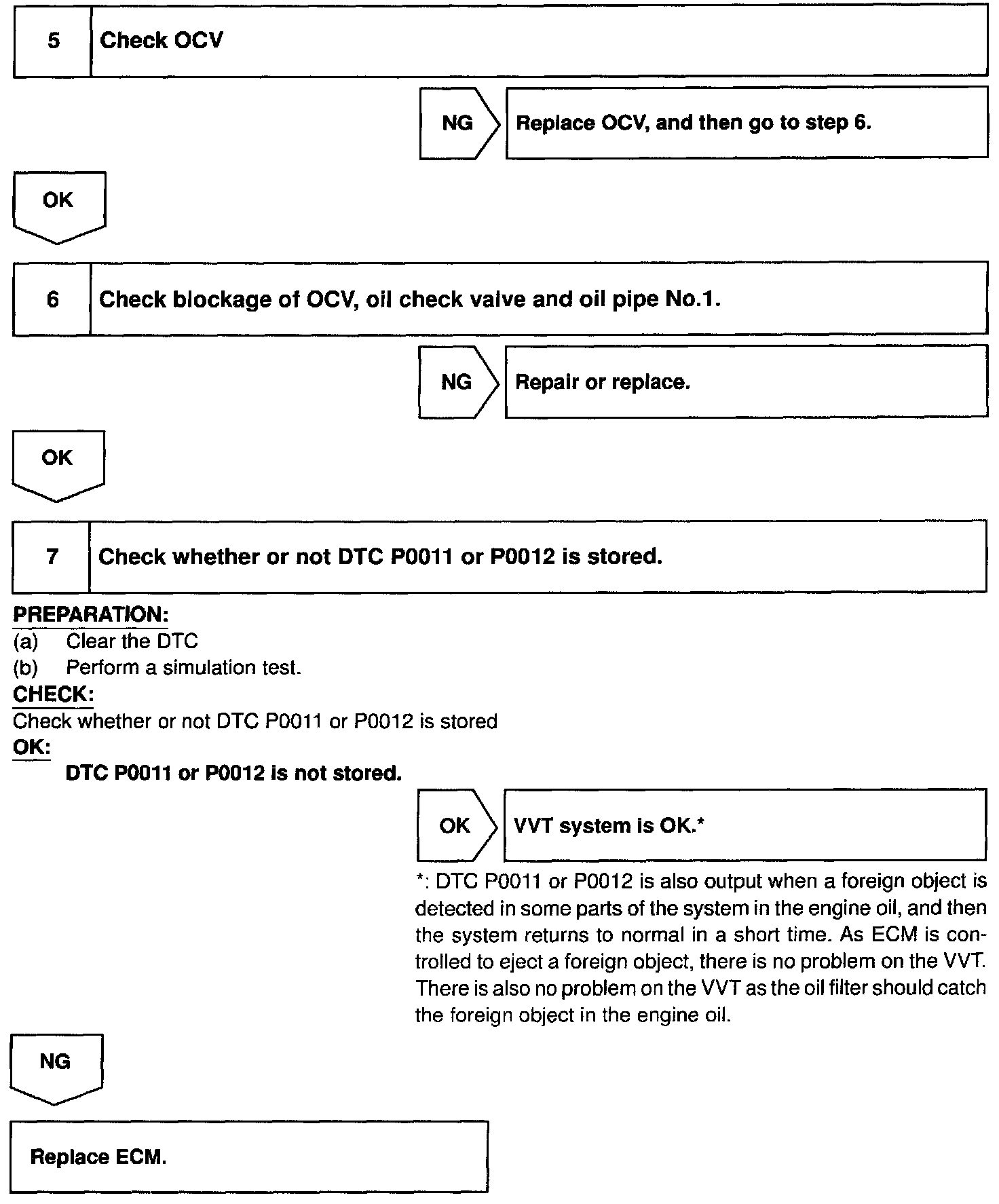

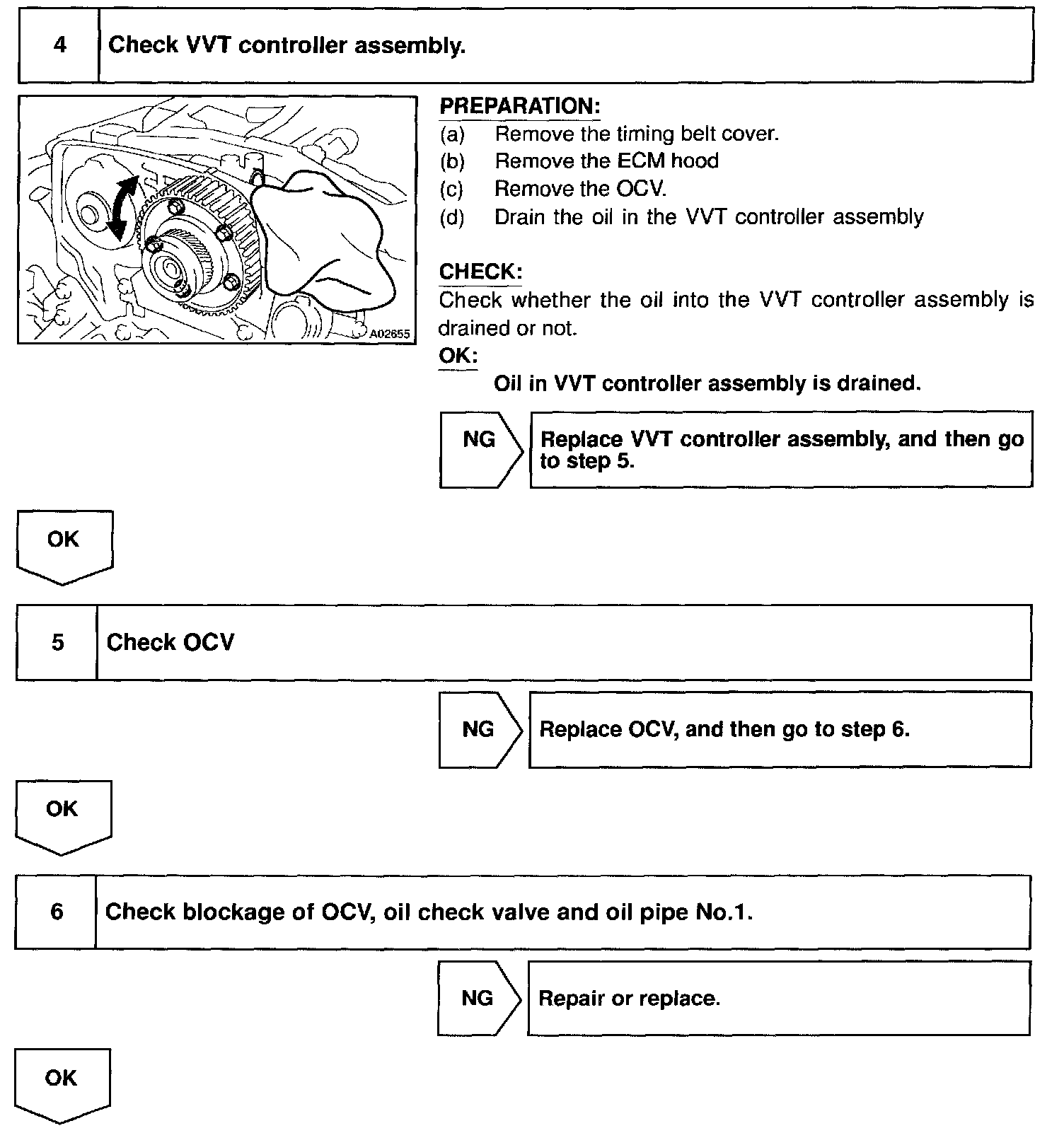

Step 4 - 6:

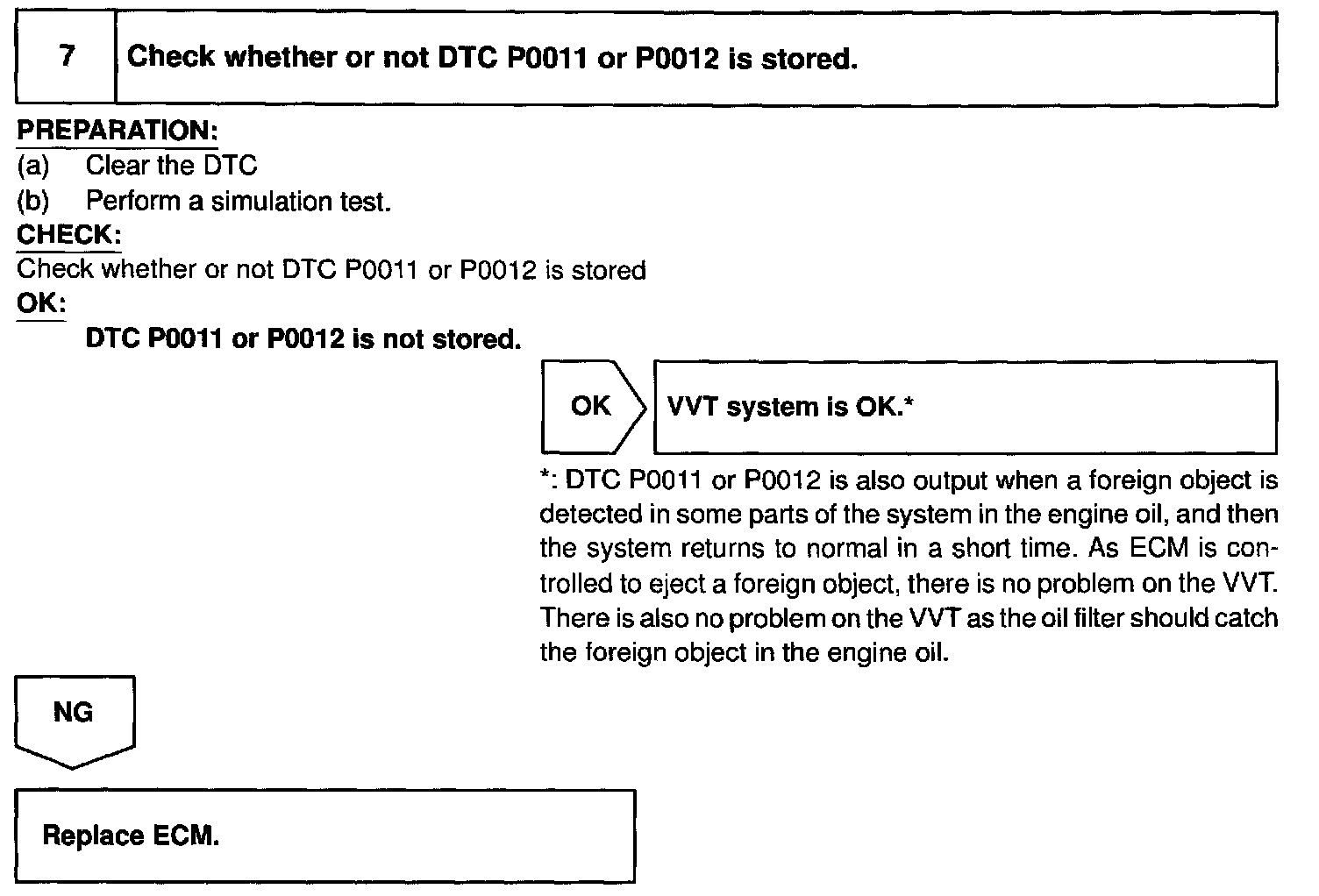

Step 7:

Hand-held tester

Step 1:

Step 2:

Step 3 - 4:

Step 5 - 7:

OBD II scan tool (excluding hand-held tester)
