DTC 93

DTC 93 Gateway ECU communication stop

CIRCUIT DESCRIPTION

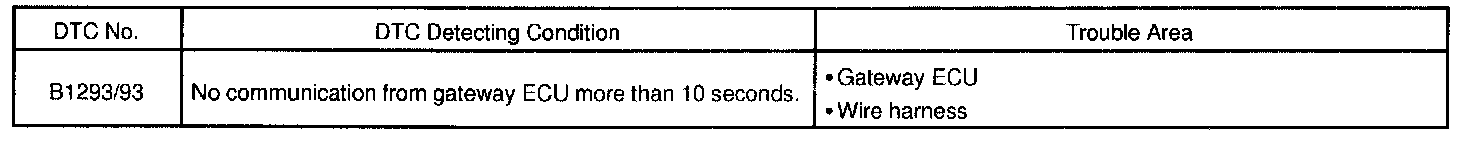

DTC Detecting Condition:

This DTC is output when communication stops between tilt and telescopic ECU, A/C amplifier and gateway ECU.

Wiring Diagram:

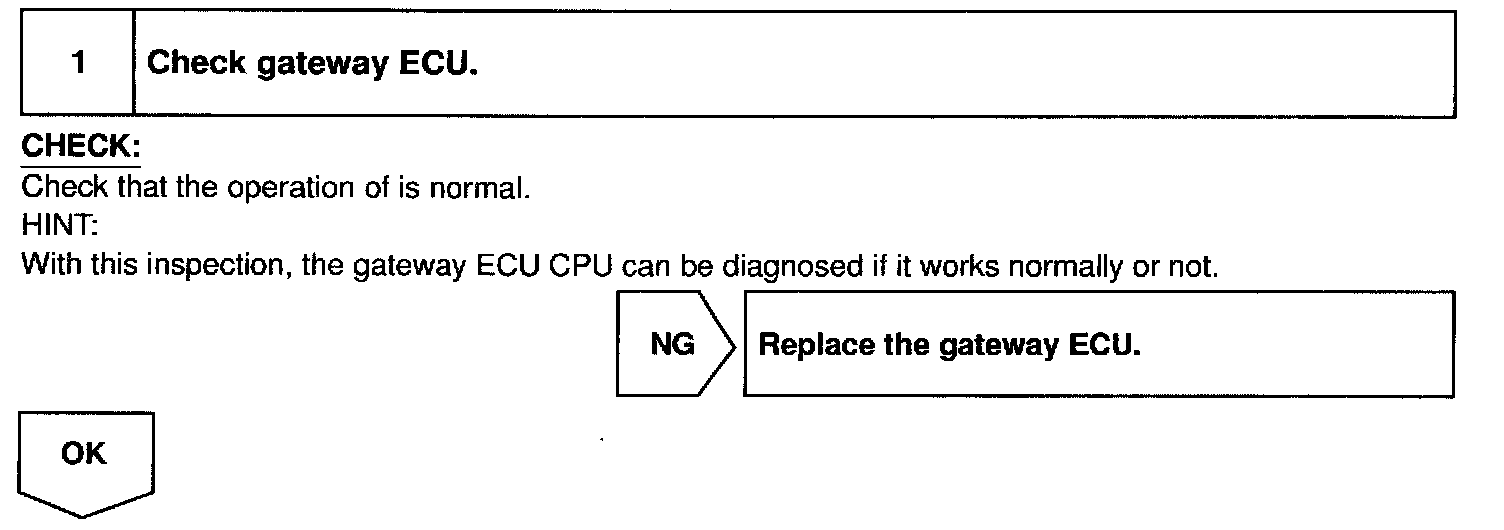

Step 1:

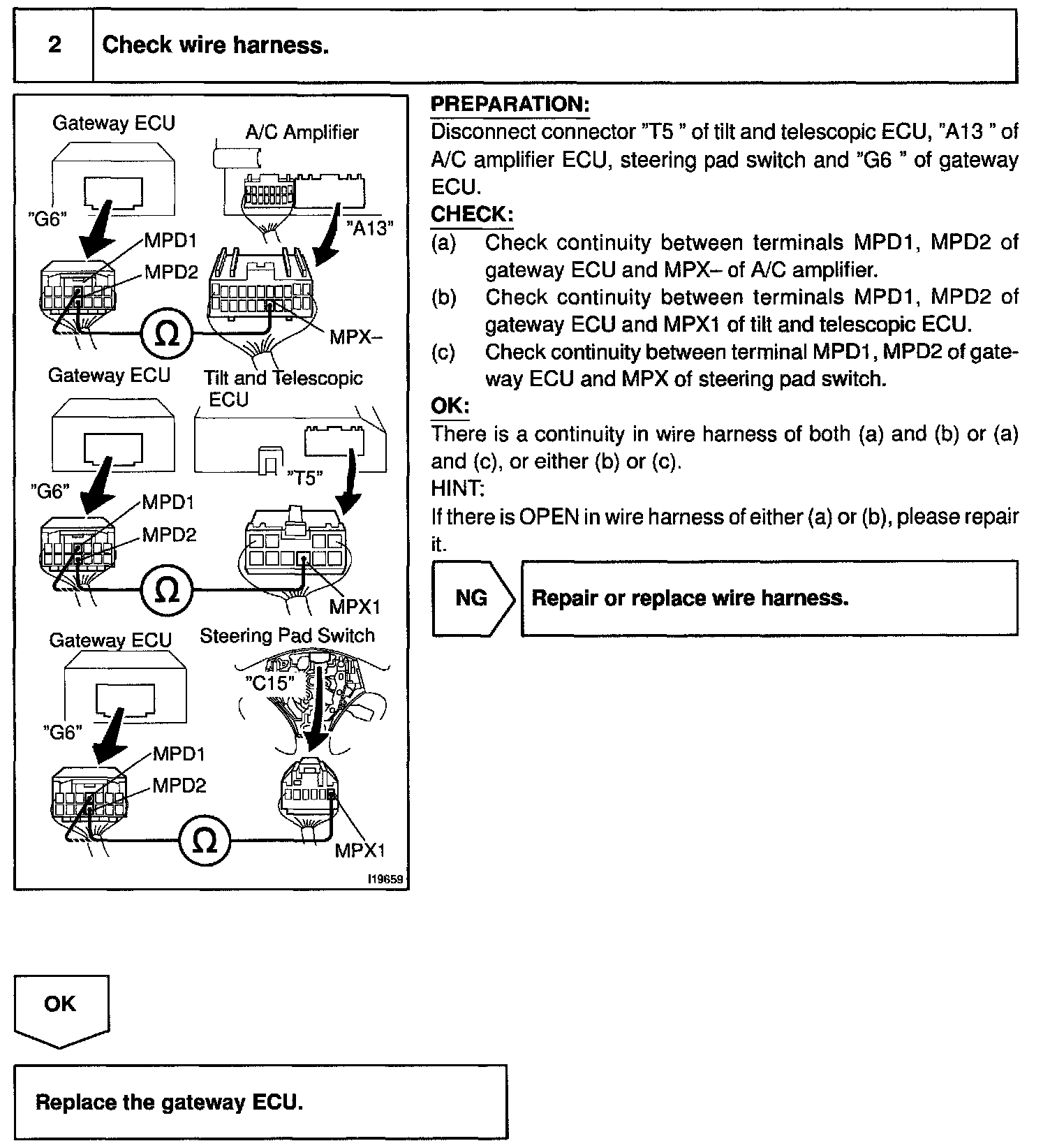

Step 2:

INSPECTION PROCEDURE
