DTC 18

DTC 18 Body ECU No. 2 communication stop

CIRCUIT DESCRIPTION

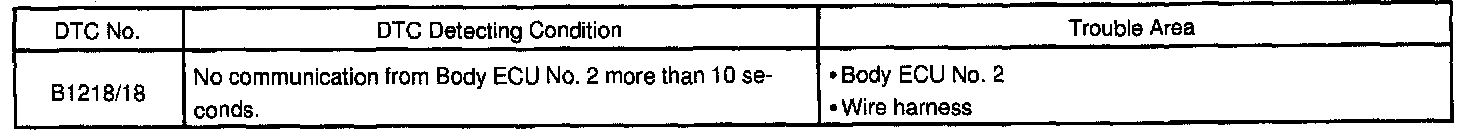

DTC Detecting Condition:

This DTC is output when communication stops between Body ECU No. 2 and Body ECU No. 1.

Wiring Diagram:

Wiring Diagram:

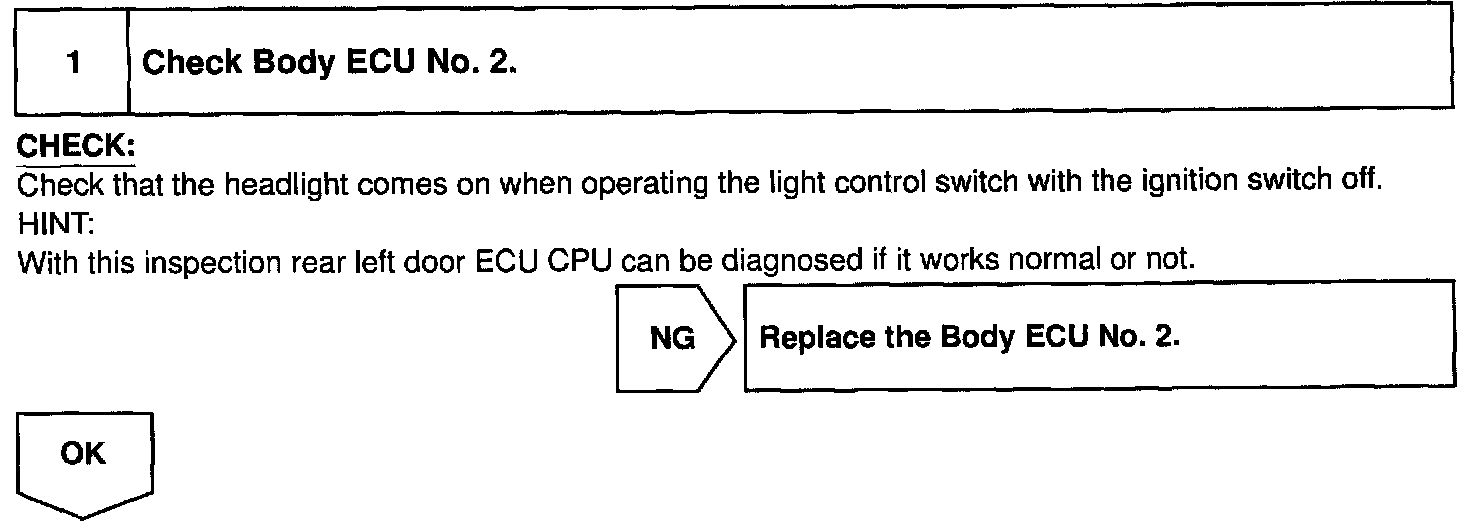

Step 1:

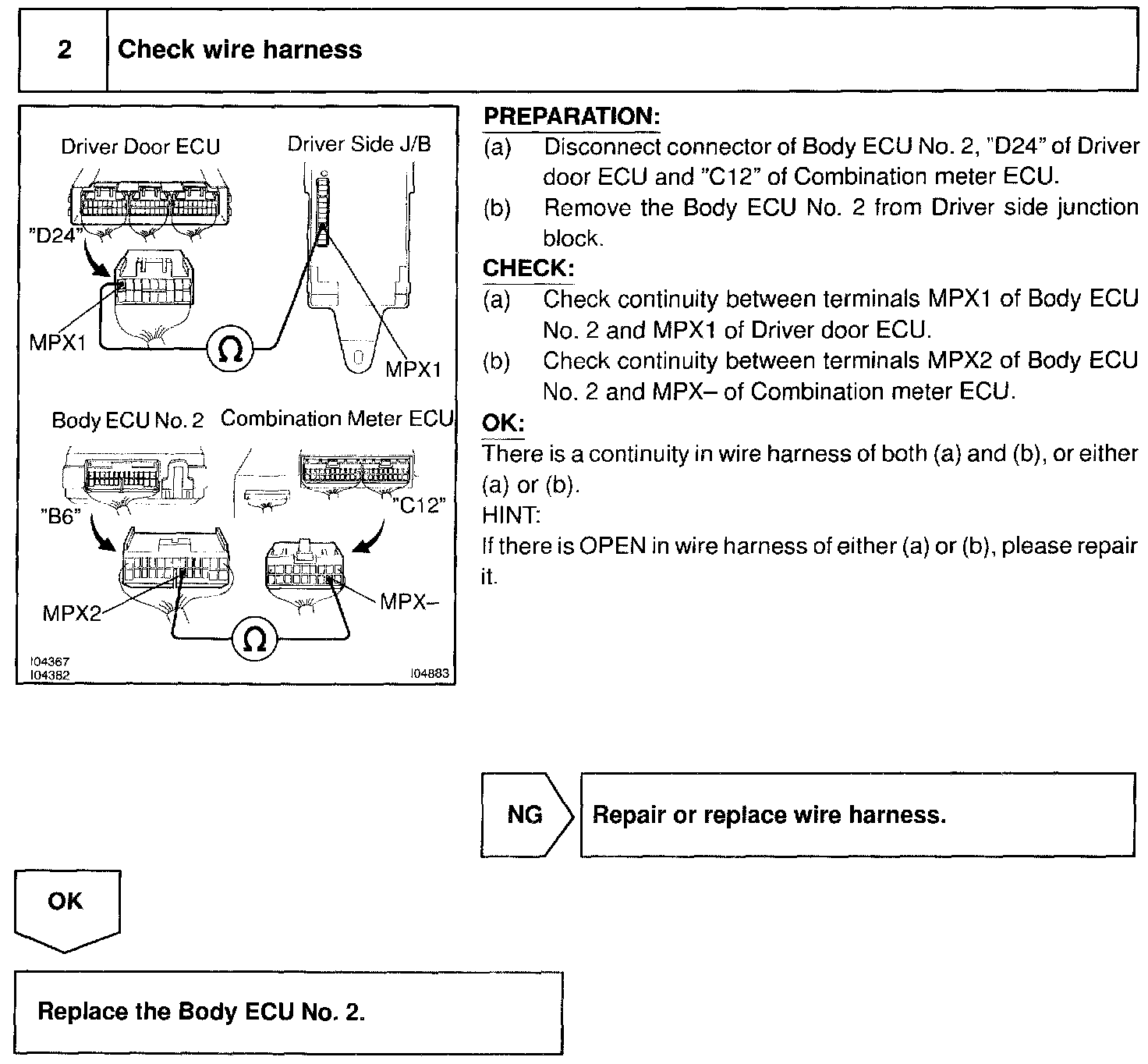

Step 2:

INSPECTION PROCEDURE
